Insize ISD-TM320 High Magnification Toolmaker Measuring Microscope, 50-500x Manification, Stage X/Y Axis Travel: 300x200mm. Z Axis Travel: 210mm (Professional Type)
SKU:Code: ISD-TM320
Item priced on application.
Request a PriceThe UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- magnification 50-500×
- brand Insize

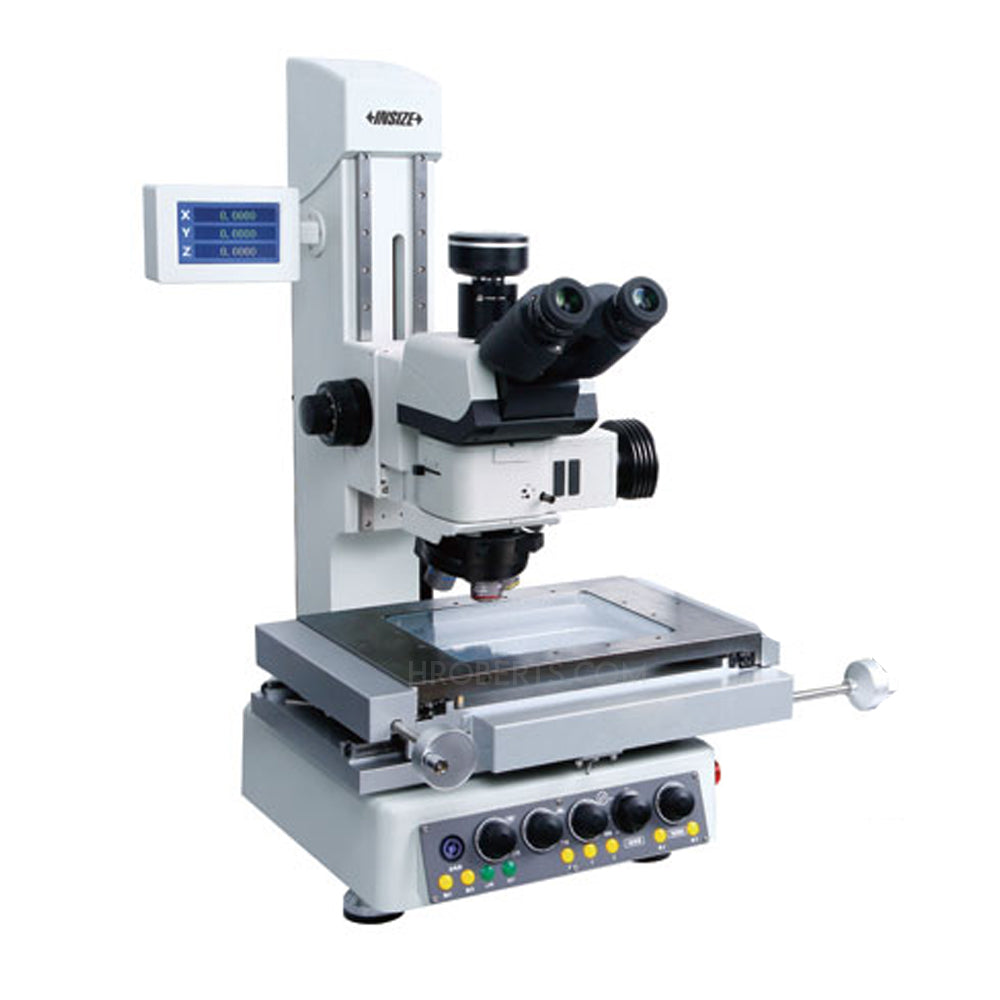

The INSIZE ISD-TM320 is a high-magnification toolmaker measuring microscope built for industrial-grade precision. It features an advanced infinite chromatic aberration correction optical system, motorized objective switching, and a motorized Z-axis with focus assist for flawless, sharp imaging. Its powerful illumination system includes high-density white LED lighting with excellent color rendering and supports bright field, polarized, dark field, and critical (Köhler) illumination, making it versatile for a wide range of measurement applications.
With a 300 × 200 mm X/Y travel stage (metal and glass options available), the ISD-TM320 can handle workpieces up to 30 kg. Precision linear scales provide 0.1 μm resolution, high accuracy, and repeatability. Optical magnification ranges from 50× to 500× (extendable to 1000× with an optional 100× objective), while digital magnification can reach up to 3000×. The system includes a 20 MP camera, adjustable-focus adapter, and professional measurement software for efficient inspection workflows. Despite its power, it is practical and robust, with a solid frame and easy operation for demanding industrial environments.
