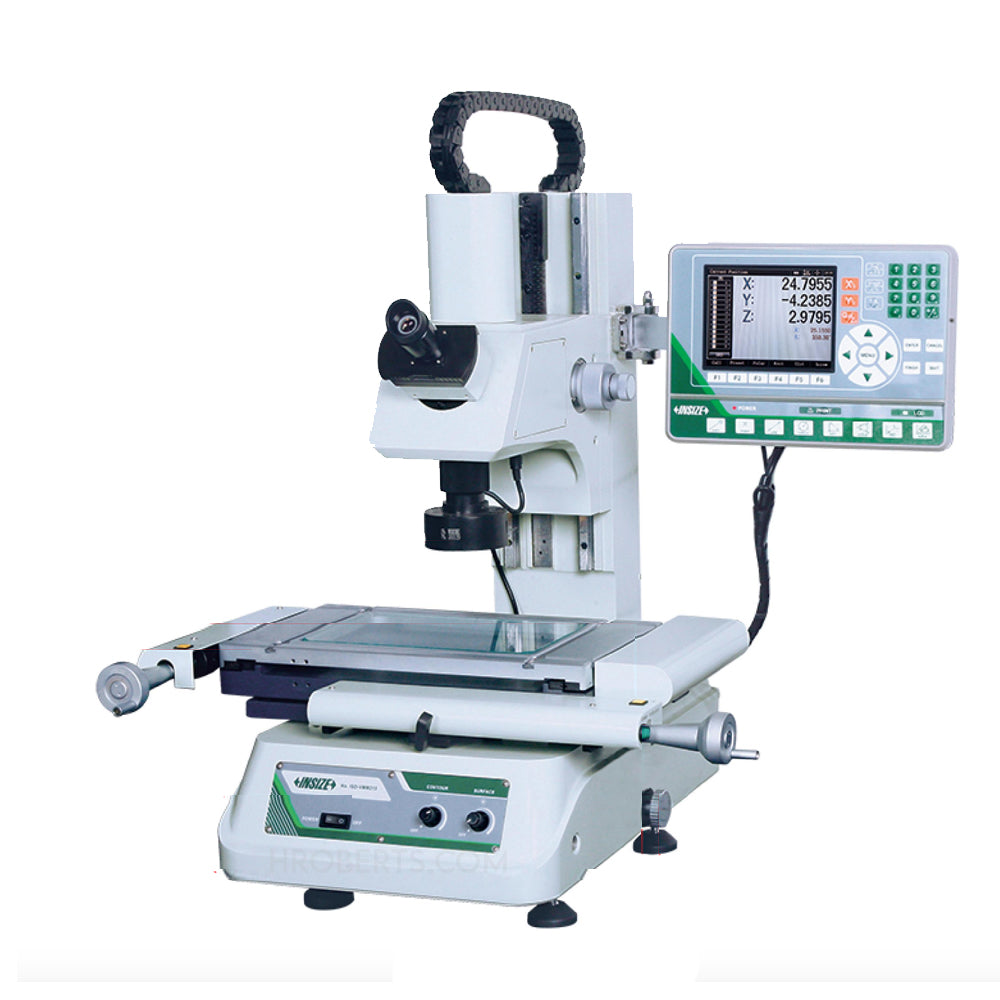

Insize ISD-VMM215D Toolmaker Microscope (Monocular), 30x Magnification, Stage X/Y Axis Travel: 200x100mm. Z Axis Travel: 150mm
SKU:Code: ISD-VMM215D
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- range 200×100mm
- resolution 0.5μm
- brand Insize
The Insize ISD-VMM Toolmaker Microscope is designed to inspect and measure machined parts in the X, Y & Z axis. Images can be output to PCs via RS232 cable with up to 114x image magnification on optional 19" monitor.
Features & Benefits
X/Y Axis Travel: 200x100mm.
Z Axis Travel: 150mm.
Metal Stage Size: 404x228mm.
Glass Stage Size: 260x160mm.
Resolution of X/Y/Z Axis: 0.005mm.
Accuraxy of X/Y Axis: ≤(2.5+L/100)μm (L is the measuring length in mm).
Repeatability: 2μm.
Camera: 1/3" colour CCD, 0.3M pixel.
Optical Magnification: 30x (with 3x objective).
Image Magnification: 114x (on optional 19" monitor).
Illumination: Surface and contour with adjustable LED.
Max Weight of Workpiece: 25kg.
Power Supply: 100V-240V, 50/60Hz.
Operating System: Windows 7/8/10.
Drive Method: Manual.
Dimension (LxWxH): 540x667x850mm.
Weight: 110kg.
Included: 1x main unit, 1x video card with dongle, 1x software disc, 1x calibration glass chart, 1x demo sample, 1x foot switch, 3x objective.
