Insize ISF-DF50A Digital Force Gauge 0-50N High Accuracy - ISF-DF Series
SKU:Code: ISF-DF50A
Sale
Sold out
Regular price
£386.89
Save: 10%
Sold out
Sale price
£386.89
Regular price
£429.88
Excl. VAT

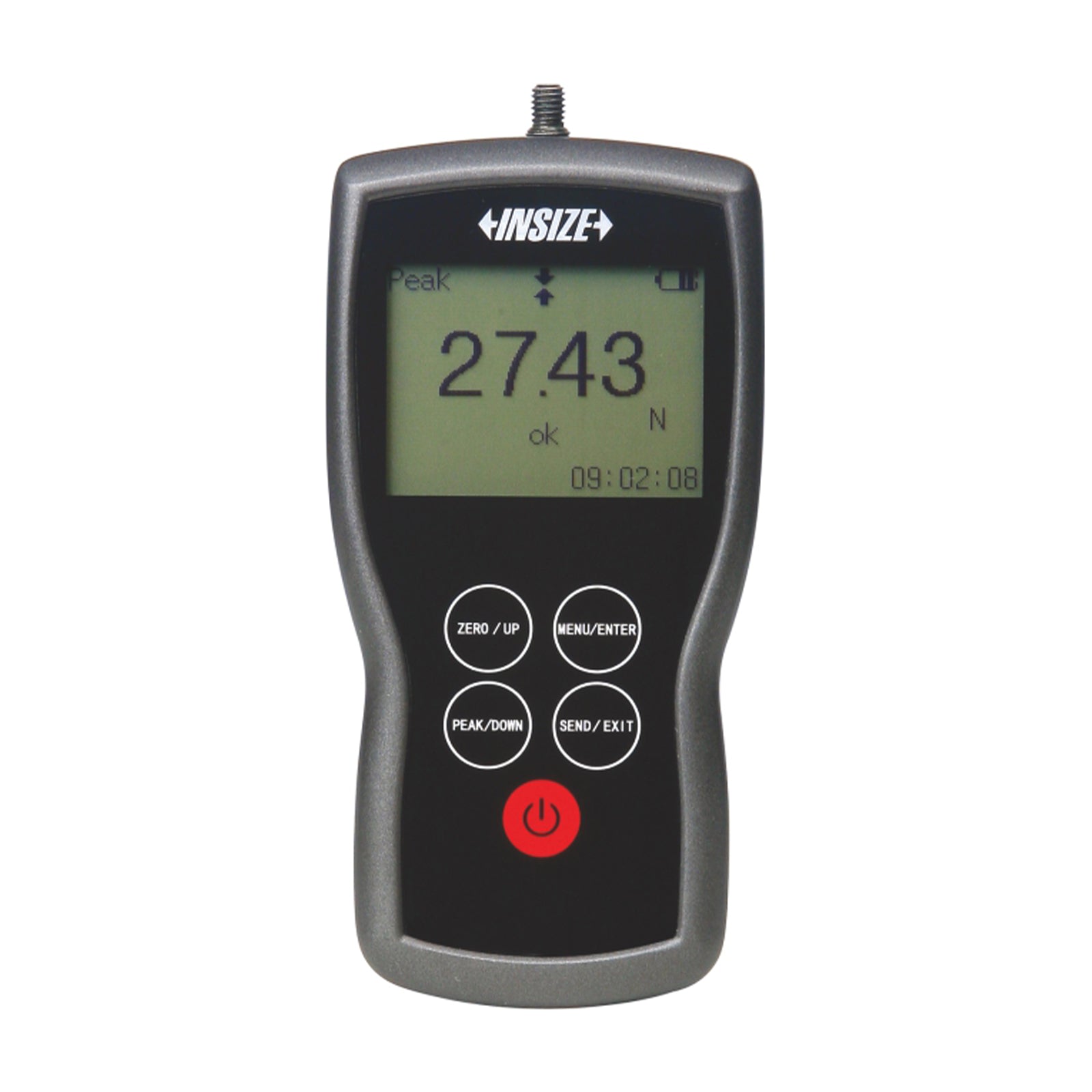

The Insize ISD-DF Digital Force Gauge is high accuracy with a resolution from just 0.0005mm and accuracy of 0.2% of load capacity. It utilises a pull clamp and various push tips (included) to measure the total force exerted abd contains an easy-to-read LCD display with backlight that can be turned 180°.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 0-50 N
- display type Digital
- resolution 0.005N
- measuring units N / gf / kgf / ozf / lbf
- brand Insize
description
description
- Supplied with AC/DC adapter, USB cable and software, flat push tip, V push tip, knife-edge push tip, point push tip, pull clamp and extension rod.
- Measuring mode: tracking, peak (max.), low and high limits with judgement.
- Built-in rechargeable battery power supply.
- Push and pull test.
- Measures in mN, N, gf, kgf, ozf, lbf.
- 1000 memories.
- Automatic power off.
- Tough metal casing with touch buttons.
- LCD display with backlight, can turn 180°.
- Overload alarm.
