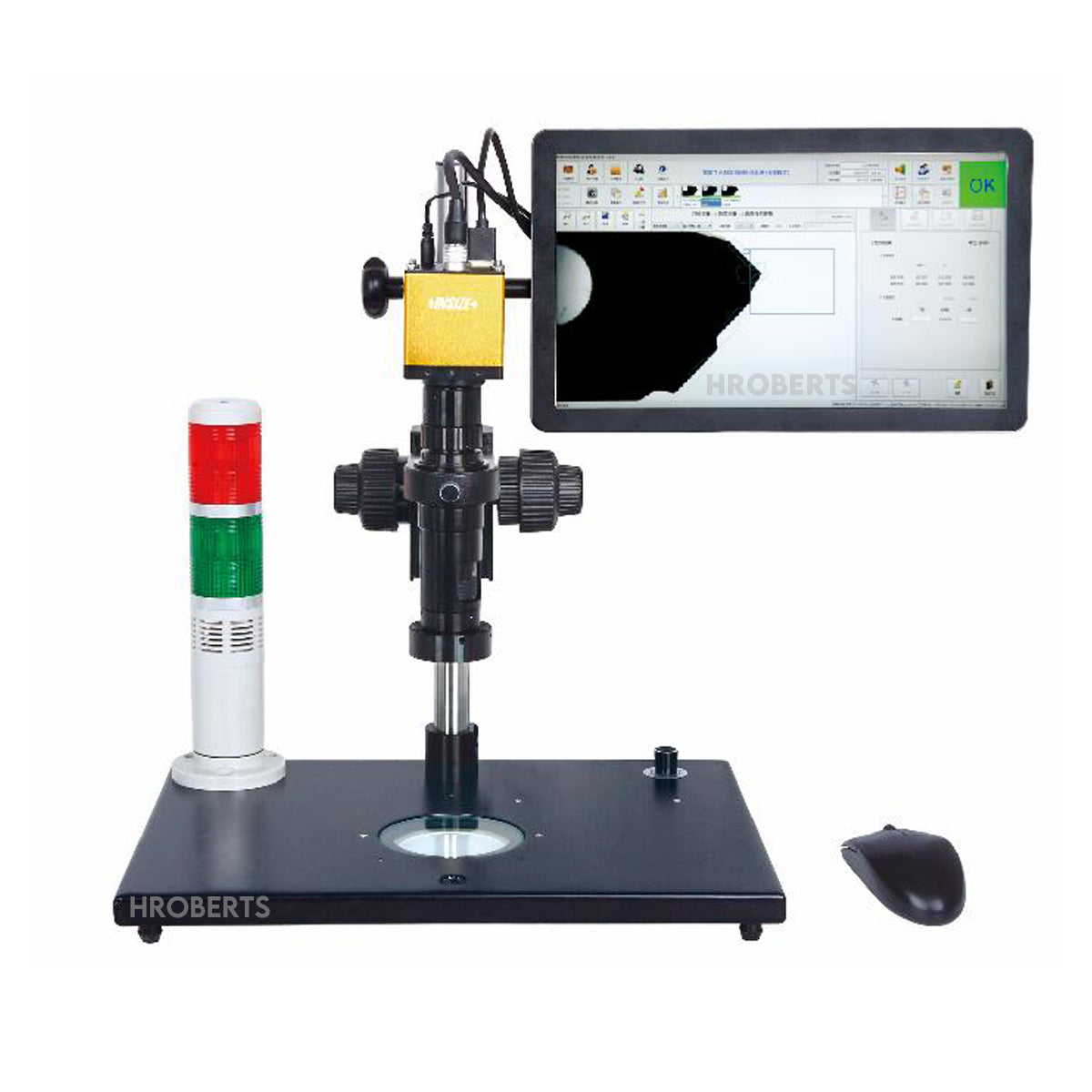

Insize ISM-DL400 Digital Measuring Microscope, Magnification 15-100x (With Display)
SKU:Code: ISM-DL400
Sale
Sold out
Regular price
£3,995.15
Save: 10%
Sold out
Sale price
£3,995.15
Regular price
£4,439.05
Excl. VAT
The Insize ISM-DL400 Smart Measuring Microscope can automatically identify and locate workpieces regardless of position and direction. It contains built-in software, PLC control input and output interface which can automatically cakculate, store test results and export to Excel.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- resolution 1920x1080 pixels
- remarks 2M Pixel
- magnification 15-100x
- brand Insize
description
description
- Up to 100x magnification.
- Linux 3.10 operating system.
- 1920x1080 pixel resolution camera with 60fps frame rate.
- Various camera functions including surface defect detection, dimension measurement, burr detection, contour matching, character recognition, color detection, thread measurement, object counting.
- Automatically identify different workpieces.
- Automatically locate workpieces regardless of position and direction.
- Includes multiple detection tools.
- Supplied with main unit, 0.5x camera adapter. 1x auxiliary objective, 1x calibration plate, 1x 16GB USB flash disc, 1x white/black plate, 1x HDMI cable, 3x power adapters.
