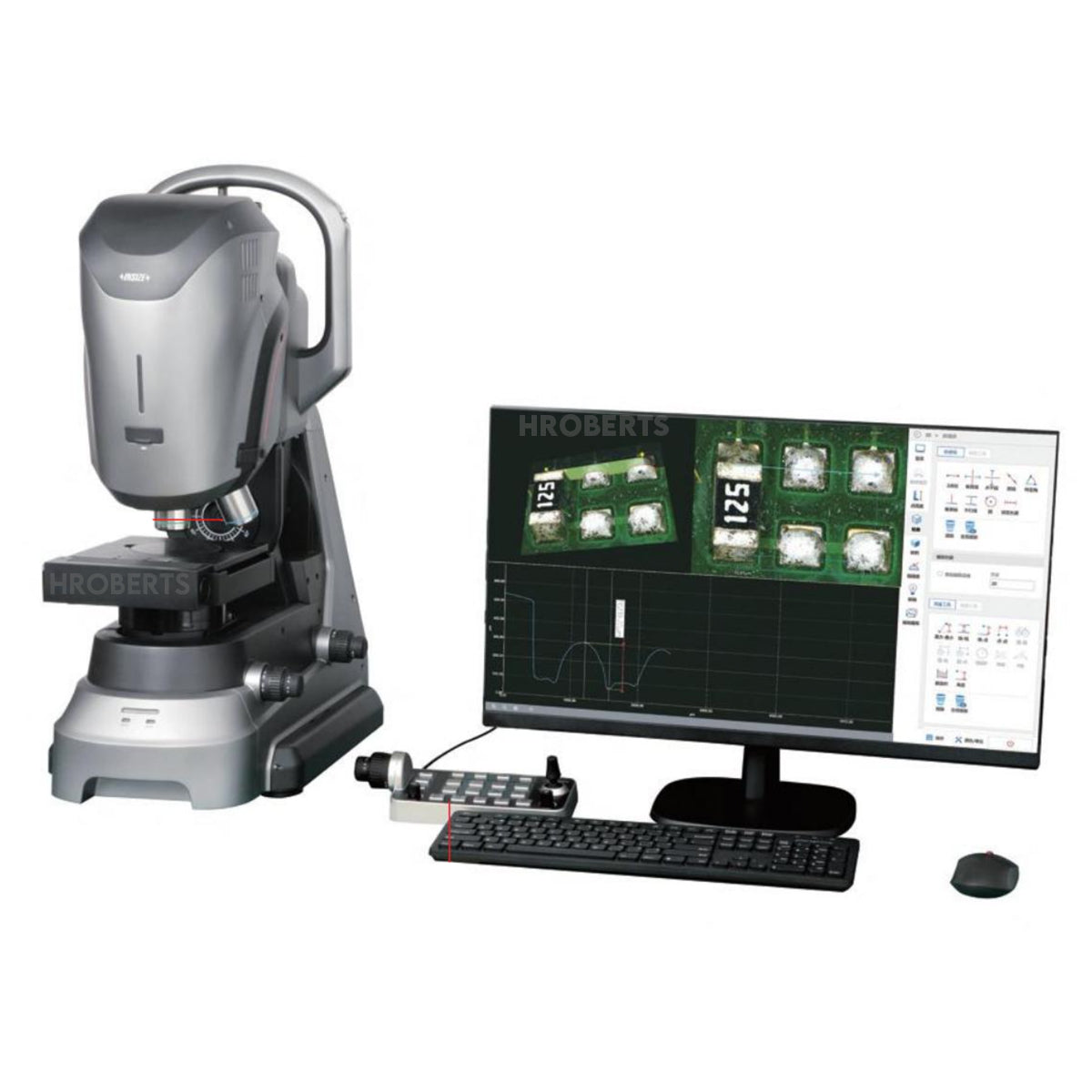

Insize ISM-H5000 Large Depth Of Field 3D Measuring Microscope (Advanced Type)
SKU:Code: ISM-H5000
Item priced on application.
Request a PriceThe ISM-H5000 is an advanced 3D measuring microscope designed for precision inspection and measurement. It features autofocus, four motorized objectives, a telecentric lens for distortion-free imaging, and a high-resolution 12 MP CMOS camera. With a magnification range of 30× to 6000×, split-screen viewing, and a side camera for safe operation, it supports detailed stereoscopic 3D imaging, image stitching, and precise navigation via its motorized XYZ stage. Multiple illumination modes, including bright-field, dark-field, and hybrid lighting, combined with advanced image processing tools like HDR enhancement and reflection elimination, ensure high-quality imaging in any condition.
The system’s software enables 2D and 3D measurement, focus stacking, stitching, and easy export of results to Excel for reporting. Its motorized stage allows accurate positioning with a 1 μm resolution and smooth movement, accommodating samples up to 5 kg. The ISM-H5000 includes a computer, calibration plate, and accessories, offering a comprehensive solution for high-accuracy inspection, measurement, and documentation in demanding industrial and research environments.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- resolution 4000x3000
- magnification extensive magnification range from 30× up to 6000×
- brand Insize
Optics & Imaging
Features autofocus and four motorized switching objectives for seamless magnification changes.
Equipped with a high-definition telecentric imaging lens for precise and distortion-free imaging.
Capable of stereoscopic 3D imaging and image stitching to capture large fields of view and enable post-stitching measurements.
Display & Navigation
Includes split-screen display for monitoring both the measurement area and control interface.
Supports motorized XYZ axis map navigation, allowing automated positioning and movement across the sample.
A side camera provides a view of the workspace-lens relationship to reduce collision risk.
Magnification & Measurement
Offers an extensive magnification range from 30× up to 6000× (with higher levels using digital magnification).
Objectives available at 1.5×, 5×, 20×, and 50×.
Achieves exceptional measurement accuracy of ±(0.5 + 0.005 L) μm, where L is the measured length in millimetres.
Illumination & Imaging Enhancements
Supports multiple illumination modes: bright-field (full/zoned), dark-field (full/zoned), hybrid, and projected lighting.
Includes advanced image processing features such as automatic reflection elimination, ring halo correction, HDR enhancement, adjustable brightness/contrast, optical shadow correction, and jitter compensation.
Camera & Display Specifications
High-resolution 1/1.7″ CMOS sensor with 12.22 megapixels (4168 × 3062).
Offers various output resolutions: quick (2048×1536), standard (2880×2160), high (4000×3000), and high definition up to 8000×6000 or even 12000×9000 pixels.
Fast frame rate of up to 30 fps.
Motorized Stage & Sample Handling
Motorized X, Y, and θ (rotational) axes with a movement range of 228 × 204 mm and fine resolution of 1 μm.

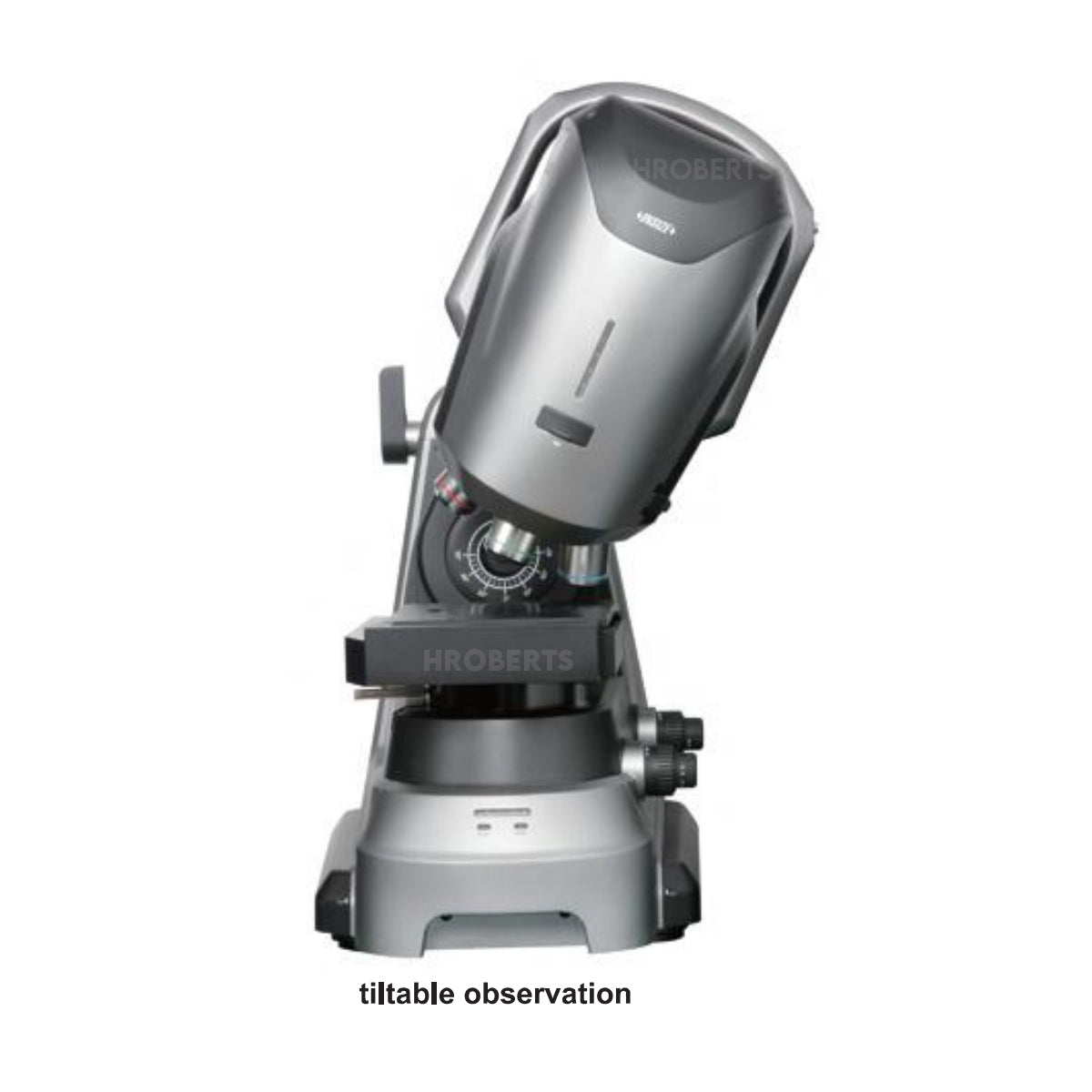

The X/Y movement speed is approximately 10 mm/s, and θ axis tilt ranges from –90° to +90°. Maximum sample weight: 5 kg.
Software & Output

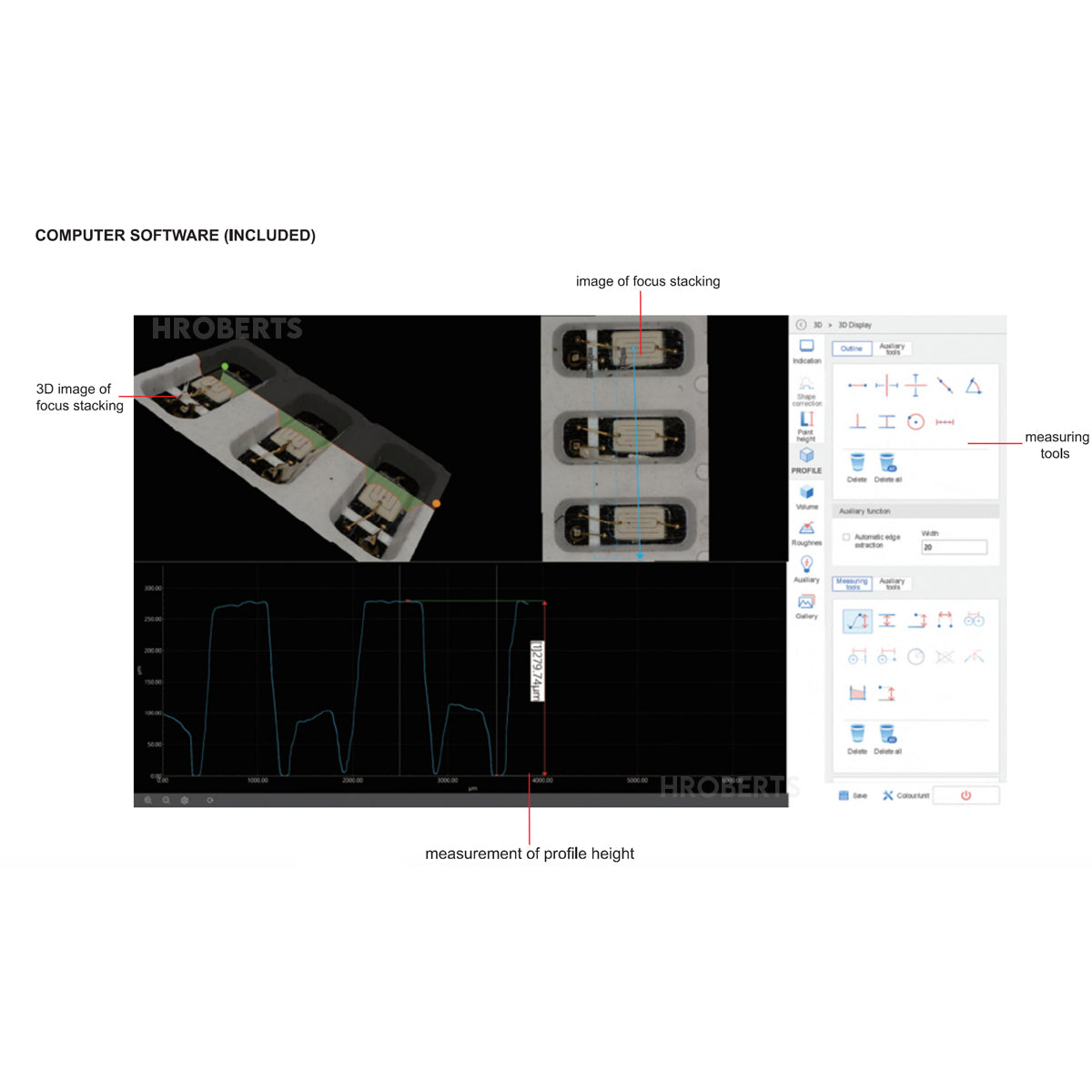

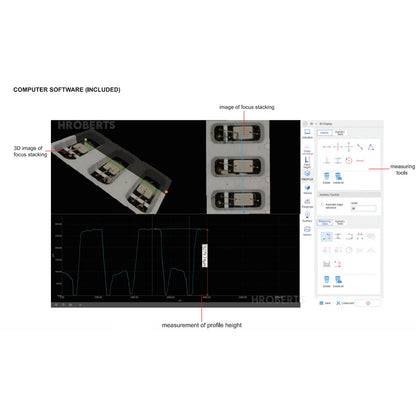

Bundled software supports 2D/3D imaging, focus stacking, stitching, and high-precision 3D synthesis.
Provides measurement tools for 2D (distance, angle, radius, area with automatic edge detection) and 3D (point height, profile).
Image capture, video recording, and report generation with option to export measurement data to Excel.
Included Accessories & Physical Specs
Delivered with main unit, computer, glass calibration plate, anti-dust cover, and a 16 GB USB flash drive.
Dimensions: ~600 × 320 × 710 mm; Weight: ~70 kg. Power supply: 220 V.
