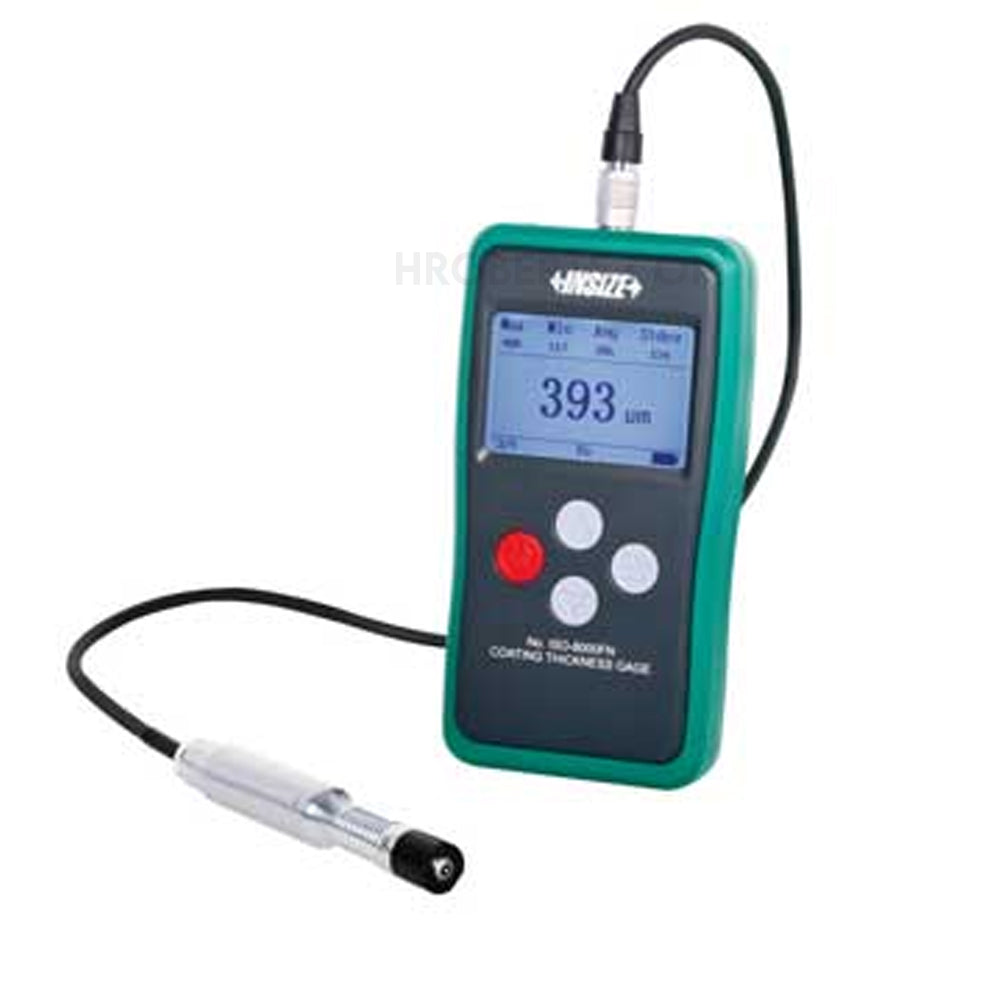

Insize ISO-8000FN Coating Thickness Gauge (High Precision), 0-500 µm

Code: ISO-8000FN

Sale Sold out £1,068.75
Sale Sold out £1,068.75 £1,125.00
Excl. VAT
A high-precision gauge for measuring very thin coatings (below 10 µm) on both magnetic and non-magnetic substrates.

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • range 0-500 µm
  • resolution 0.1 µm (<100 µm); 1 µm (100–500 µm)
  • power supply 4 x 1.5V AAA batteries
  • power supply 4 x 1.5V AAA batteries
  • brand Insize
description

  • High repeatability — consistent measurements for quality assurance.

  • Dual measurement capability:

    • Magnetic induction probe (included): Measures non-magnetic or non-metallic coatings on magnetic substrates (e.g., coatings like zinc, aluminum, copper, chrome, tin, plastic, powder, or paint on iron or magnetic stainless steel; not suitable for nickel or non-magnetic stainless steel substrates).

    • Eddy current probe (optional): Measures non-conductive coatings (e.g., plastic, powder, paint, anodizing) on non-magnetic metal substrates (e.g., copper, aluminum, zinc, non-magnetic stainless steel; not effective for chrome or zinc plating).

  • Automatically calculates maximum, minimum, average, and variance values for measurement batches.

  • Physical & Power Specs

    • Display Units: µm / mil

    • Power Supply: 4 × 1.5 V AAA batteries

    • Dimensions: ~148 × 76 × 26 mm

    • Weight: ~148 g
