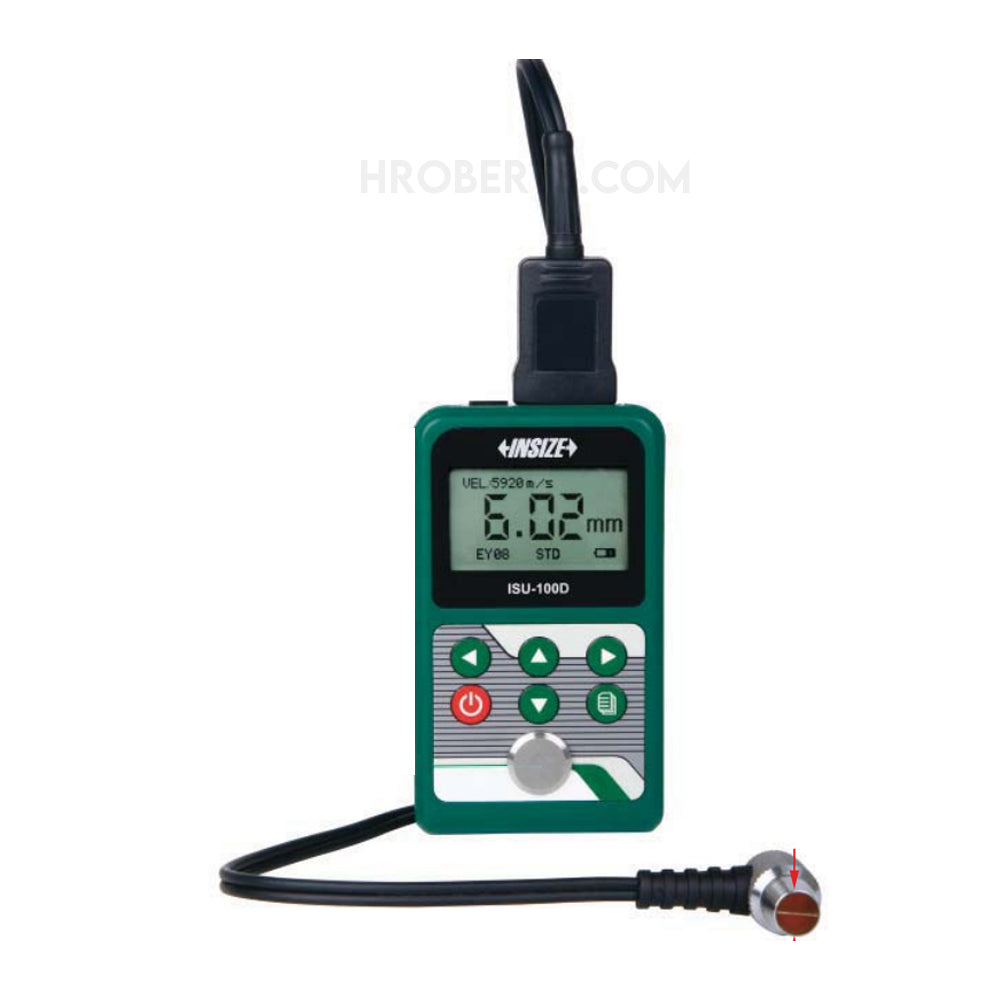

Insize ISU-100D Ultrasonic Thickness Gauge, 0.8-300mm
SKU:Code: ISU‑100D
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- range 1-300mm
- resolution 0.1/0.01mm
- brand Insize
Single-sided thickness measurement for a variety of substrates.
Two measurement modes:
Standard mode: Displays the current thickness reading.
Minimum-value mode: Captures and shows the lowest reading on curved surfaces, especially useful for pipelines (not recommended for cast iron or alloys).
Sound velocity setting and calibration:
Adjustable velocity range from 1000–9999 m/s for different materials.
On-device velocity measurement using a known-thickness sample for higher accuracy.
Backlit LCD for readability in low light conditions.
Low battery indicator and auto-shutoff for power saving.
Durable and portable design with straightforward maintenance tips: keep the surface clean, use couplant, avoid cable stress, and recalibrate after probe changes.
