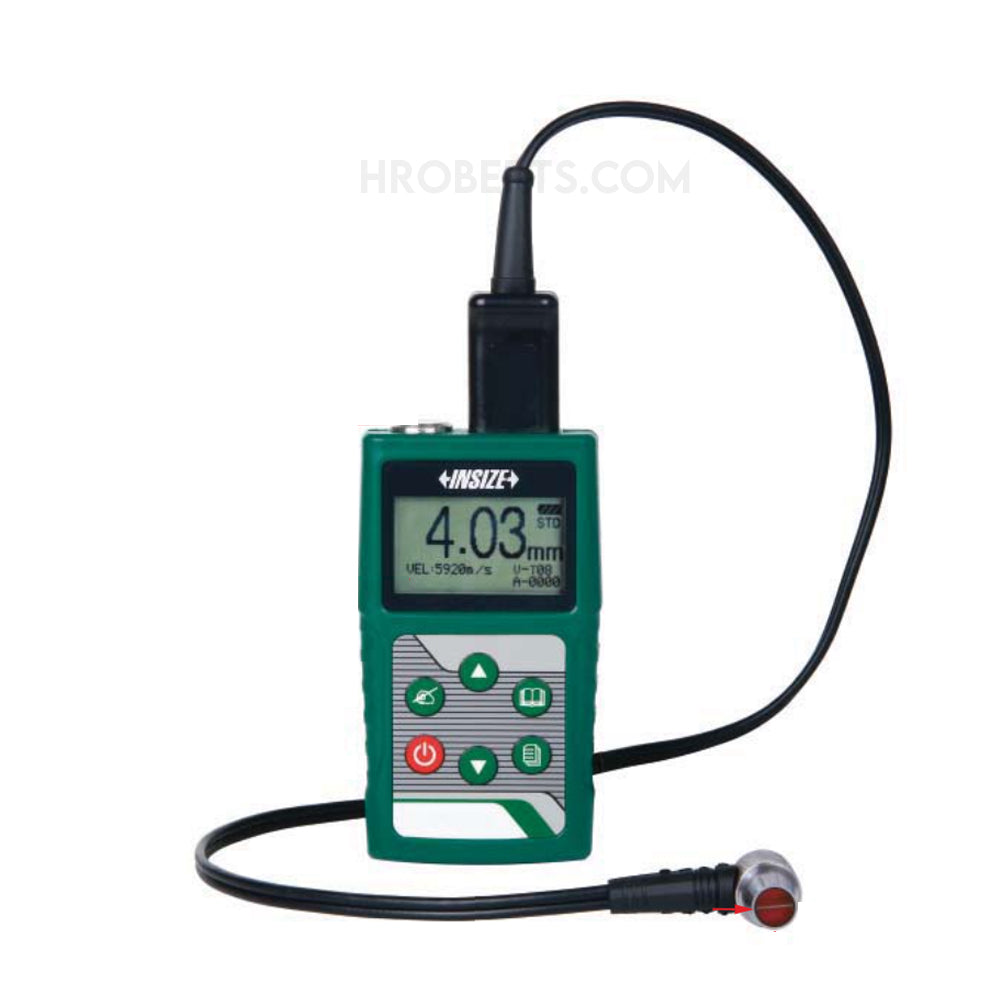

Insize ISU-250C Ultrasonic Thickness Gauge through coating
SKU:Code: ISU‑250C
Sale
Sold out
Regular price
£1,200.80
Sale
Sold out
Sale price
£1,200.80
Regular price
£1,264.00
Excl. VAT
The ISU‑250C is a multifunctional ultrasonic thickness gauge designed for measuring the wall thickness of objects from one side—ideal for tanks, pipes, and similar items—using materials like metal, plastic, glass, ceramics, nylon, epoxy, rubber, and ice
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 0.8-300mm
- resolution 0.1/0.01mm
- brand Insize
description
description
Wall thickness measurement from one side of the object
High resolution up to 0.01 mm (< 100 mm) and 0.1 mm (≥ 100 mm)
Repeatability: 0.03 mm (< 100 mm) and 0.1 mm (≥ 100 mm)
Accuracy:
± 0.04 mm (< 10 mm)
± (0.04 + H/1000) mm (10–100 mm)
± H/333 mm (≥ 100 mm), where H is the measured thickness
Speed of sound adjustment: 1000–9999 m/s for material calibration
Built-in USB port for data output to Excel/Word
Memory for up to 5,000 readings, each with a location reference
Low/high limit alarms and average calculation from up to 9 readings
Backlit LCD for easier visibility
