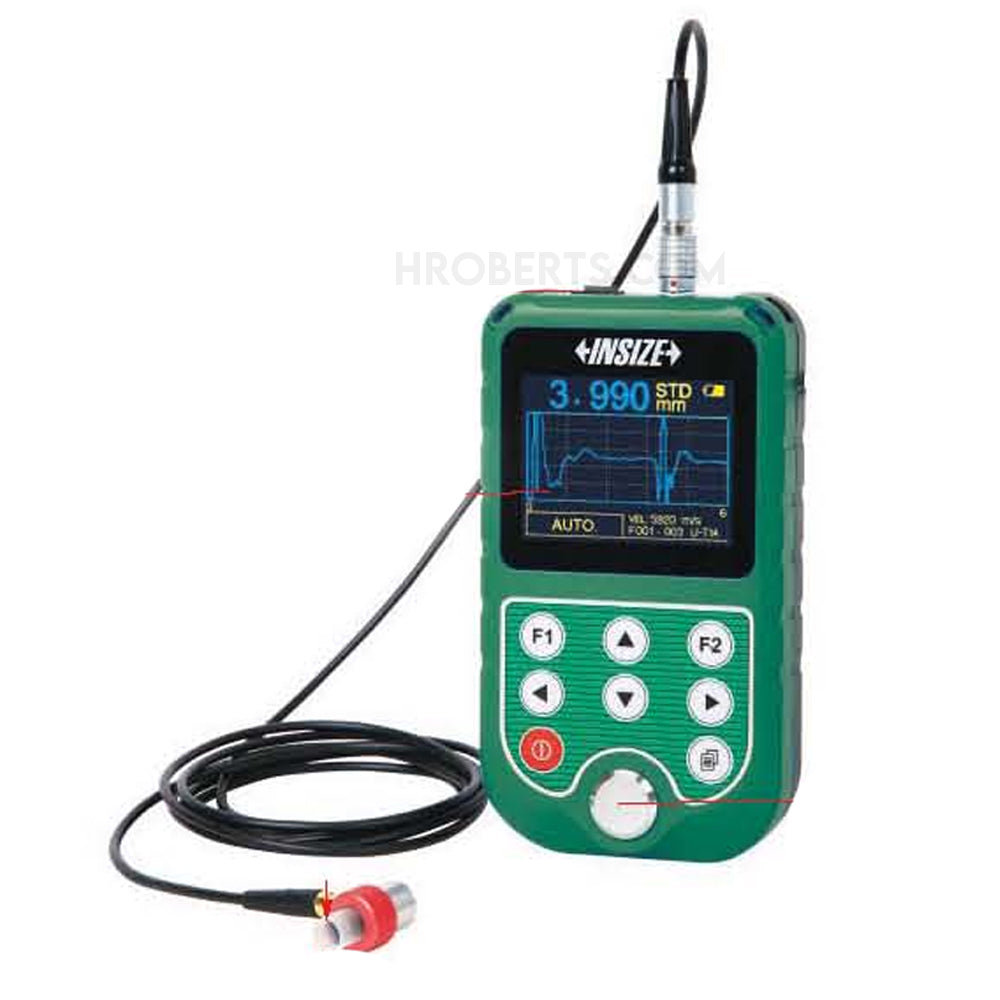

Insize ISU-700D Ultrasonic Thickness Gauge for Thin workpieces
SKU:Code: ISU‑700D
Sale
Sold out
Regular price
£4,970.40
Sale
Sold out
Sale price
£4,970.40
Regular price
£5,232.00
Excl. VAT
Specially designed for thin parts/workpieces
A-scan: Evaluates the ultrasonic signal to detect impurities, pores, cracks, etc., to prevent incorrect measurement
B-scan: Continuously measures and displays thickness changes on screen
Automatic transducer identification and zeroing
Memory for up to 10,000 measured values
Allows data transfer into Excel and Word via keyboard emulation
Supports automatic and manual measurement
Measurement data remains displayed on screen even after the probe is removed
Configurable upper and lower limits for tolerance alarms
Automatic power-off to save energy
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 0.2-10mm
- resolution 0.1/0.01/0.001mm
- brand Insize
description
description
Measuring modes and ranges:
Transmit-Echo (T-E): 1.5 – 20 mm
Echo-Echo (E-E): 0.2 – 10 mm
Resolution (selectable): 0.1 mm / 0.01 mm / 0.001 mm
Accuracy (H = measured thickness in mm):
± 0.04 mm (H < 10 mm)
± (0.04 + H/1000) mm (H < 100 mm)
Probe:
Type: single-element
Frequency: 15 MHz
Diameter: ⌀7.5 mm
Display: 320 × 240 color screen
Velocity range: 1000 – 9999 m/s
Measuring frequency: 2 measurements/sec or 10 measurements/sec
Operating temperature:
Gauge: –20 °C to +50 °C
Probe: –20 °C to +60 °C
Data output: USB
Units: mm / inch
Power supply: 2 × 1.5 V AA batteries
Dimensions: 133 × 75 × 29 mm
