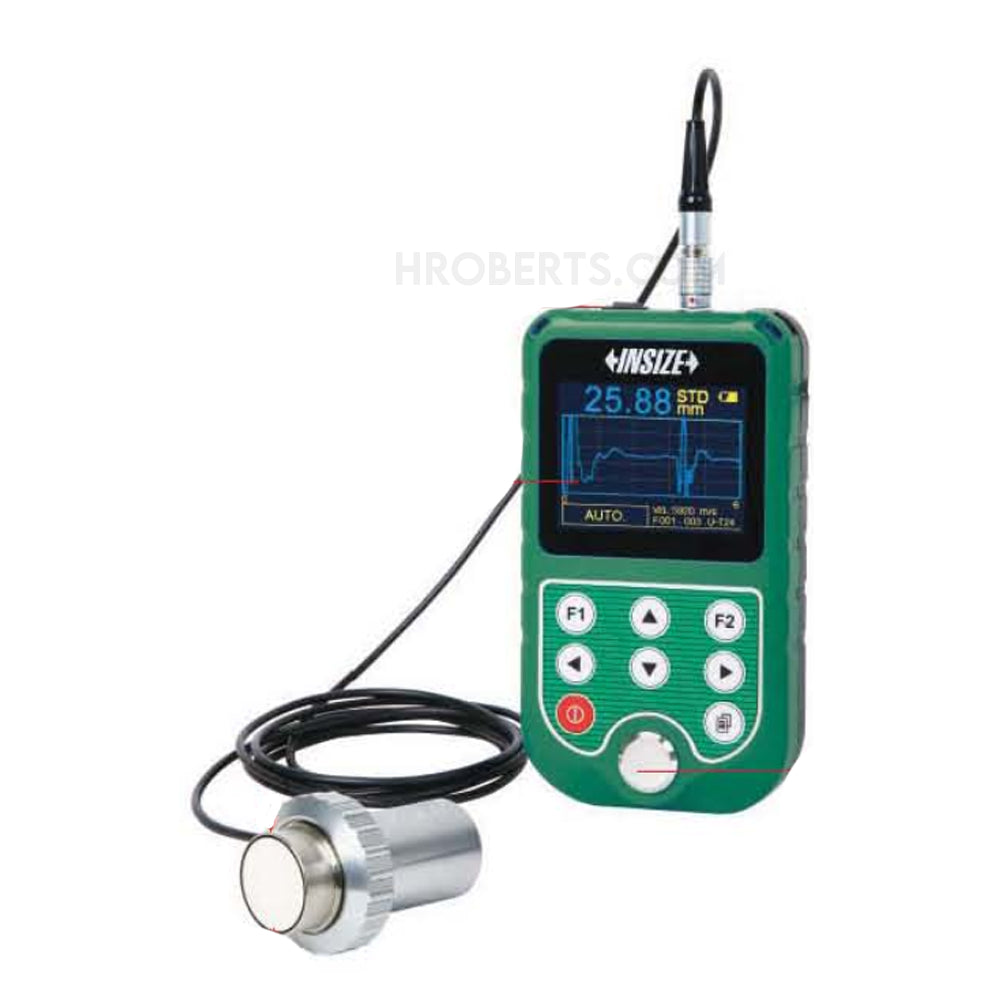

Insize ISU-710D Ultrasonic Thickness Gauge for Thick workpieces of organic material
SKU:Code: ISU‑710D
Sale
Sold out
Regular price
£4,766.15
Sale
Sold out
Sale price
£4,766.15
Regular price
£5,017.00
Excl. VAT
Designed for thick workpieces made of organic (non‑metal) materials
A‑scan: evaluates signal quality (e.g., impurities, pores, cracks) to avoid incorrect measurements
B‑scan: continuous measurement with thickness changes displayed dynamically on screen
Automatic transducer ID and zeroing
Memory capacity for 10 000 measured values
Data input into Excel and Word via keyboard emulation
Supports both automatic and manual measurement
Retains previous measurement display even when the probe is removed
Configurable upper and lower limits for tolerance alarms
Automatic power‑off to save battery life
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 20-590mm
- resolution 0.1/0.01mm
- brand Insize
description
description
Measuring range: 20–590 mm
Resolution: 0,1 mm and 0,01 mm
Accuracy (H = measured thickness in mm):
±(0,04 + H/1000) mm for H < 100 mm
±(H / 333) mm for H ≥ 100 mm
Probe type: Single‑element, 1 MHz, ⌀26 mm
Display: 320 × 240 color screen
Velocity range: 1000–9999 m/s
Measuring frequency: 2 Hz or 10 Hz
Operating temperature:
Device: –20 °C to 50 °C
Probe: –20 °C to 60 °C
Data output: USB
Units: mm and inch
Power: 2 × 1.5 V AA batteries
Dimensions: 133 × 75 × 29 mm
Weight: 260 g (including batteries)
