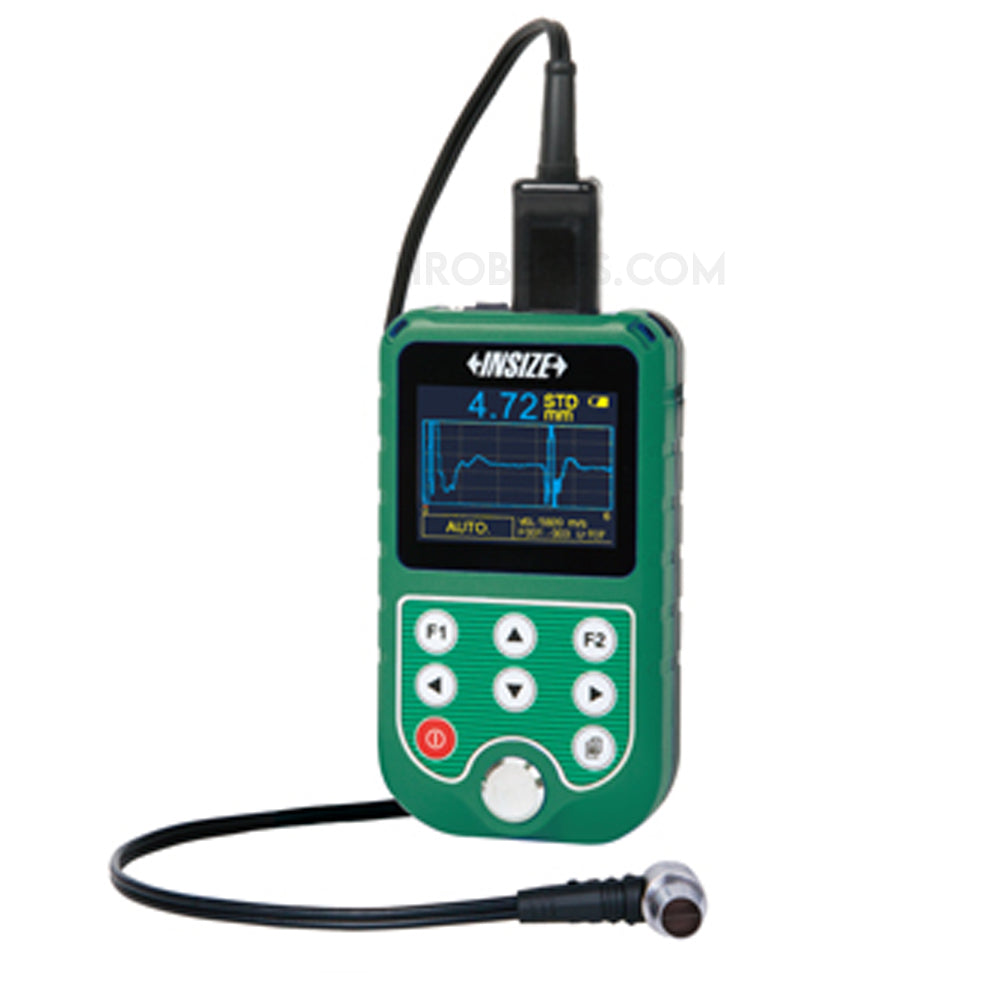

Insize ISU-720D Ultrasonic Thickness Gauge
SKU:Code: ISU-720D
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- range 03-25mm
- resolution 0.1/0.01mm
- diameter 13.2mm
- brand Insize
Two measuring modes:
Echo‑Echo (E‑E): Penetrates non‑metallic coatings (e.g., paint, plastic resin) on metallic substrates to measure wall thickness.
Transmit‑Echo (T‑E): Measures thickness of materials without coating, such as metal, plastic, glass, nylon, resin, ceramic, ice
.
A‑scan: Evaluates the signal for impurities, pores, cracks to avoid incorrect readings.
B‑scan: Continuously measures and displays thickness changes on the screen.
Transducers can be automatically identified and zeroed.
Memory for up to 10 000 measurements.
Data entry into Excel and Word via keyboard emulation.
Automatic or manual measurement.
When the transducer is removed from the workpiece, previously measured data remains visible on-screen.
Set upper and lower limits for tolerance alarms.
Automatic power-off
