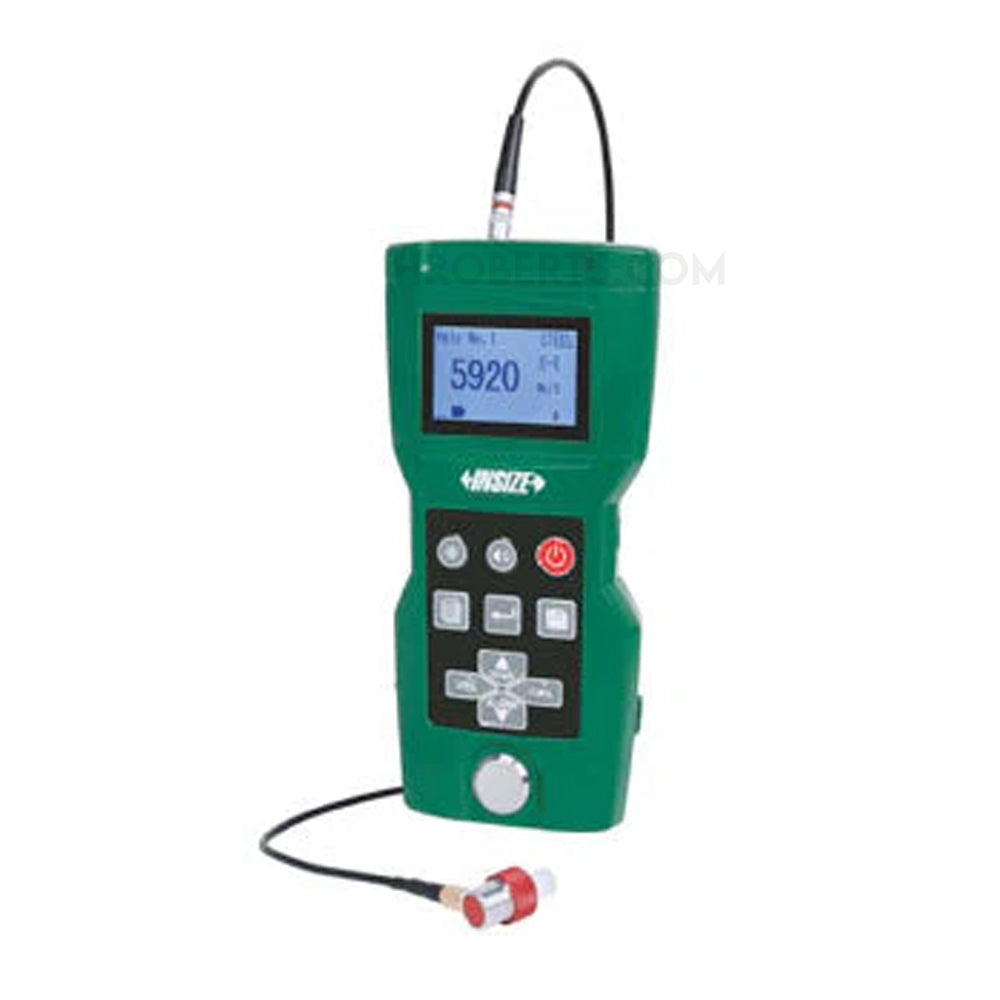

Insize ISU-800D Ultrasonic Thickness Gauge (Advanced Type)
SKU:Code: ISU-800D
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- range 0.15-14mm
- resolution 0.1/0.01mm
- diameter 8mm
- brand Insize
Real-time temperature compensation eliminates the error
caused by temperature variation
Support both single element transducers and dual element
transducers
Measure the thickness of substrate through coating
Measuring mode: standard mode (dual element transducer:
P-E mode, single element transducer: I-E mode), penetrate
coating mode (dual element transducer: I-E mode, single
element transducer: E-E mode or auto mode)
Measure method: single point, scanning, deviation
Set upper and lower limits for alarm when out-of-tolerance
Single point and 2 points calibration
Keyboard lock function avoids parameter setting change
caused by unintended press during measurement
Memory 1000 measurement values
Data can be transmitted to PC by Bluetooth connection
or Mini-USB cable
