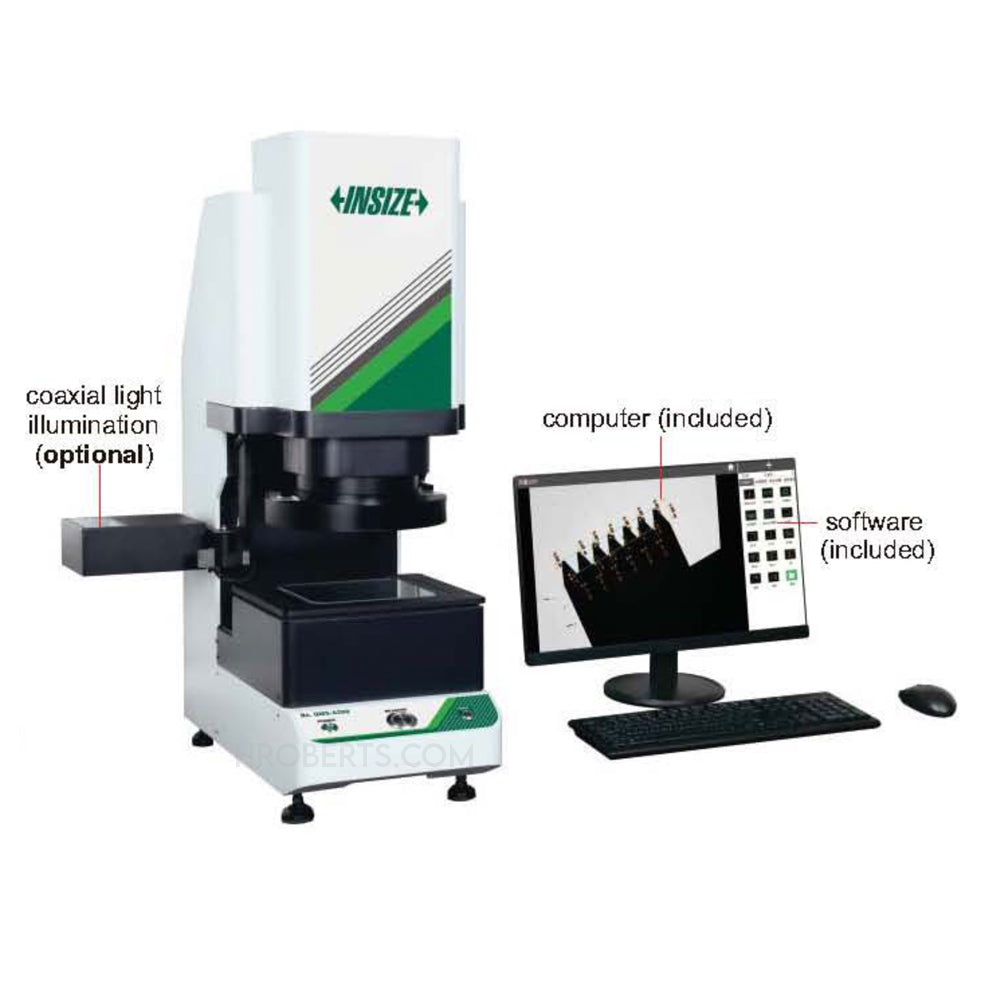

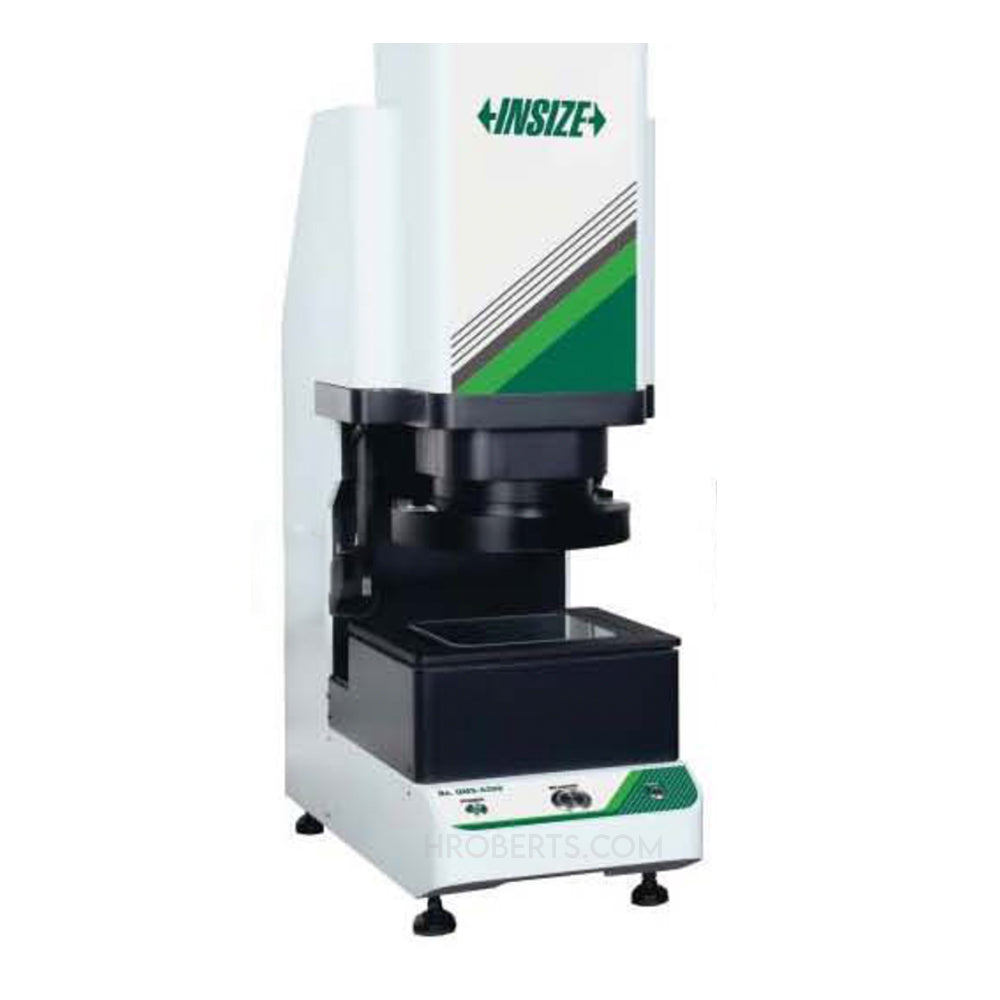

Insize QMS-A200 Field of view inspection machine, Measuring Range Ø115x110mm & 50x35mm, Includes PC and Software
SKU:Code: QMS-A200
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- range Field of View Range = Wide Ø150x110mm0 / SmallØ50x35mm
- accuracy ± 5μm / ± 2μm
- remarks Includes PC and Software
- remarks Max Load 5kg
- repeatability ± 1μm / 0.5μm
- lens ø100mm Telecentric lens
- brand Insize
- lens ø100mm Telecentric lens
The Insize QMS-A220 Quick Measurement System is designed to deliver fast, accurate, and repeatable optical measurements for small- and medium-sized parts. With its bi-telecentric lens and high-resolution imaging system, it provides distortion-free results, making it an ideal solution for precision manufacturing and quality control applications. This system ensures that even complex components can be measured reliably in a matter of seconds, boosting throughput and efficiency.
One of the standout features of the QMS-A220 is its flexible measurement range. It offers two fields of view: a large field for quick measurement of multiple parts or larger components, and a small field for capturing finer details with higher accuracy. With stitching capabilities, it can extend the measurement area significantly, allowing operators to work with parts of varying sizes without sacrificing precision.
Accuracy and repeatability are central to the QMS-A220’s design. It delivers micron-level measurement precision, whether stationary or while the sliding table is in motion. The system’s rapid measurement cycle—typically under two seconds per part—makes it an excellent choice for production environments where speed is as critical as accuracy.
The integrated lighting system enhances image clarity by combining telecentric backlighting with a multi-angle LED ring light. This ensures optimal illumination of part edges and surfaces, even for challenging geometries. Optional coaxial lighting is available for reflective surfaces or features that require direct illumination.
Finally, the QMS-A220 comes with intuitive software that automates measurements, performs statistical analysis, and generates detailed reports. It supports automatic counting, pass/fail sorting, and data storage, helping streamline inspection workflows. With its robust construction, user-friendly interface, and compatibility with optional accessories like CAD integration and footswitch controls, this system is built to deliver reliability and productivity in any quality assurance process.
