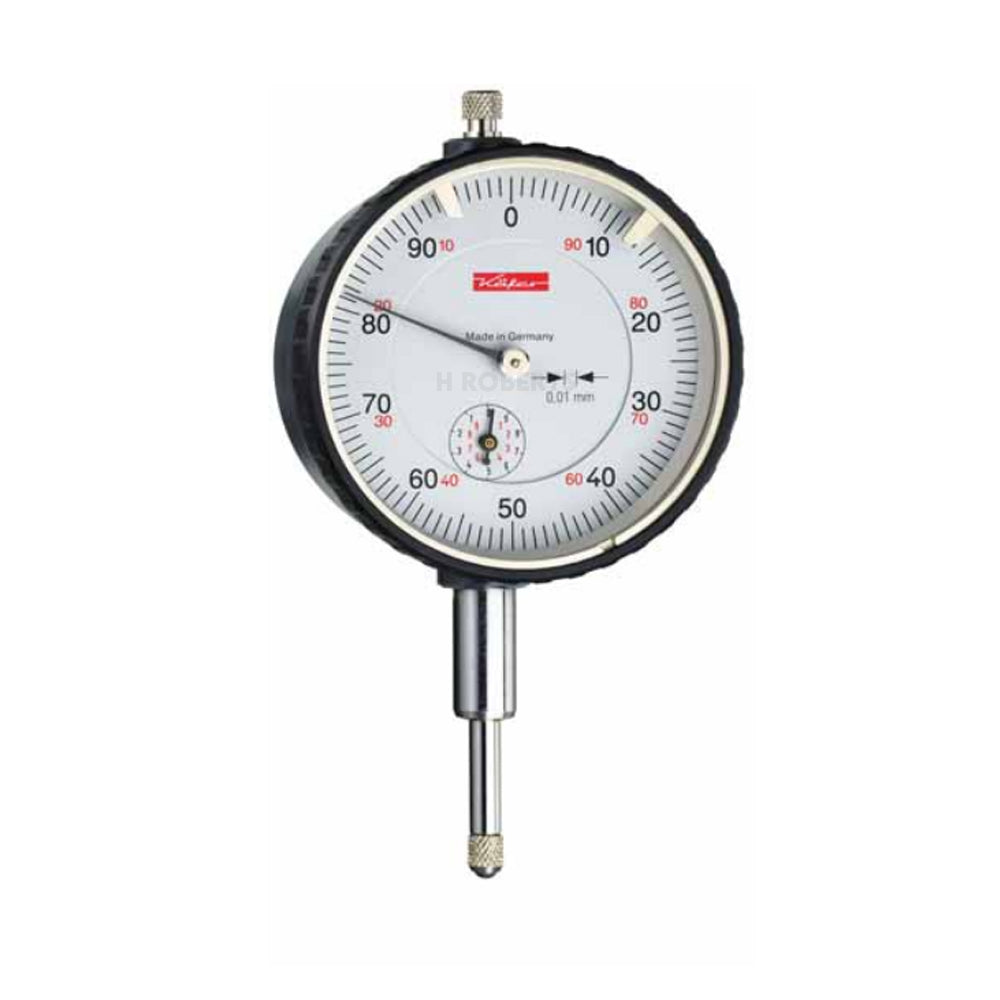

Kafer M 2 X Dial Indicator, Graduation 0.01mm, Range 10mm, Scale 0-100, Bezel Diameter 58mm
SKU:Code: M 2 X (10027)
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Kafer
- type Dial Indicator
- range 10mm
- range rev 1mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 58mm
- measuring units Metric
- scale 0-100
- contact point thread M2.5
Enabled by the use of a polyamide quality injectionmoulded casing we can offer the Dial Gauge M 2 X having very low weight.
The successful design of the M 2 X Dial Gauge offers high precision at a low price.
All details of this Dial Gauge conform to DIN 878 in conjunction with DIN EN ISO 463. This applies not only to the dimensions but also to allowed tolerances. Spindle and stem are made of stainless steel. The spindle is lapped.
Thanks to an appropriate combination of quality injection-moulded parts and standard metal parts, Kafer were able to create a new design of Dial Gauges.
The metal gear elements are inserted by simple means into two injection moulded parts.
This substitutes for the conventional mechanism.
This nearly 25 year old design, in the past protected by German Federal Patent, has proved itself on the market.
Despite several improvements the basic concept has remained unchanged. Series ‚X‘ Dial Gauges have become a trademark of our competence in the manufacture of Dial Gauges.
