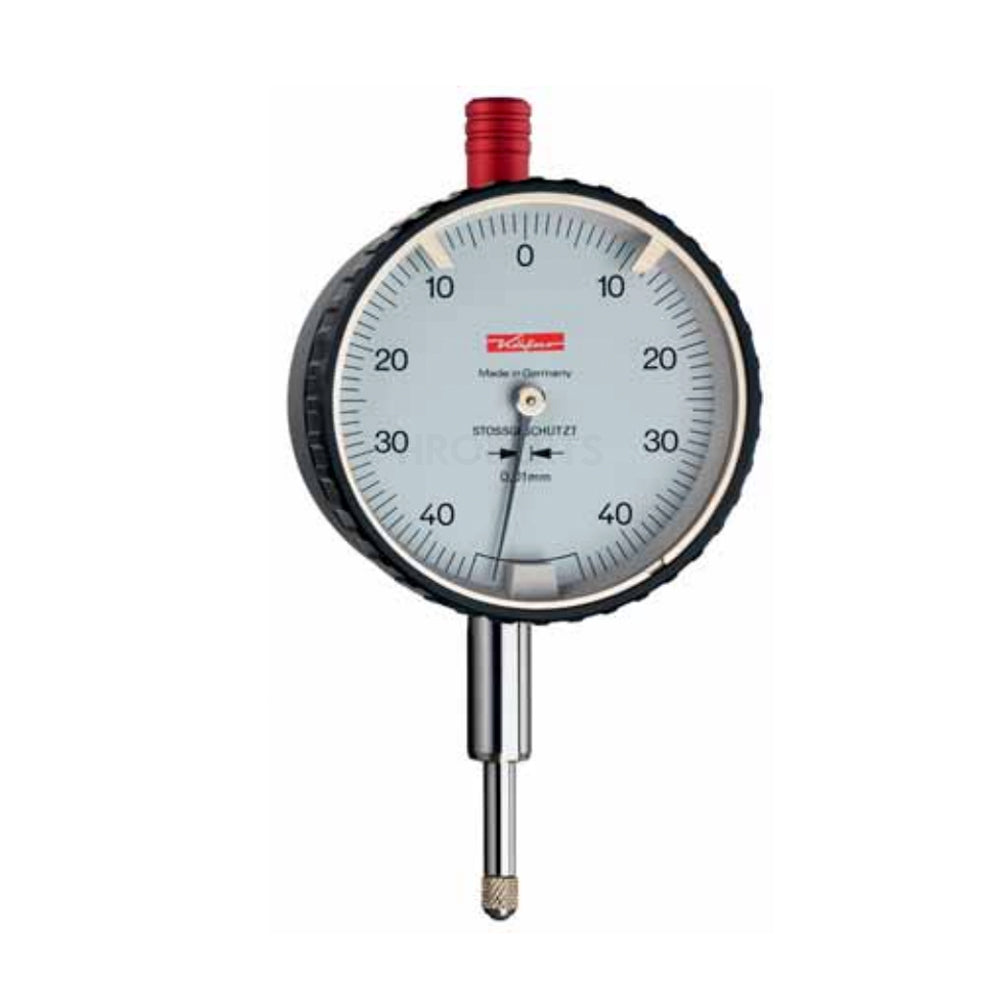

Kafer SI-90 Dial Indicator, Shockproof, Graduation 0.01mm, Range 0.8mm, 40-0-40, Bezel Diameter 58mm
SKU:Code: SI-90 (10020)
Sale
Sold out
Regular price
£79.50
Sold out
Sale price
£79.50
Regular price
£79.50
Excl. VAT
Due to their effective shockproof system these Dial Gauges have an exceptionally long service life. A gear rack sleeve covering the length of the spindle is arranged and sprung in such a way that shocks against the measuring insert are not transferred to the movement.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Kafer
- type Dial Indicator
- range 0.8mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 58mm
- measuring units Metric
- scale 40-0-40
- contact point thread M2.5
description
description
Due to their effective shockproof system these Dial Gauges have an exceptionally long service life. A gear rack sleeve covering the length of the spindle is arranged and sprung in such a way that shocks against the measuring insert are not transferred to the movement. The Dial Gauges are robust in operation. Their precision is maintained with practically no limitations.
Spindle and stem are made of resistant stainless steel. The spindle is lapped.
