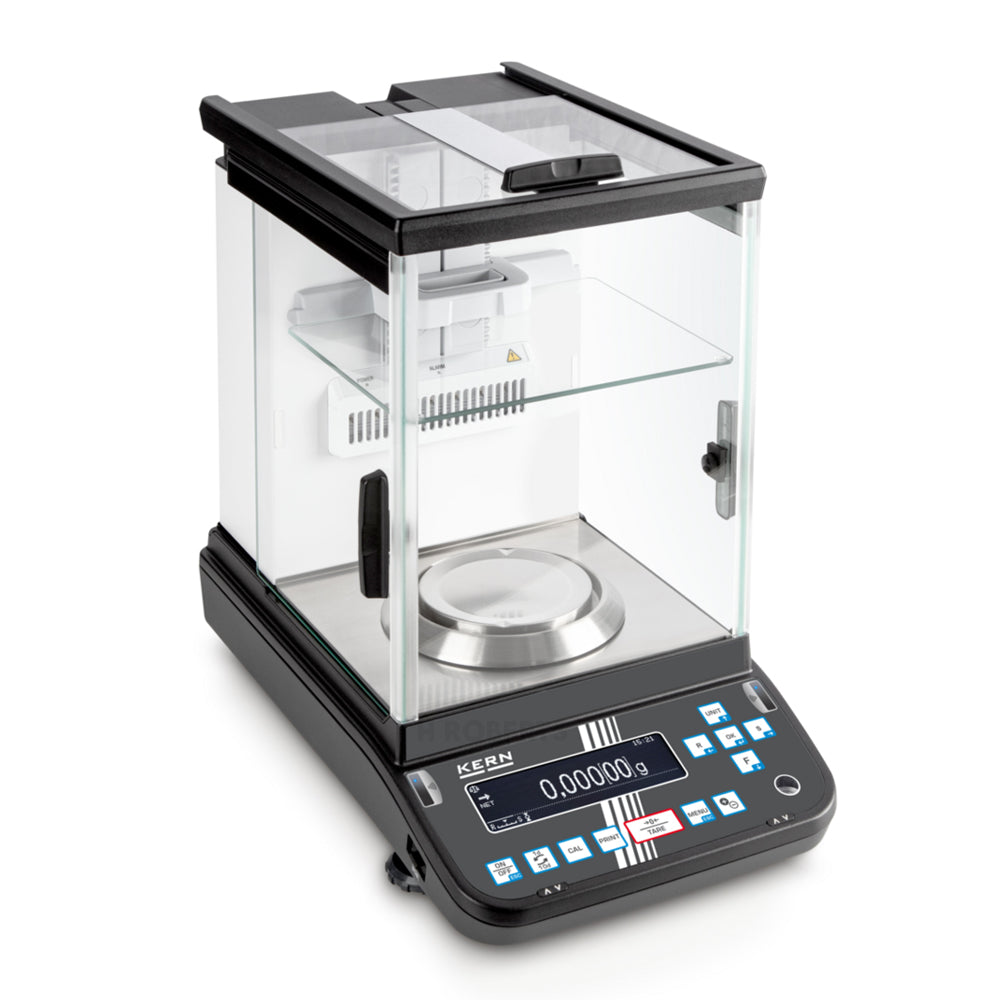

Kern ABP 100-5AM Innovative Analytical balance with automatic sliding doors, Max Weighing Capacity 135g, Resolution 0.00001g

Code: ABP100-5AM

Sale Sold out £8,100.00
Save: 10% Sold out £8,100.00 £9,000.00
Excl. VAT
This new generation of analytical balances combines the highest level of precision with large weighing ranges. Thanks to the new Single-Cell Generation, the weighing result is displayed in a fraction of the time with comparable models. Together with the intuitively structured menu, this means that you can work efficiently and rapidly, with 3 automatic sliding doors, which can be opened and closed using sensors, and integrated ioniser as standard.

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • brand Kern
  • type Analytical Balance
  • display type Digital
  • resolution 0.00001g
  • weighing capacity max 135g
  • weighing plate size 91mm Dia
  • measuring units g / mg / ct
  • piece counting Yes
description
 Automatic internal adjustment Internal adjusting Quick setting up of the balance’s accuracy with internal adjusting weight (motordriven)
RS 232 data interface RS-232 Data interface To connect the balance to a printer, PC or network
USB data interface USB Data interface To connect the balance to a printer, PC or other peripherals
GLP/ISO Protocol GLP/ISO log intern the balance displays weight, date and time, independent of a printer connection
Piece counting Piece counting Reference quantities selectable. Display can be switched from piece to weight
Recipe level B Recipe level B Internal memory for complete recipes with name and target value of the recipe ingredients. User guidance through display
Percentage determination Percentage determination Determining the deviation in % from the target value (100 %)
Weighing units Weighing units Can be switched to e.g. nonmetric units. See
balance model. Please refer to KERN’s website for more details
Weighing with tolerance range, visual, acoustic Weighing with tolerance range (Checkweighing) Upper and lower limiting can be programmed individually, e.g. for sorting and dosing. The process is supported by an audible or visual signal, see the relevant model
Function_Mean value_Animal Hold function (Animal weighing program) When the weighing conditions are unstable, a stable weight is calculated as an average value
Suspended weighing Suspended weighing Load support with hook on the underside of the
balance
Universal mains adapter_B Universal plug-in power supply with universal input and optional input socket adapters
Weighing principle: Single cell technology Weighing principle Single cell technology Advanced version of the force compensation principle with the highest level of precision



  • This new generation of analytical balances combines the highest level of precision with large weighing ranges. Thanks to the new Single-Cell Generation, the weighing result is displayed in a fraction of the time with comparable models. Together with the intuitively structured menu, this means that you can work efficiently and rapidly, with 3 automatic sliding doors, which can be opened and closed using sensors, and integrated ioniser as standard
  • Thanks to the  Function, the balance stores how far the sliding doors have been opened. This prevents contamination and accelerates processes. Touching the sliding doors “gently” activates the push function and the doors open and shut automatically. The adjustable internal  guarantees maximum stability of the weight readings
  • Internal draft shield - minimises the effect of air currents in the weighing chamber
  • Navigation pad for quick navigating through the menus
  • Automatic internal adjustment in the case of a change in temperature ≥ 1 °C or timecontrolled every 4 h, guarantees high degree of accuracy and makes the balance independent of its location of use
  • The minimum weight of sample can be manually stored in the device or automatically calculated. For weighings below this value, the balance issues a warning message
  • Dosage aid: High stability mode and other filter settings can be selected
  • Simple recipe weighing and documenting with a combined tare/print function. In addition, the ingredients for the recipe are numbered automatically and printed out with their corresponding number and nominal weight
  • Individual user settings can be stored for up to 10 users: user name/number (can be printed out or added to the record for each process), password, menu language, user profiles, accessing user settings via barcode, additional guest mode for users who are not logged in, authorizations, eg. B. balance adjustment, changing settings or conditioning or modification of a recipe only by the authorized person and performing the formulation by the user
  • RS-232 s and USB (device) for transferring weighing data and USB (host) to connect a USB keyboard for easy capture of item numbers, recipes, for easier navigation within the menu etc.
  • U.S. FDA 21 Part 11: assists in data integrity in accordance with U.S. FDA 21 Part 11 (for example weighing result, sample ID, user name, scales ID, ...)
  • Menu languages DE, EN
  • Automatic data output to the PC/printer each time the balance is steady
  • Large glass  with 3 sliding doors for easy access to the items being weighed
  • Multi-function weighing plate included with delivery, minimises the effect of currents of air in the weighing chamber and therefore significantly improves the stabilisation time and repeatability. In addition samples, sample paper, PCR containers, micro centrifuge tubes and many other items which protrude can be easily fixed in place and weighed easily
  • Protective working cover included with delivery
