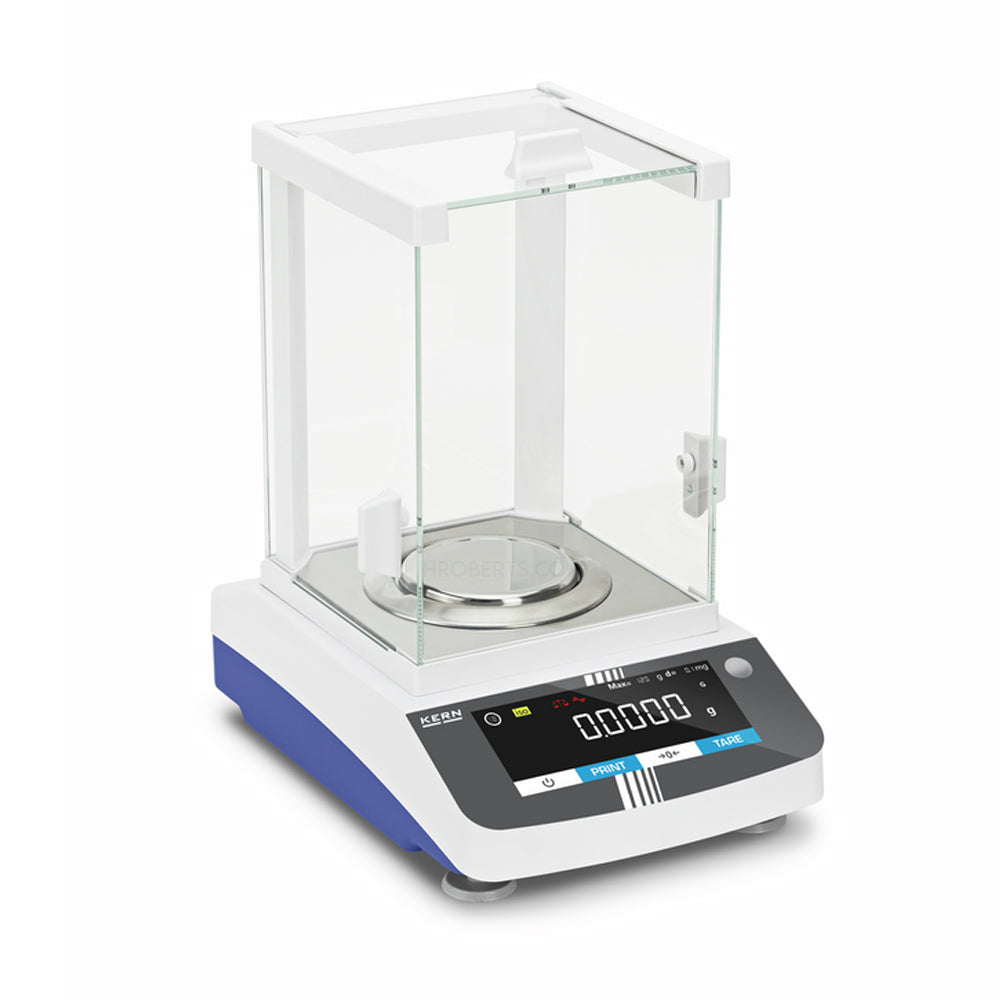

Kern ADS 200-4 Analytical balance with Touch Display, Max Weighing Capacity 220g, Resolution 0.0001g, External Adjustment
SKU:Code: ADS200-4
The wide range of functions of this range of analytical balances means that they qualify for use in the pharmaceutical industry as well as other fields. These include, for example, the statistical function, weighing with tolerance range, counting function, percentage weighing, totalizing function and many more.

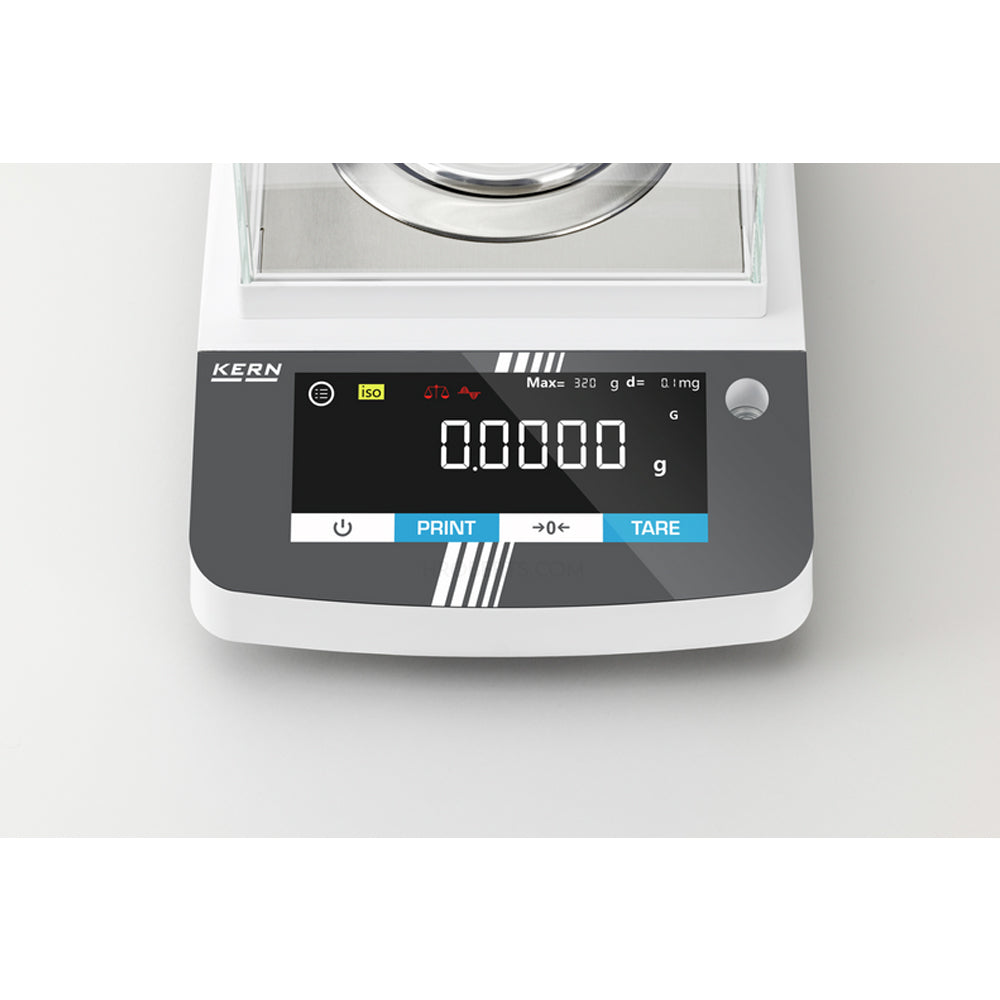

Modern touch display with convenient operation enables you to, for example, switch the units or start adjustment straight from the display.
The Windows Direct function allows weights to be transferred directly from the balance to a Windows application via a USB device connection, without the need for manual entry.
Draught shield standard.
Specialised functions, such as the statistical function make it easier to use efficiently in industry and the laboratory.
GLP/ISO record keeping with date, time and identification number of balance adjustment or weighing process.
Assists in data integrity in accordance with U.S. FDA 21 Part 11 (for example weighing result, sample ID, user name, scales ID, ...).
Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol.
RS-232 data interface and USB (Device) for the transfer of weighing data.
Menu language EN.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Analytical Balance
- display type Digital
- resolution 0.0001g
- weighing capacity max 220g
- weighing plate size 90mm Dia
- measuring units kg / g / mg / gn / dwt / tl (Tw) / ozt / ct / lb / N / oz / ffa
- brand Kern
- piece counting Yes
|
Adjusting program CAL For quick setting up of the balance’s accuracy. External adjusting weight required |
 |
RS-232 Data interface To connect the balance to a printer, PC or network |
 |
USB Data interface To connect the balance to a printer, PC or other peripherals |
 |
KERN Communication Protocol (KCP) It is a standardized interface command set for KERN balances and other instruments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers and other digital systems |
 |
GLP/ISO log Printer With weight, date and time. Only with KERN printers. |
 |
Piece counting Reference quantities selectable. Display can be switched from piece to weight |
 |
Recipe level A The weights of the recipe ingredients can be added together and the total weight of the recipe can be printed out |
 |
Percentage determination Determining the deviation in % from the target value (100 %) |
 |
Weighing units Can be switched to e.g. nonmetric units. See balance model. Please refer to KERN’s website for more details |
 |
Weighing with tolerance range (Checkweighing) Upper and lower limiting can be programmed individually, e.g. for sorting and dosing. The process is supported by an audible or visual signal, see the relevant model |
 |
Hold function (Animal weighing program) When the weighing conditions are unstable, a stable weight is calculated as an average value |
 |
Suspended weighing Load support with hook on the underside of the balance |
 |
Universal plug-in power supply with universal input and optional input socket adapters for EU, CH, GB, US |
 |
Weighing principle Electromagnetic force compensation Coil inside a permanent magnet. For the most accurate weighing |
