Specification
Specification

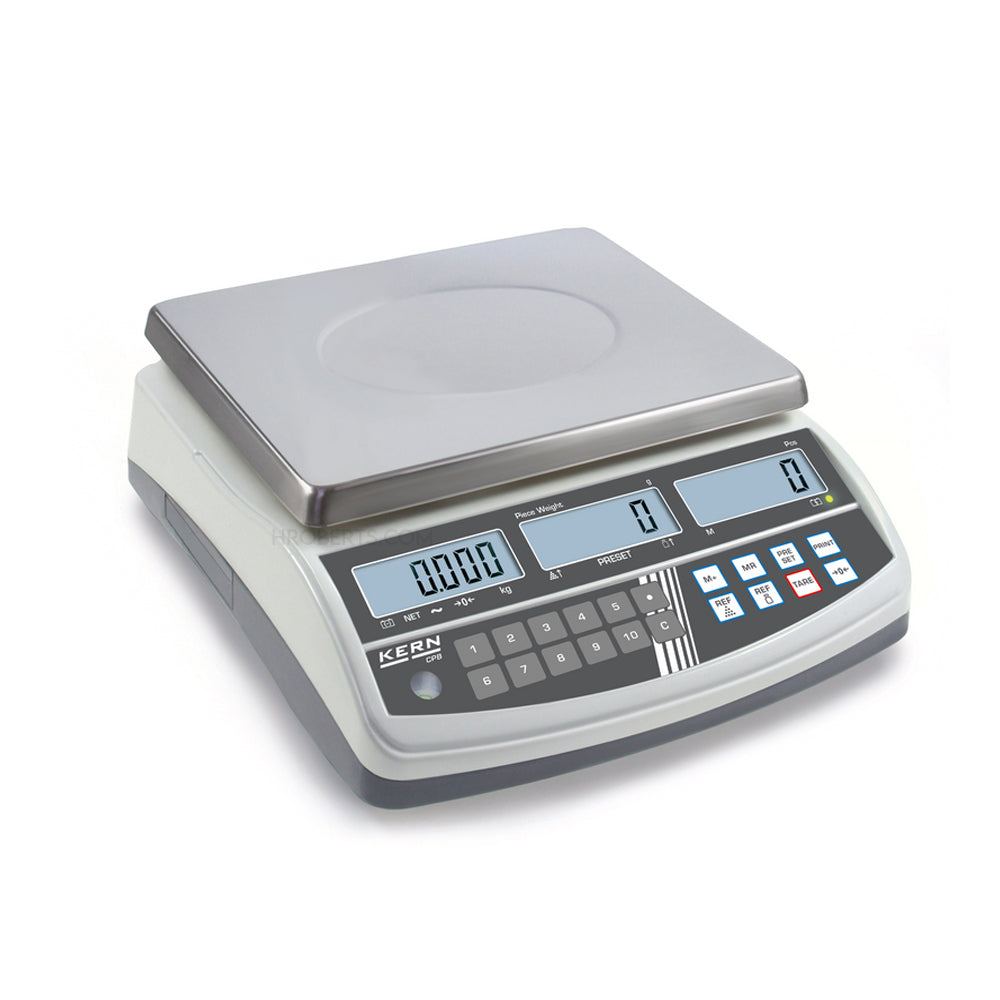

- type Counting Scales
- display type Digital
- resolution 0.1g
- weighing capacity max 6000g
- weighing plate size 295×225mm
- smallest part weight 1g
- measuring units g
- brand Kern
- piece counting Yes
description
description
![]() |
Adjusting program CAL For quick setting up of the balance’s accuracy. External adjusting weight required |
![]() |
Memory - Balance memory capacity, e.g. for article data, weighing data, tare weights, PLU etc. |
![]() |
RS-232 Data interface To connect the balance to a printer, PC or network |
![]() |
KERN Communication Protocol (KCP) It is a standardized interface command set for KERN balances and other instruments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers and other digital systems |
![]() |
Piece counting Reference quantities selectable. Display can be switched from piece to weight |
![]() |
Totalising level A The weights of similar items can be added together and the total can be printed out (printer not included) |
![]() |
Weighing with tolerance range (Checkweighing) Upper and lower limiting can be programmed individually, e.g. for sorting and dosing. The process is supported by an audible or visual signal, see the relevant model |
![]() |
Universal plug-in power supply with universal input and optional input socket adapters for EU, CH, GB, US |
![]() |
Weighing principle Single cell technology Advanced version of the force compensation principle with the highest level of precision |
