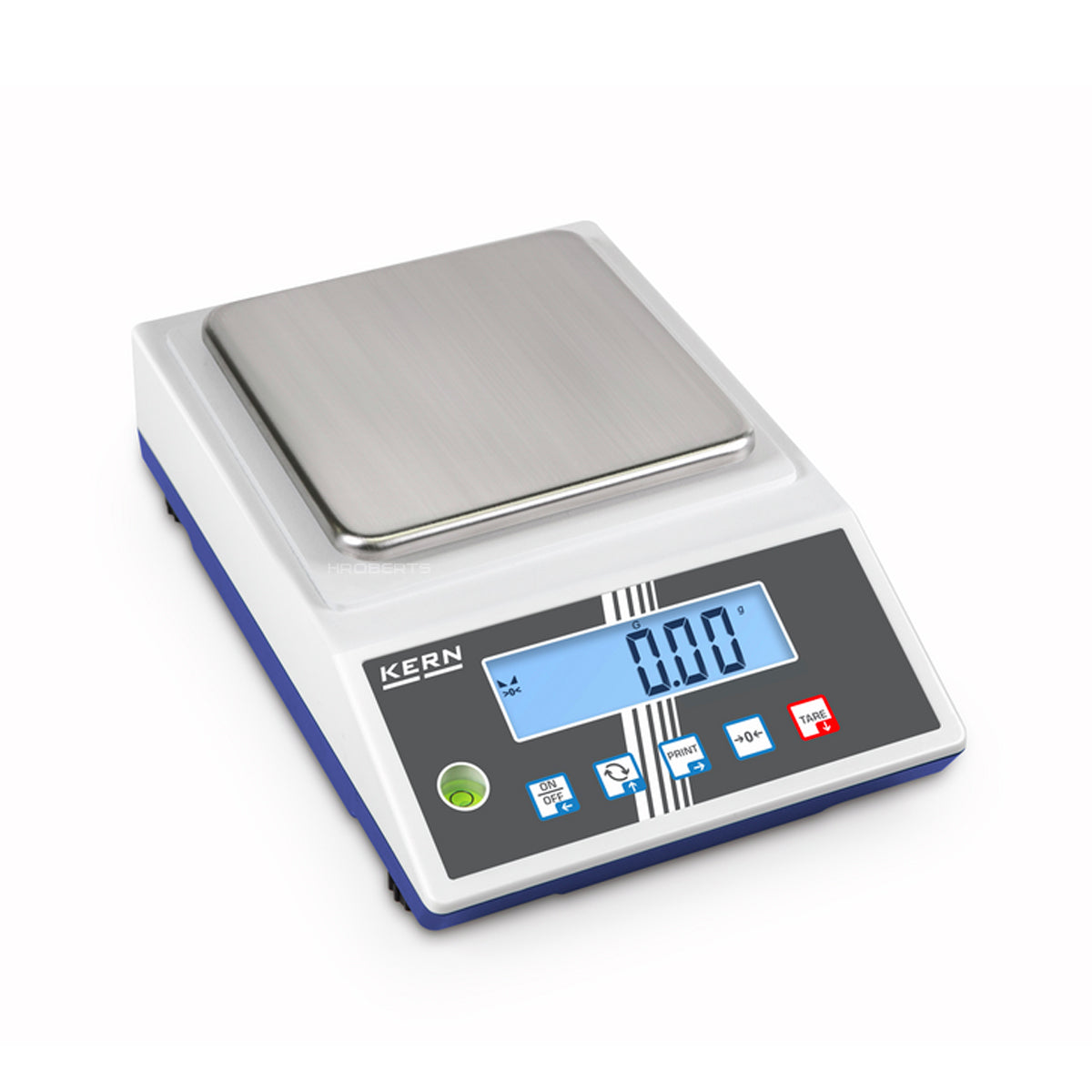

Kern PCB 1000-2 Laboratory Standard Precision Balance (IOT Ready), Max Weighing Capacity 1000g, Resolution 0.01g
SKU:Code: PCB1000-2
Sale
Sold out
Regular price
£261.00
Save: 10%
Sold out
Sale price
£261.00
Regular price
£290.00
Excl. VAT
The standard in the laboratory, ideal for a wide range of applications for Industry 4.0. Compatible with school-specific software.
- Compatible with school-specific software solutions such as, for example, Vernier® or LabQuest®.
- Thanks to the KERN School Protocol, as part of technical experiments, weighing data can be transferred to a PC, laptop, etc. for evaluation and display using the USB data interface.
- KERN Universal Port (KUP): permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Compact Laboratory Balances
- display type Digital
- resolution 0.01g
- weighing capacity max 1000g
- weighing plate size 130x130mm
- data output Yes - Optional see notes
- measuring units kg / g / t / gn / dwt / tl (Tw) / tl (HK) / ozt / tl (Singap Malays) ct / mo/ lb / oz / ffa / tol / m
- tolerances Upper and Lower can be set
- brand Kern
- reproducibility 0.01g
- piece counting Yes
- percentage determination Yes - Determining the deviation in % from a target value
description
description
|
Adjusting program CAL For quick setting up of the balance’s accuracy. External adjusting weight required |
 |
KERN Universal Port (KUP) allows the connection of external KUP interface adapters, e.g. RS-232, RS-485, SB, Bluetooth, WIFI, Analogue, Ethernet etc. for the exchange of data and control commands, without installation effort |
|
KERN Communication Protocol (KCP) It is a standardized interface command set for KERN balances and other instruments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers and other digital system |
|
GLP/ISO log Printer With weight, date and time. Only with KERN printers. |
|
Piece counting Reference quantities selectable. Display can be switched from piece to weight |
|
Recipe level A The weights of the recipe ingredients can be added together and the total weight of the recipe can be printed out |
|
Percentage determination Determining the deviation in % from the target value (100 %) |
|
Weighing units Can be switched to e.g. nonmetric units. See balance model. Please refer to KERN’s website for more details |
|
Weighing with tolerance range (Checkweighing) Upper and lower limiting can be programmed individually, e.g. for sorting and dosing. The process is supported by an audible or visual signal, see the relevant model |
|
Hold function (Animal weighing program) When the weighing conditions are unstable, a stable weight is calculated as an average value |
 |
Suspended weighing - Load support with hook on the underside of the balance |
 |
Battery operation Ready for battery operation. The battery type is specified for each device |
|
Universal plug-in power supply with universal input and optional input socket adapters for EU, CH, GB, US |
|
Weighing principle Strain gauges Electrical resistor on an elastic deforming body |
|
Optional Extras
|
|
|
EasyTouch Suitable for the connection, data transmission and control through PC or tablet |
|
RS-232 Data interface To connect the balance to a printer, PC or network |
|
USB Data interface To connect the balance to a printer, PC or other peripherals |
|
Bluetooth* Data interface To transfer data from the balance to a printer, PC or other peripherals |
|
WIFI Data interface To transfer data from the balance to a printer, PC or other peripherals |
|
Network interface For connecting the scale to an Ethernet network |
|
Rechargeable battery pack |
|
DAkkS calibration is possible at extra cost |
