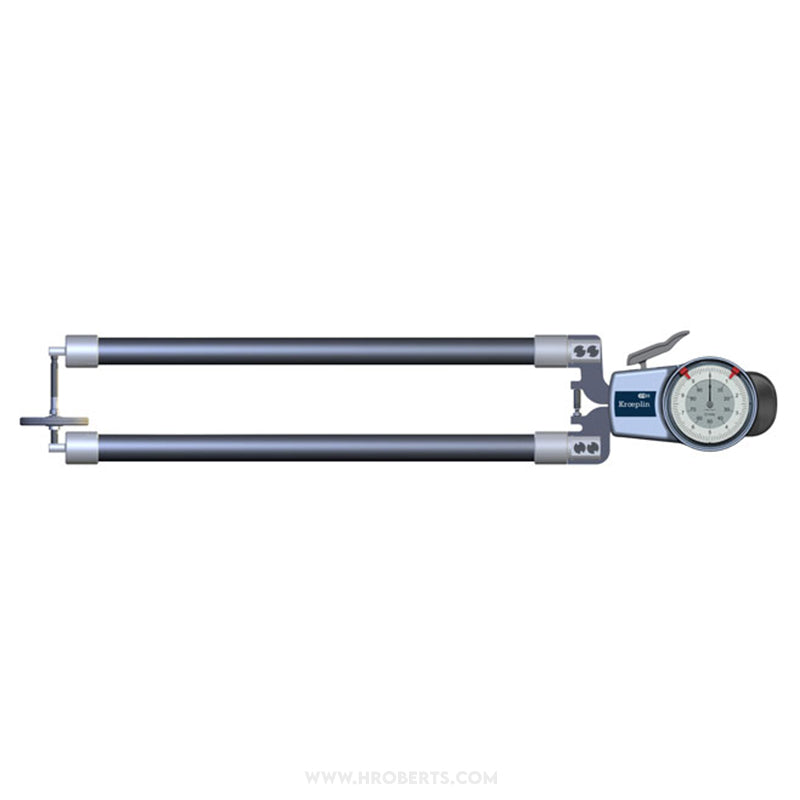

D12100T External Caliper Gauge, Range 0-100mm, Graduation 0.1mm, Measuring Depth 550mm, Measuring Contact Flat 50mm

SKU:Code: D12100T

Sale Sold out Regular price £1,237.00
Save:  Sold out Sale price £1,237.00 Regular price £1,237.00
Excl. VAT
Mechanical Length Measuring Instrument for External Measuements
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type External
  • range 0-100mm
  • display type Non-Digital
  • graduations 0.1mm
  • ip rating IP65
  • measuring units Metric
  • type of measuring contact moveable Flat 50mm Diameter
  • measuring contact moveable hb 34mm
  • type of-measuring-contact fixed Flat 50mm Diameter
  • type of-measuring-contact fixed hf 14mm

Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
