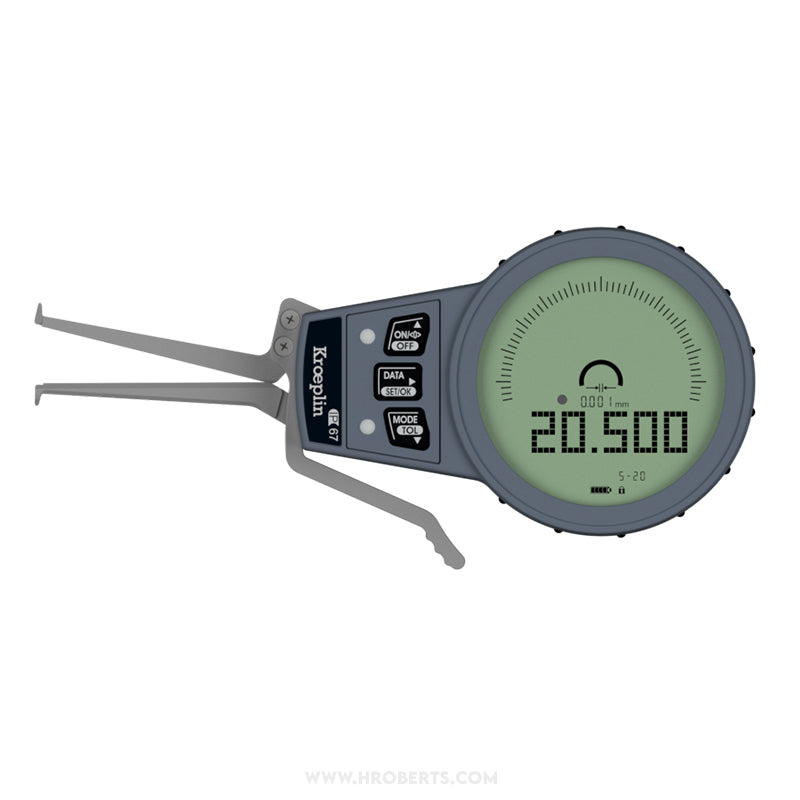

G005 Digital Internal Caliper Gauge, Range 5-20mm, Resolution 0.001, 0.002, 0.005, 0.01mm, Measuring Depth 44mm, Measuring Contact Ball 0.6mm Diameter, IP67 Protection, Metric / Imperial Switchable

SKU:Code: G005

Sale Sold out Regular price £495.00
Save:  Sold out Sale price £495.00 Regular price £495.00
Excl. VAT
Electronic Length Measuring Instrument for Internal Measuements
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Internal
  • range 5-20mm
  • display type Digital
  • resolution 0.001 0.002 0.005 0.01mm
  • ip rating IP67
  • max grove depth 2.2mm
  • max measuring depth 44mm / 1.73"
  • measuring units Metric / Imperial
  • max permissible errors 0.01mm
  • repeatability 0.005mm
  • range imperial 0.20-0.79"
  • resolution imperial 0.0001 0.0002 0.0005"
  • measuring contact moveable hb 2.2mm
  • min groove width 0.8mm
  • measuring contact Ball 0.6mm Diameter
  • drawing 2

Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
