Kroeplin

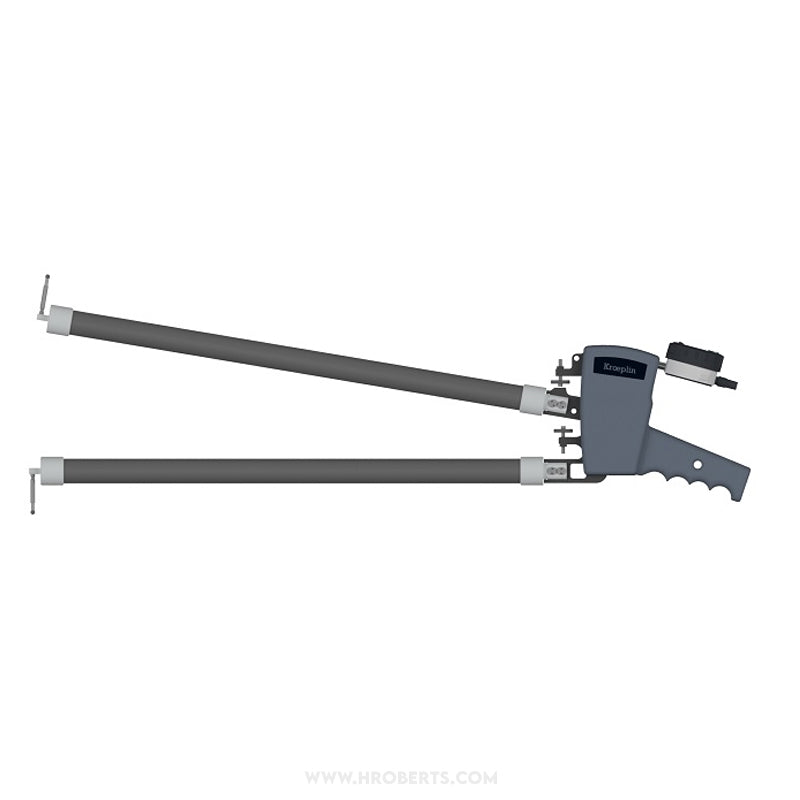

G12150 Digital Internal Caliper Gauge, Range 150-250mm, Resolution 0.1mm, Measuring Depth 535mm, Measuring Contact Ball 5mm Diameter
SKU:Code: G12150
Sale
Sold out
Regular price
£1,528.00
Save:
Sold out
Sale price
£1,528.00
Regular price
£1,528.00
Excl. VAT
Electronic Length Measuring Instrument for Internal Measuements
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Internal
- range 150-250mm
- display type Digital
- resolution 0.1mm
- ip rating IP67
- max grove depth 29.0mm
- max measuring depth 535mm
- measuring units Metric
- max permissible errors 0.3mm
- repeatability 0.3mm
- measuring contact moveable hb 30.0mm
- min groove width 5.0mm
- measuring contact Ball 5mm Diameter
- drawing 19
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
technical drawings
PDF downloads
accessories
