Specification
Specification
- type Internal
- range 90-190mm
- display type Digital
- resolution 0.1mm
- ip rating IP67
- max grove depth 12.0mm
- max measuring depth 535mm
- measuring units Metric
- max permissible errors 0.3mm
- repeatability 0.3mm
- measuring contact moveable hb 13.0mm
- min groove width 5.0mm
- measuring contact Ball 5mm Diameter
- drawing 19
- brand Kroeplin
description
description

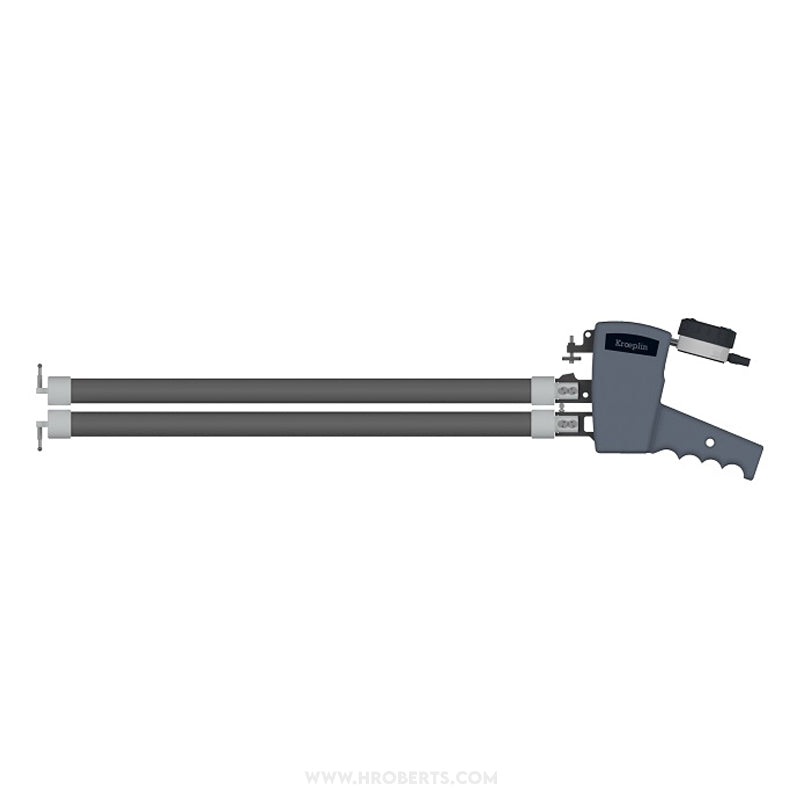

Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
