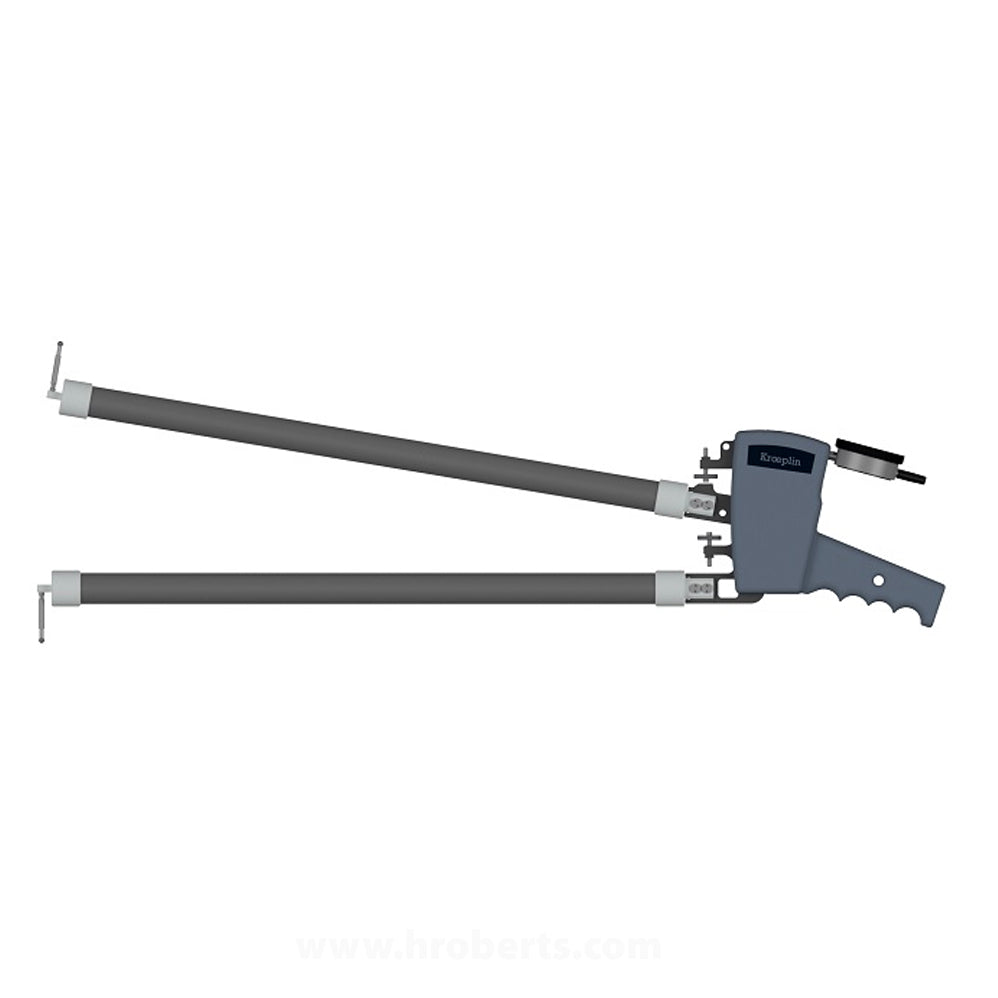

H12150 Internal Caliper Gauge, Range 150-250mm, Graduation 0.1mm, Measuring Depth 535mm, Measuring Contact Ball 5mm Diameter

SKU:Code: H12150

Sale Sold out Regular price £1,153.00
Save:  Sold out Sale price £1,153.00 Regular price £1,153.00
Excl. VAT
Mechanical Length Measuring Instrument for External Measuements
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Internal
  • range 150-250mm
  • display type Non-Digital
  • graduations 0.1mm
  • ip rating spec_ip_rating
  • max grove depth 29.0mm
  • measuring units Metric
  • measuring contact moveable hb 30.0mm
  • type of-measuring-contact fixed hf 30.0mm
  • min groove width 5.0mm
  • measuring contact Ball 5mm Diameter

Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
