Specification
Specification
- type Internal
- range 80-100mm
- display type Non-Digital
- graduations 0.01mm
- ip rating IP65
- max grove depth 8.3mm
- measuring units Metric
- measuring contact moveable hb 8.5mm
- type of-measuring-contact fixed hf 8.5mm
- min groove width 1.5mm
- measuring contact Ball 1mm Diameter
description
description

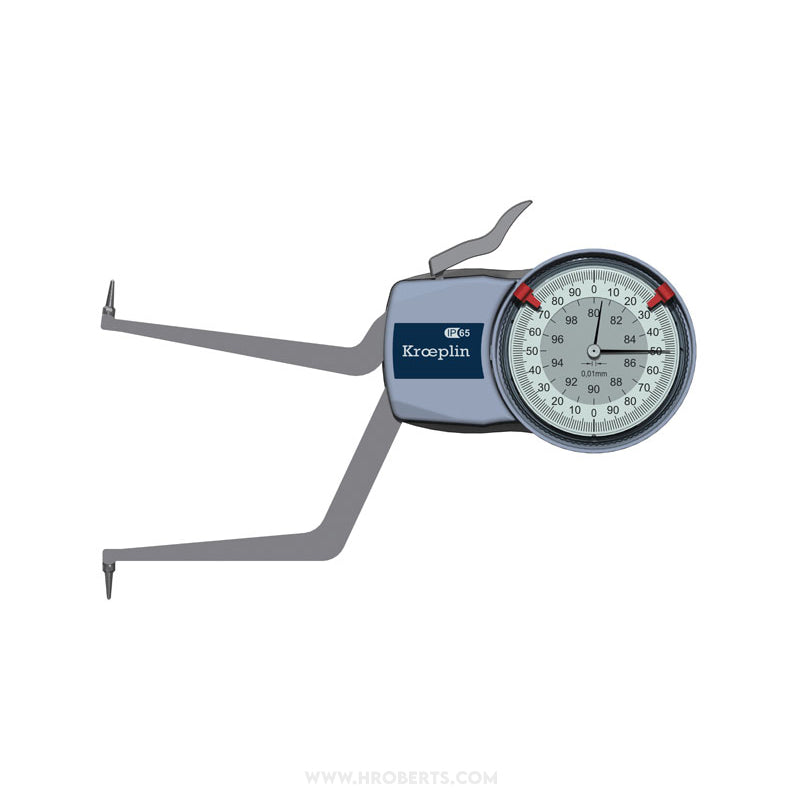

Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
