Images are for illustration purposes only - Products may differ.

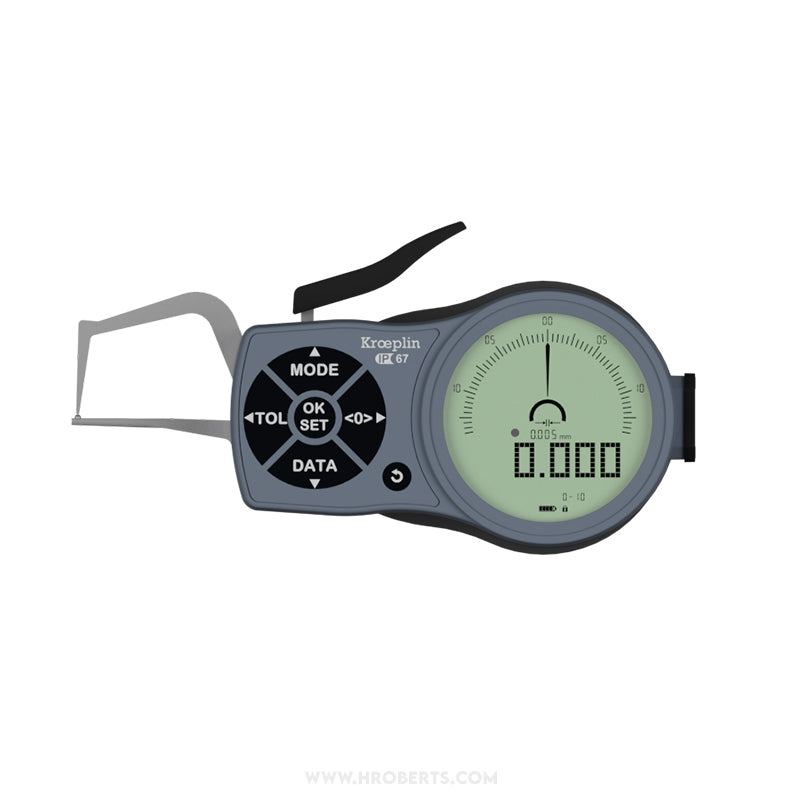

K1R10S Digital External Caliper Gauge, Range 0-15mm, Resolution 0.001, 0.002, 0.005, 0.01, 0.02, 0.05mm, Measuring Depth 35mm, Measuring Contact Chisel R 0.4mm, Ball 1.5mm Diameter, IP67 Protection, Metric / Imperial Switchable

SKU:Code: K1R10S

Sale Sold out Regular price £442.00
Save:  Sold out Sale price £442.00 Regular price £442.00
Excl. VAT
Electronic Length Measuring Instrument for External Measuements
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type External
  • range 0-10mm
  • display type Digital
  • resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
  • ip rating IP67
  • max measuring depth 35mm / 1.37"
  • measuring units Metric / Imperial
  • max permissible errors 0.015mm
  • repeatability 0.005mm
  • range imperial 0-0.39"
  • resolution imperial 0.00005 0.0001 0.0002 0.0005 0.001 0.002"
  • type of measuring contact moveable Chisel R = 0.4mm
  • measuring contact moveable hb 19.1mm
  • type of-measuring-contact fixed Ball 1.5mm Diameter
  • type of-measuring-contact fixed hf 0.9mm
  • min bore diameter 3mm
  • drawing 9

Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.

technical drawings
PDF downloads
