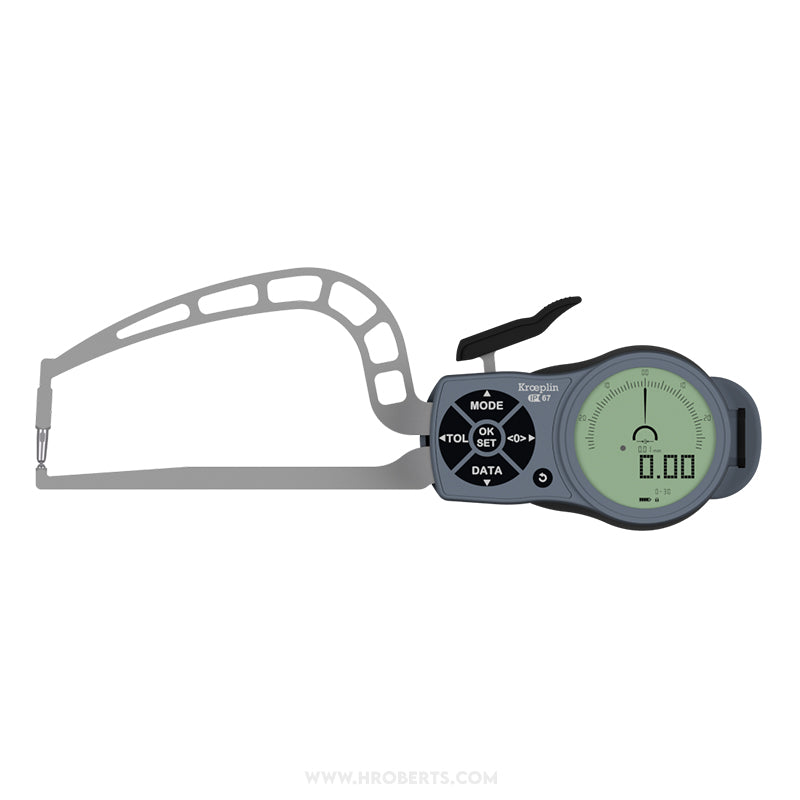

Specification
Specification
- type External
- range 0-30mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
- ip rating IP67
- max measuring depth 116mm / 4.6"
- measuring units Metric / Imperial
- max permissible errors 0.04mm
- repeatability 0.02mm
- range imperial 0-1.18"
- resolution imperial 0.00005 0.0001 0.0002 0.0005 0.001 0.002"
- type of measuring contact moveable Ball 3mm Diameter
- measuring contact moveable hb 30mm
- type of-measuring-contact fixed Ball 3mm Diameter
- type of-measuring-contact fixed hf 4mm
- min bore diameter 10mm
- drawing 10
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
