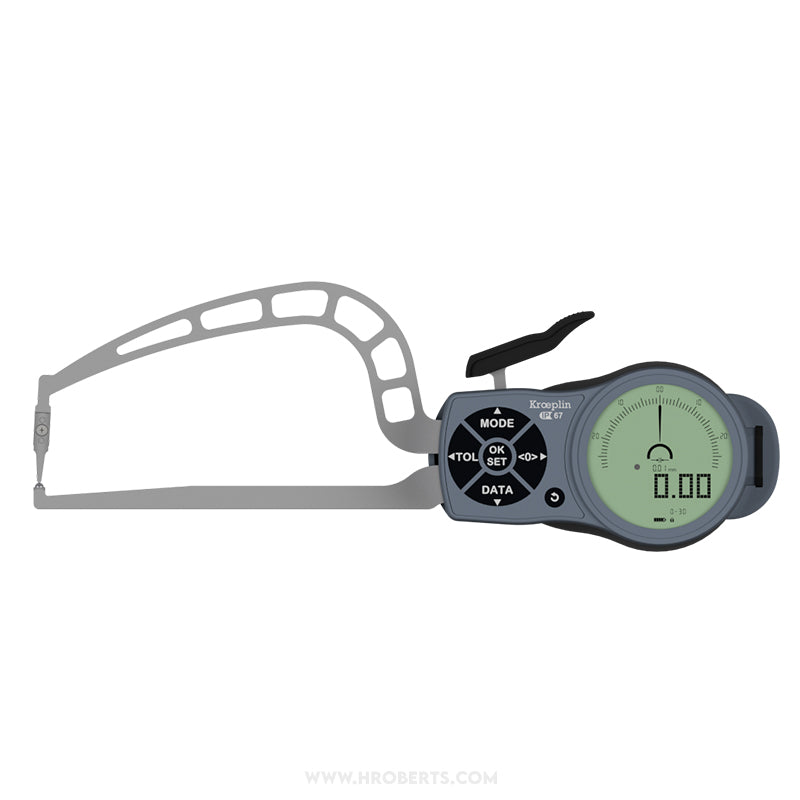

K3R30S Digital External Caliper Gauge, Range 0-30mm, Resolution 0.001, 0.002, 0.005, 0.01, 0.02, 0.05mm, Measuring Depth 116mm, Measuring Contact Chisel R 0.75mm, Ball 3mm Diameter, IP67 Protection, Metric / Imperial Switchable

SKU:Code: K3R30S

Sale Sold out Regular price £442.00
Save:  Sold out Sale price £442.00 Regular price £442.00
Excl. VAT
Electronic Length Measuring Instrument for External Measuements
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type External
  • range 0-30mm
  • display type Digital
  • resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
  • ip rating IP67
  • max measuring depth 116mm / 4.6"
  • measuring units Metric / Imperial
  • max permissible errors 0.04mm
  • repeatability 0.02mm
  • range imperial 0-1.18"
  • resolution imperial 0.00005 0.0001 0.0002 0.0005 0.001 0.002"
  • type of measuring contact moveable Chisel R = 0.75mm
  • measuring contact moveable hb 30mm
  • type of-measuring-contact fixed Ball 3mm Diameter
  • type of-measuring-contact fixed hf 4mm
  • min bore diameter 10mm
  • drawing 11

Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
