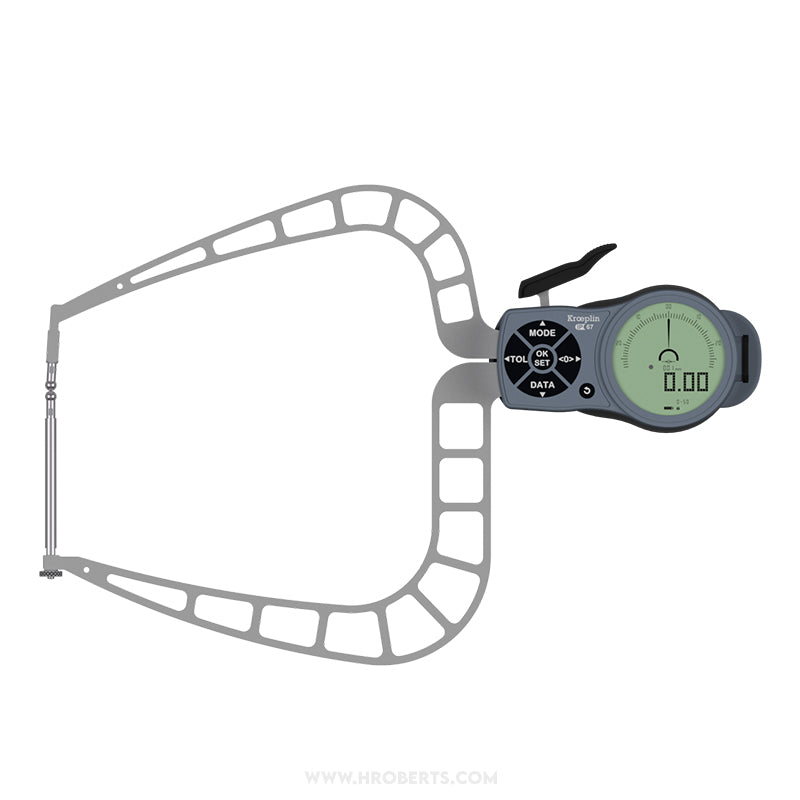

Specification
Specification
- type External
- range 0-50mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
- max measuring depth 167mm / 6.6"
- measuring units Metric / Imperial
- max permissible errors 0.06mm
- repeatability 0.04mm
- range imperial 0-1.97"
- resolution imperial 0.00005 0.0001 0.0002 0.0005 0.001 0.002"
- type of measuring contact moveable 30mm
- type of-measuring-contact fixed 72.6mm
- measuring contact Ball 5mm Diameter
- drawing 6
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
