Specification
Specification
- type Internal
- range 70-90mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
- ip rating IP67
- max grove depth 8.5mm
- max measuring depth 84mm / 3.31"
- measuring units Metric / Imperial
- max permissible errors 0.02mm
- repeatability 0.01mm
- range imperial 2.76-3.54"
- resolution imperial 0.00005 0.0001 0.0002 0.0005 0.001 0.002"
- measuring contact moveable hb 12.2mm
- min groove width 1.6mm
- measuring contact Ball 1mm Diameter
- drawing 3
description
description

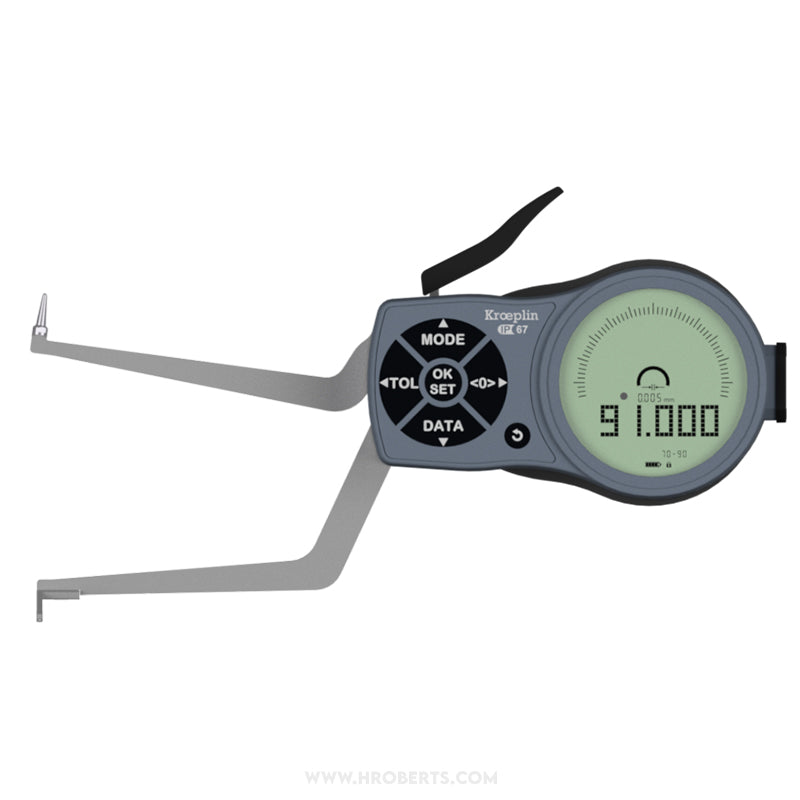

Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
