Kroeplin

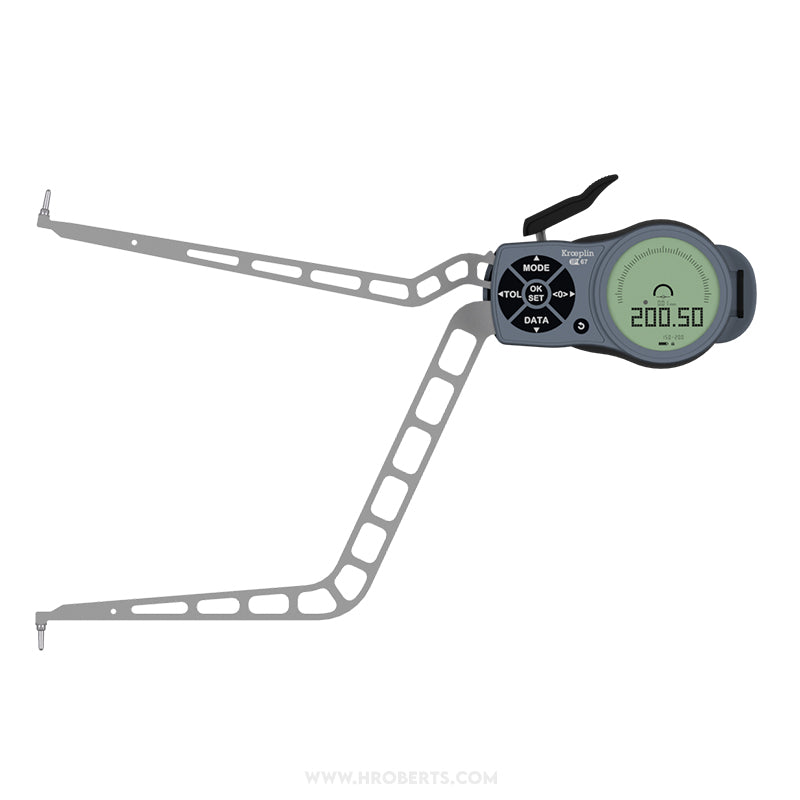

L4150 Digital Internal Caliper Gauge, Range 150-200mm, Resolution 0.001, 0.002, 0.005, 0.01, 0.02, 0.05mm, Measuring Depth 192mm, Measuring Contact Ball 2mm Diameter, IP67 Protection

SKU:Code: L4150

Sale Sold out Regular price £611.00
Save:  Sold out Sale price £611.00 Regular price £611.00
Excl. VAT
Electronic Length Measuring Instrument for Internal Measuements
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Internal
  • range 150-200mm
  • display type Digital
  • resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
  • ip rating IP67
  • max grove depth 8.3mm
  • max measuring depth 192mm
  • measuring units Metric
  • max permissible errors 0.05mm
  • repeatability 0.05mm
  • measuring contact moveable hb 8.5mm
  • min groove width 2.4mm
  • measuring contact Ball 2mm Diameter
  • drawing 5
description

Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
