Specification
Specification

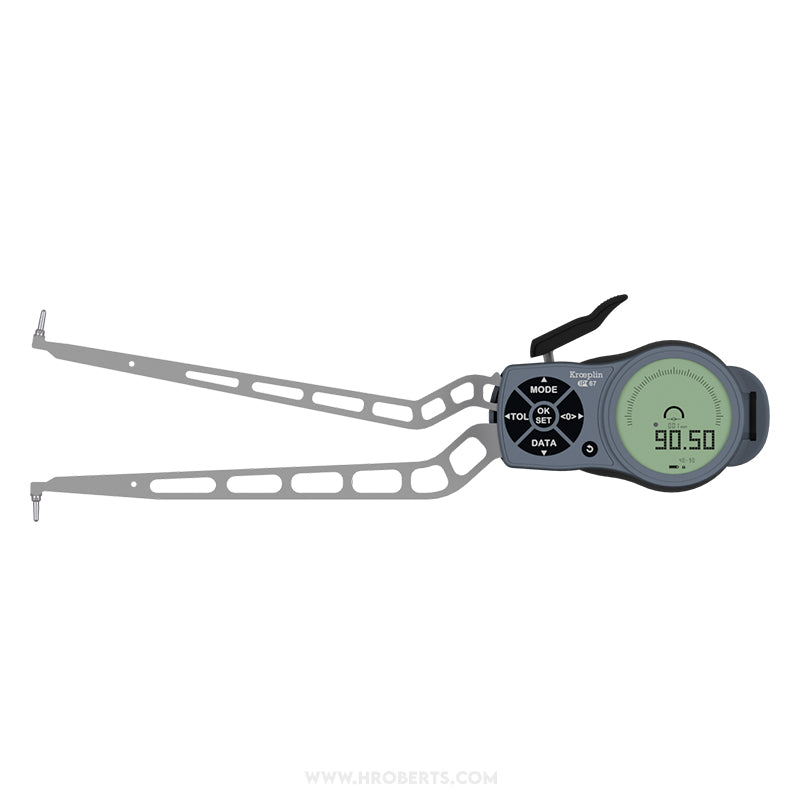

- type Internal
- range 40-90mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
- ip rating IP67
- max grove depth 8.3mm
- max measuring depth 192mm / 7.6"
- measuring units Metric / Imperial
- max permissible errors 0.05mm
- repeatability 0.03mm
- range imperial 1.57-3.54"
- resolution imperial 0.00005 0.0001 0.0002 0.0005 0.001 0.002"
- measuring contact moveable hb 8.5mm
- min groove width 2.5mm
- measuring contact Ball 2mm Diameter
- drawing 5
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
