Kroeplin

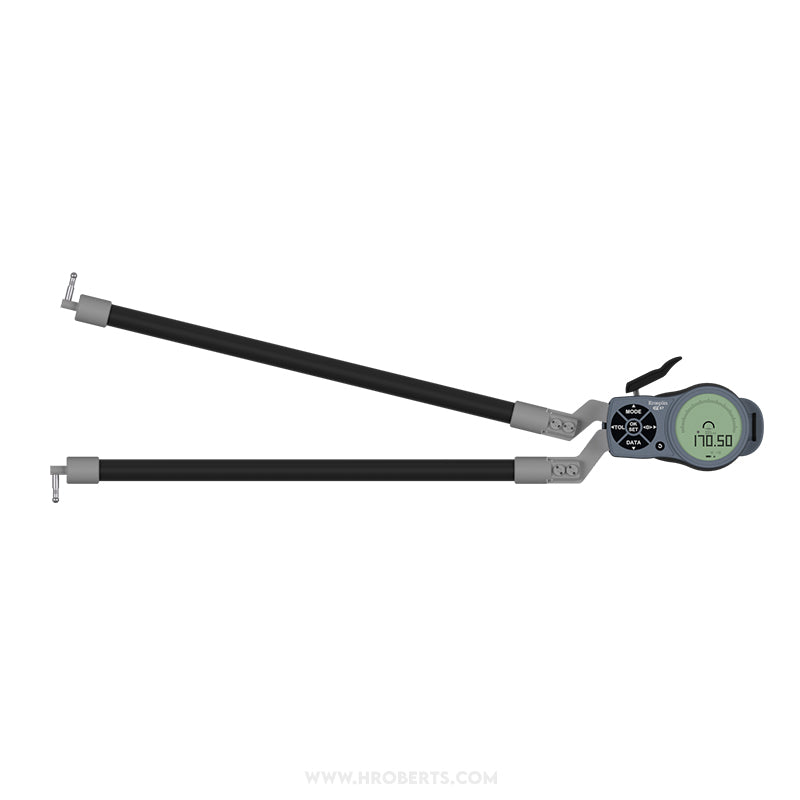

L870 Digital Internal Caliper Gauge, Range 70-170mm, Resolution 0.001, 0.002, 0.005, 0.01, 0.02, 0.05mm, Measuring Depth 395mm, Measuring Contact Ball 5mm Diameter, IP67 Protection
SKU:Code: L870
Sale
Sold out
Regular price
£1,001.00
Save:
Sold out
Sale price
£1,001.00
Regular price
£1,001.00
Excl. VAT
Electronic Length Measuring Instrument for Internal Measuements
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Internal
- range 70-170mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
- ip rating IP67
- max grove depth 13.0mm
- max measuring depth 395mm
- measuring units Metric
- max permissible errors 0.15mm
- repeatability 0.15mm
- measuring contact moveable hb 14.0mm
- min groove width 5.0mm
- measuring contact Ball 5mm Diameter
- drawing 19
description
description
Wherever geometric complexity rules out the use of conventional equipment such as calipers or internal micrometers, Kroeplin gauges are the perfect and inexpensive solution. Mechanical and electronic lever gauges are used in the metalworking industry and many other sectors.
