Images are for illustration purposes only - Products may differ.

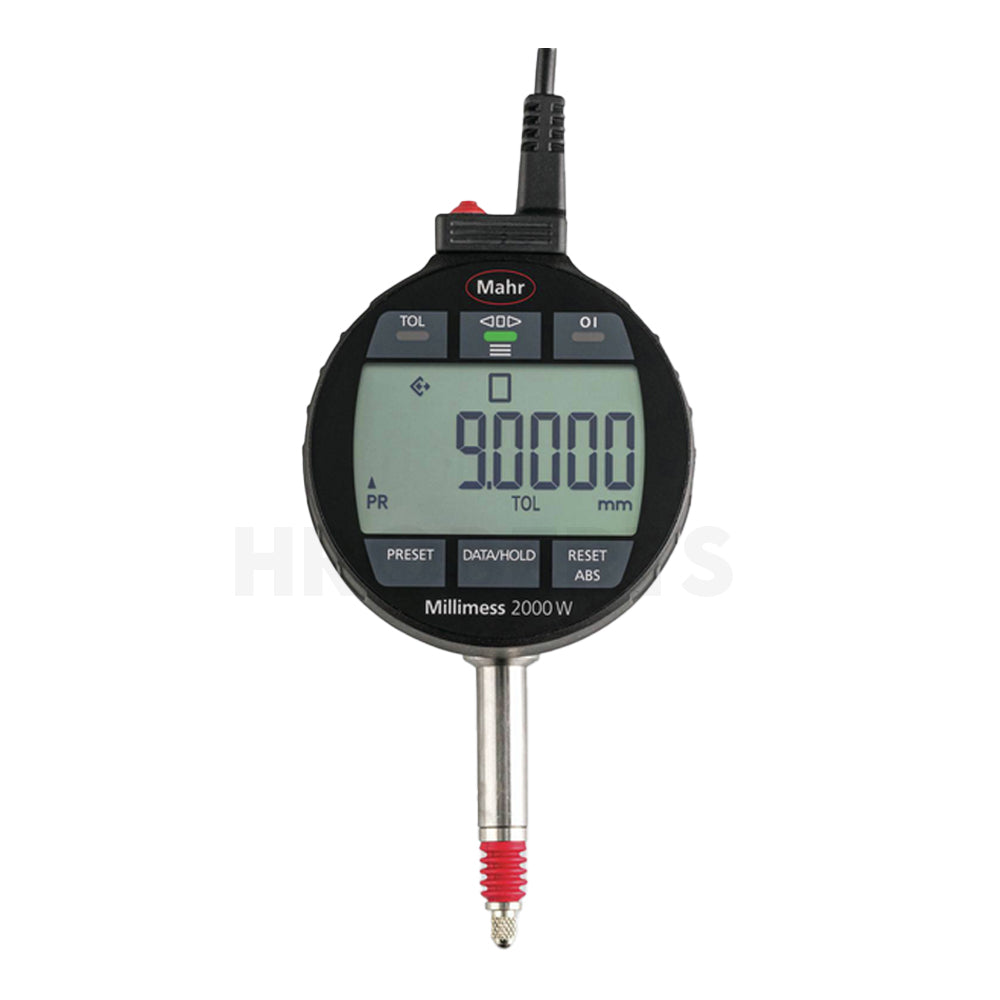

Mahr 4346700 Millimess 2000W Digital Comparator, Graduation 0.0001mm / 000005", Range ± 1mm
SKU:Code: 4346700
Sale
Sold out
Regular price
£527.00
Save: 20%
Sold out
Sale price
£527.00
Regular price
£658.00
Excl. VAT
Inductive dial comparator
IP protection category: IP 64
Data interface: USB, Digimatic
Factory standard
Measuring span in mm: ± 1 mm
Resolution: 0.0001, 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .000005", .00001", .00002", .00005", .0001", .0002", .0005"
Supply voltage: 100-240 V
Package contains: USB data and charging cable type DK-U1, Plug-in power supply (with 4 interchangeable adapters) for USB, rubber bellows, Screwdriver for pre-stroke adjustment (hexagon socket 0.9 mm), test certificate, instruction manual, Cardboard box
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Indicator
- display type Digital
- resolution 0.0001mm / 0.000005"
- data output Yes
- ip rating IP64
- measuring units Metric / Imperial
- stem dia 8mm
- contact point thread M2.5
- travel 1mm
- travel 2.5mm
- brand Mahr
description
description
For Static Measuring Tasks
Inductive dial comparator
IP protection category: IP 64
Data interface: USB, Digimatic
Factory standard
Measuring span in mm: ± 1 mm
Resolution: 0.0001, 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .000005", .00001", .00002", .00005", .0001", .0002", .0005"
Supply voltage: 100-240 V
Package contains: USB data and charging cable type DK-U1, Plug-in power supply (with 4 interchangeable adapters) for USB, rubber bellows, Screwdriver for pre-stroke adjustment (hexagon socket 0.9 mm), test certificate, instruction manual, Cardboard box
technical drawings
PDF downloads
accessories
