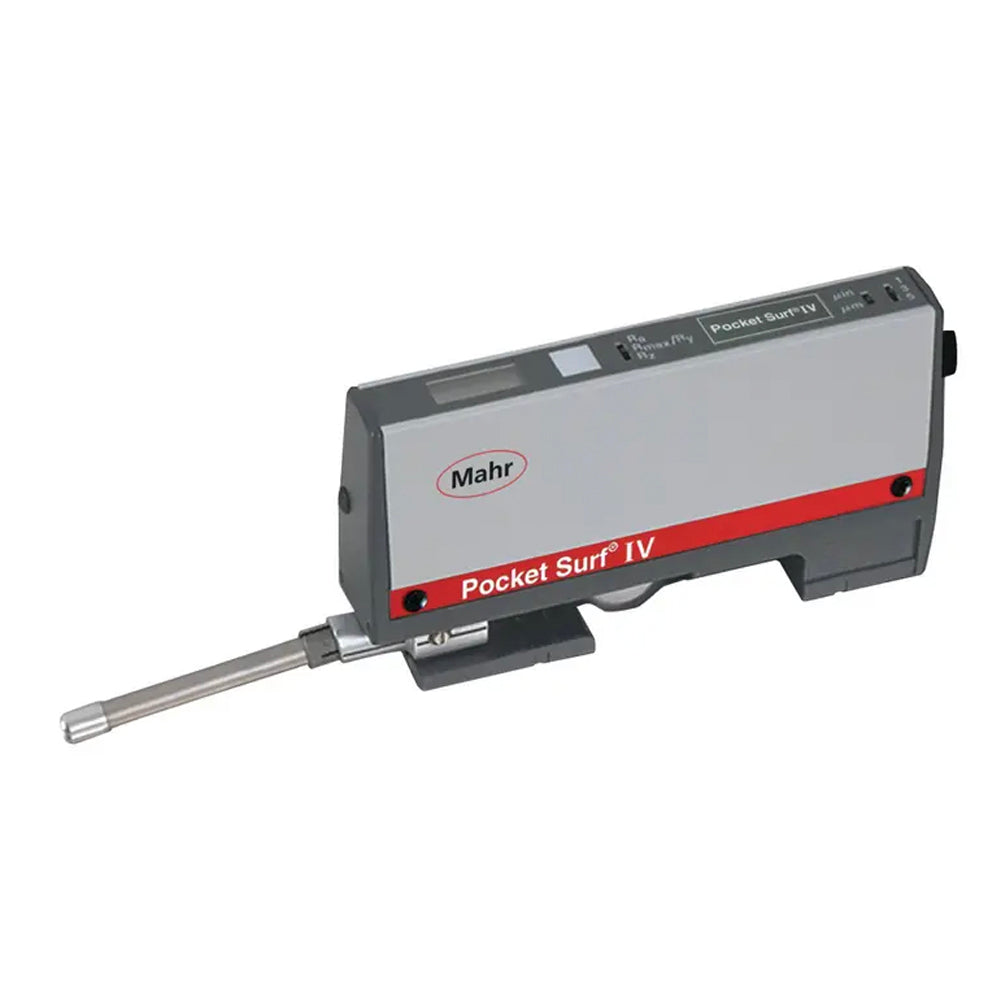

Mahr 2191800 MarSurf Pocket Surf IV - 10μm Portable Surface Roughness Tester, Imperial / Metric, Radius 10μm
SKU:Code: 2191800
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mahr
- type Standard
- style Skidded
- tip radius 10 Micron
Mahr MarSurf Pocket Surf IV Portable Surface Roughness Tester – 10µm Stylus
The Mahr MarSurf Pocket Surf IV is a compact and portable surface roughness tester designed for fast, accurate surface finish measurement in production, inspection, and laboratory environments. Delivering reliable and traceable roughness measurements directly at the point of manufacture, it combines ease of use with professional measurement capability in a rugged handheld design.
Featuring a 10µm stylus and robust cast aluminium housing, the Pocket Surf IV is ideal for workshop and quality control applications where durability, portability, and dependable measurement performance are essential. Its versatile probe positioning allows measurements on flat surfaces, external diameters, internal diameters, and other difficult-to-access features.
Key Features
- Portable surface roughness tester with 10µm stylus
- Measures four selectable roughness parameters: Ra, Rmax, Ry and Rz
- Displays all measured parameters after completion of the measurement cycle
- Adjustable measuring length based on 1x, 3x or 5x the 0.8mm cutoff wavelength
- Operates in horizontal, vertical and inverted positions
- Four selectable probe positions: axial, 90°, 180° and 270°
- Suitable for measuring internal and external diameters as well as flat surfaces
- MarConnect data output for easy transfer of measurement data
- Compatible with standard SPC and data collection systems
- Large LCD display showing results in µm or µinch
- Visual warnings for out-of-limit readings and low battery status
- Simplified digital calibration process
- Long battery life with easy-to-replace 9V battery
- Rugged cast aluminium housing for long-term reliability
Applications
- Surface finish inspection and verification
- Machining and manufacturing quality control
- Production process monitoring
- Incoming and final goods inspection
- Precision engineering and metalworking
Why Choose the Mahr MarSurf Pocket Surf IV
The MarSurf Pocket Surf IV provides professional surface roughness measurement in a compact, handheld format. Its robust construction, versatile probe positioning, multiple roughness parameters, and integrated MarConnect data output make it an excellent choice for engineers, inspectors, and manufacturers requiring reliable surface finish analysis wherever it is needed.
