Mahr 2191802 MarSurf Pocket Surf IV - 5μm Portable Surface Roughness Tester, Imperial / Metric, Radius 5μm
SKU:Code: 2191802
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mahr
- type Standard
- style Skidded
- tip radius 5 Micron

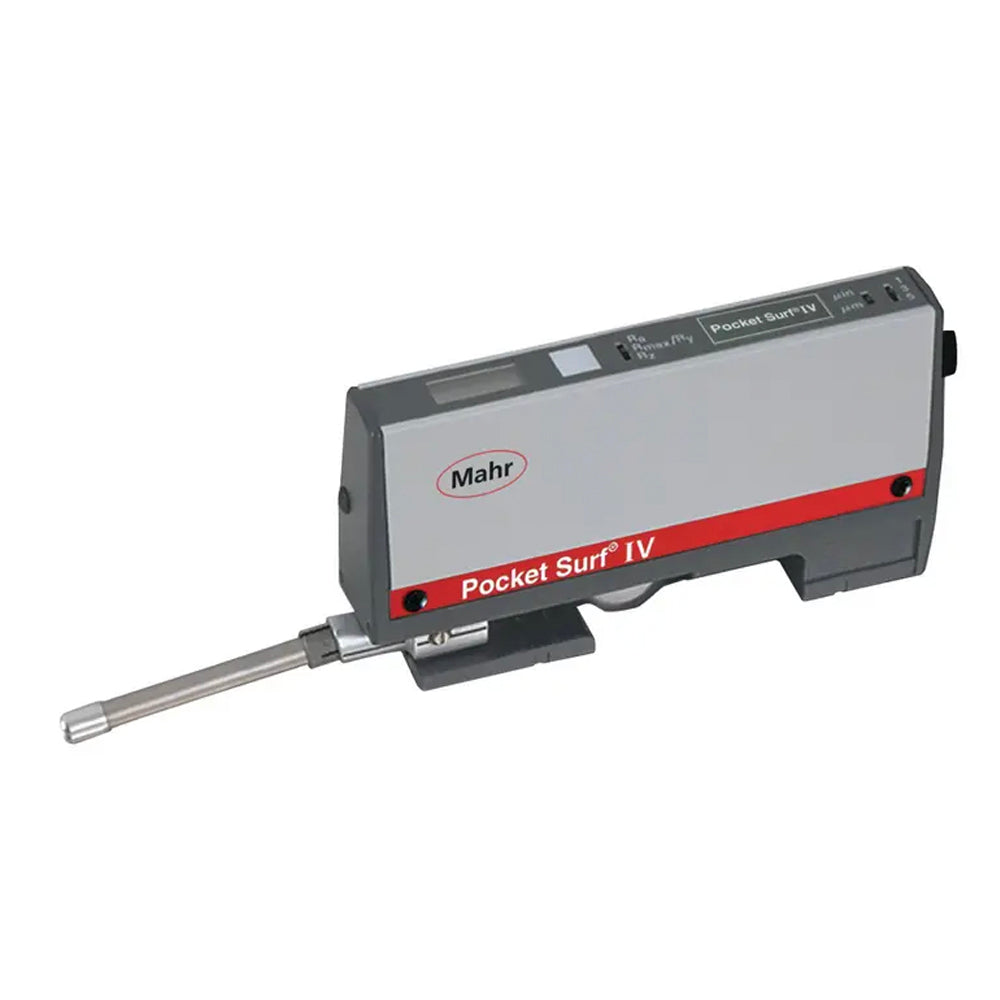

Mahr MarSurf Pocket Surf IV Portable Surface Roughness Tester
The Mahr MarSurf Pocket Surf IV is a compact and portable surface roughness tester designed for fast, accurate surface finish measurement in production, inspection, and laboratory environments. Combining simple operation with professional measurement capability, it provides reliable roughness analysis directly at the point of manufacture or inspection. Its rugged cast aluminium housing ensures long-term durability and dependable performance in demanding industrial environments.
Capable of measuring multiple roughness parameters and displaying results immediately after a scan, the MarSurf Pocket Surf IV is ideal for engineers, machinists, and quality control professionals who require fast and traceable surface finish measurement. Its versatile probe positioning allows measurements on flat surfaces, external diameters, internal diameters, and other difficult-to-access areas.
Key Features
- Portable surface roughness tester for workshop, production, and laboratory use
- Measures four selectable roughness parameters: Ra, Rmax, Ry, and Rz
- Displays all measured parameters after completion of the measurement cycle
- Adjustable measuring length based on 1x, 3x, or 5x the 0.8mm cutoff wavelength
- Operates in horizontal, vertical, and inverted positions
- Four selectable probe positions: axial, 90°, 180°, and 270°
- Suitable for measuring difficult-to-reach internal and external surfaces
- MarConnect data output for easy transfer of measurement data
- Compatible with common SPC and data recording systems
- Large LCD display showing results in µm or µinch
- Visual warnings for out-of-limit readings and low battery status
- Simplified digital calibration process
- Long battery life with easy-to-replace 9V battery
- Robust cast aluminium housing for long-term reliability
Applications
- Surface finish inspection and verification
- Machining and manufacturing quality control
- Incoming and final goods inspection
- Production process monitoring
- Precision engineering and metalworking
Why Choose the Mahr MarSurf Pocket Surf IV
The MarSurf Pocket Surf IV combines portability, durability, and professional roughness measurement capability in a compact handheld instrument. With multiple roughness parameters, flexible probe positioning, and integrated data output, it provides a practical solution for fast and reliable surface finish measurement across a wide range of industrial applications.
