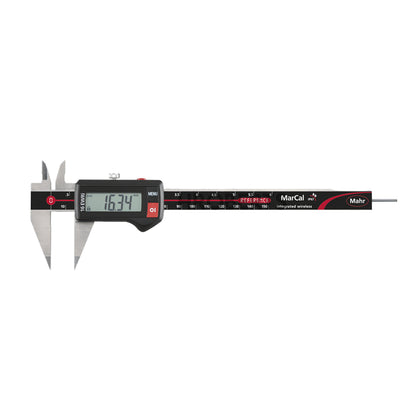

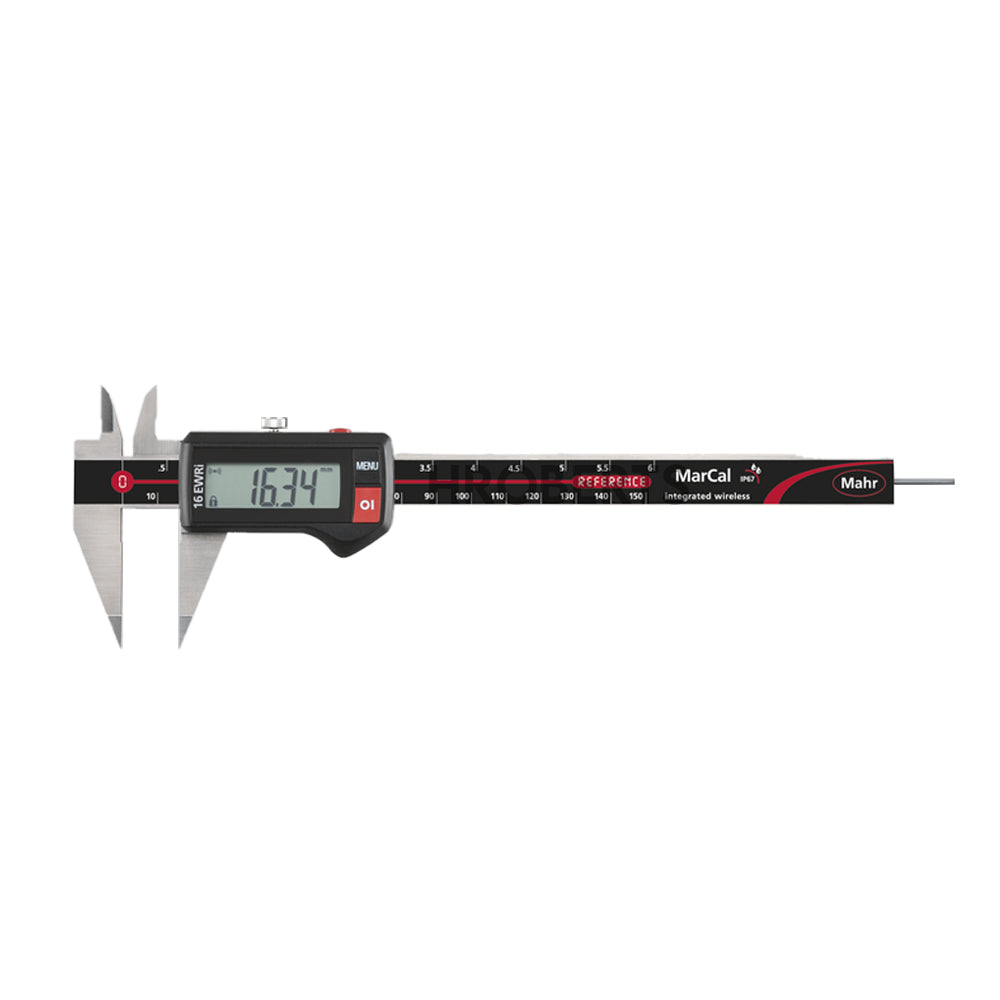

Mahr 4103375 16 EWRi-S IP67 Digital Point Caliper with Intergrated Data Output 0-150mm/6"
SKU:Code: 4103375
Sale
Sold out
Regular price
£471.42
Save: 10%
Sold out
Sale price
£471.42
Regular price
£523.80
Excl. VAT
Digital special calipers MarCal 16 EWRi-S
Measuring range mm: 0 - 150 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: Integrated Wireless
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Point
- range 0-150mm / 0-6"
- display type Digital
- resolution 0.01mm / 0.0005"
- data output Yes - Intergrated
- ip rating IP67
- measuring units Metric / Imperial
- brand Mahr
description
description
- High contrast digit display
- Locking screw above
- Lapped guideway
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Step measuring function
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide

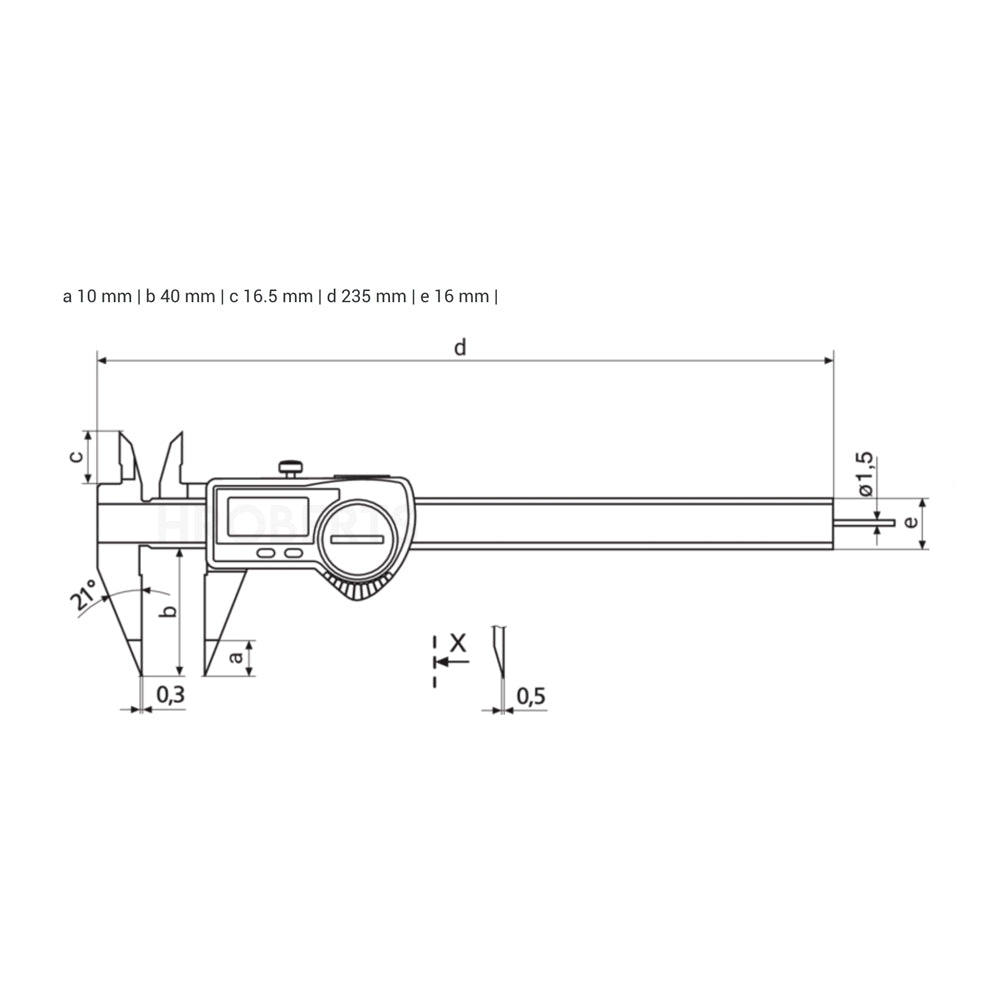

technical drawings
