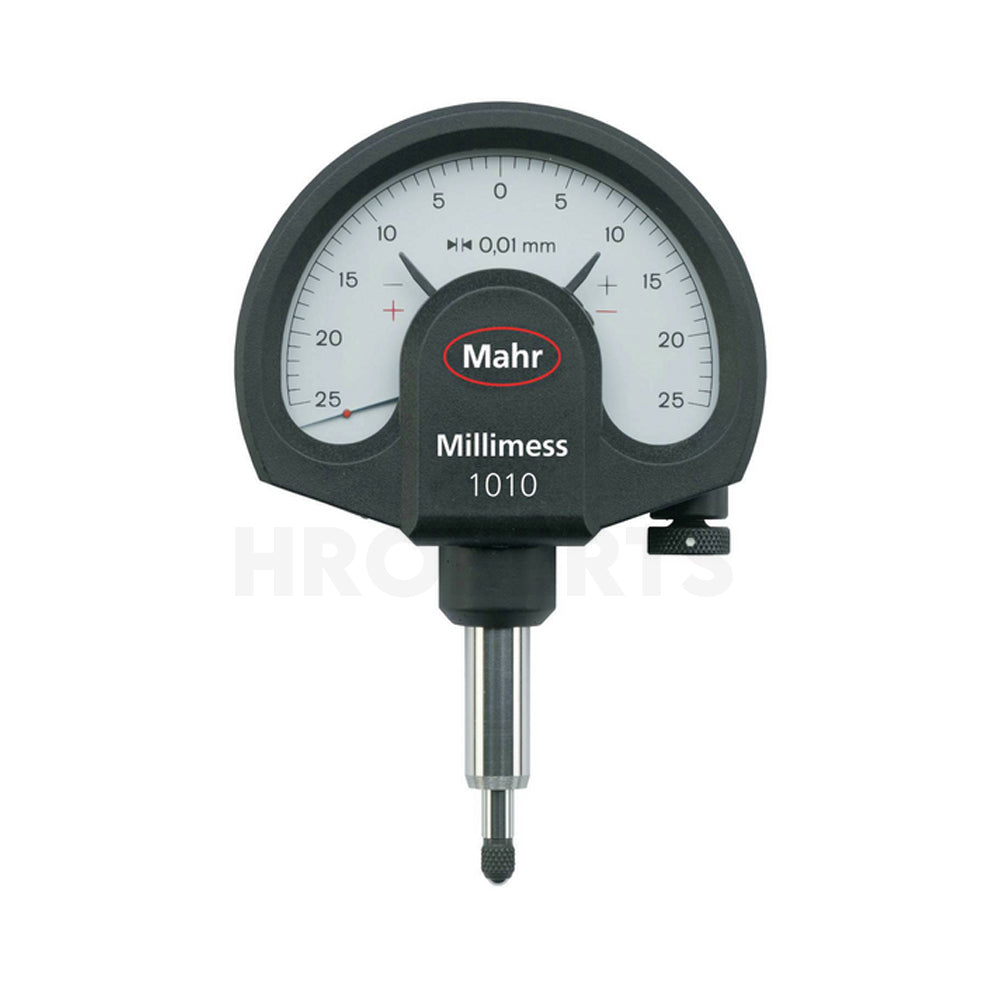

Mahr 4332000 Millimess 1010 Dial Comparator, Graduation 0.01mm, Range ± 25 µm, Scale 0-25-0
SKU:Code: 4332000
Sale
Sold out
Regular price
£131.00
Save: 21%
Sold out
Sale price
£131.00
Regular price
£165.00
Excl. VAT
Measuring range mm: ± 0.25 mm
Graduation value mm: 0.01
Package contains: test certificate, case
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Indicator
- range Range ± 25 µm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
- stem dia 8mm
- scale 25-0-25
- contact point thread M2.5
- travel 2.8mm
- brand Mahr
description
description
- Large, high contrast dial face
- Adjustable tolerance markers
- Lockable fine adjustment screw
- Shockproof movement
- Mounting shank and measuring spindle are both made of hardened stainless steel
- Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
- Resistant to lateral forces (side play) acting on the measuring spindle
- Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
- Box type protective housing
- Constant measuring force
- Measuring spindle can be retracted with either a screw in cable release or with a lifting knob
