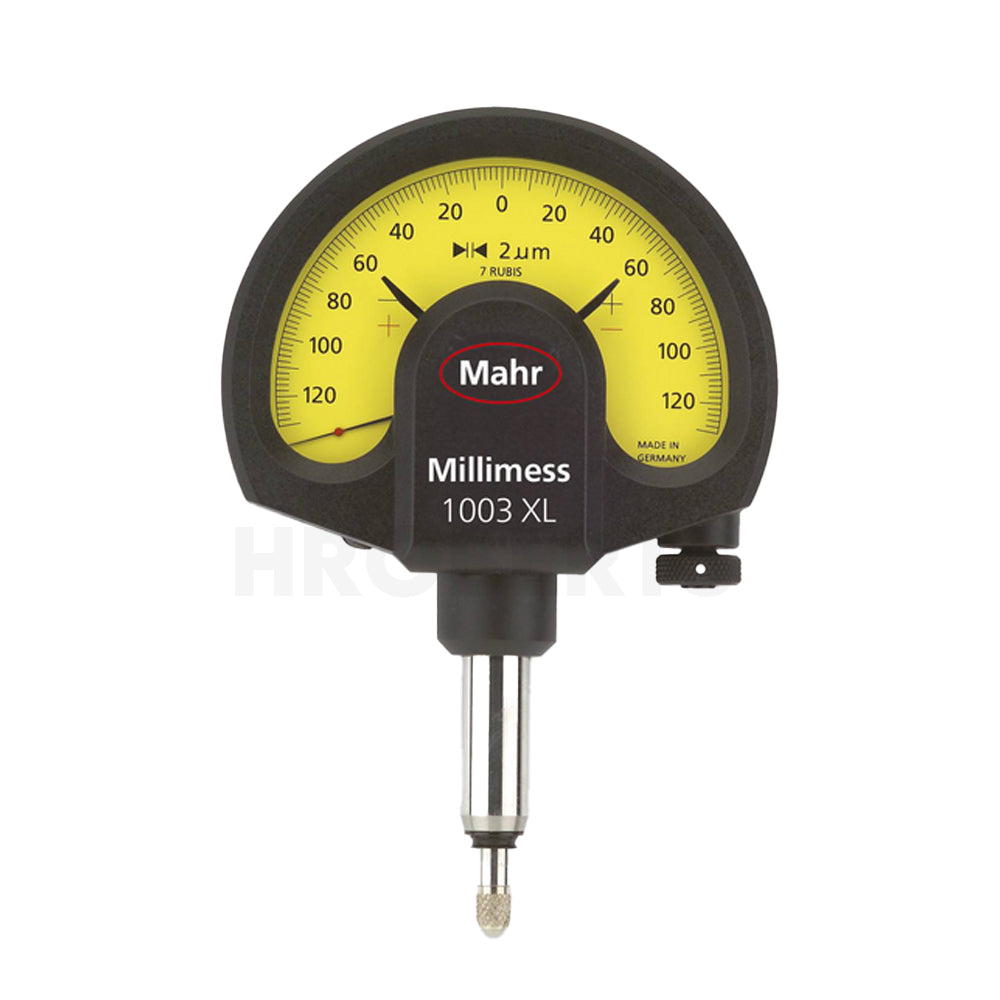

Mahr 4334001 Millimess 1003 XL Dial Comparator, Graduation 0.002mm, Range ± 130 µm, Scale 0-50-0
SKU:Code: 4334001
Sale
Sold out
Regular price
£175.00
Save: 21%
Sold out
Sale price
£175.00
Regular price
£221.00
Excl. VAT
Dial color: Yellow
Measuring range mm: ± 130 µm
Graduation value µm: 2 µm
Measuring force: 1 N
Package contains: test certificate, case
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Indicator
- range Range ± 130 µm
- display type Non-Digital
- graduations 0.002mm
- measuring units Metric
- stem dia 8mm
- scale 130-0-130
- contact point thread M2.5
- travel 2.8mm
- brand Mahr
description
description
- Large, high contrast dial face
- Adjustable tolerance markers
- Lockable fine adjustment screw
- Shockproof movement
- Mounting shank and measuring spindle are both made of hardened stainless steel
- Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
- Resistant to lateral forces (side play) acting on the measuring spindle
- Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
- Box type protective housing
- Constant measuring force
- Measuring spindle can be retracted with either a screw in cable release or with a lifting knob
