Mahr 4337720 MarCator 1086 Ri Digimatic Digital Indicator , Range 0.5" / 12.5mm, Resolution 0.00002" / 0.0005mm
SKU:Code: 4337720
Sale
Sold out
Regular price
£387.00
Save: 20%
Sold out
Sale price
£387.00
Regular price
£484.00
Excl. VAT

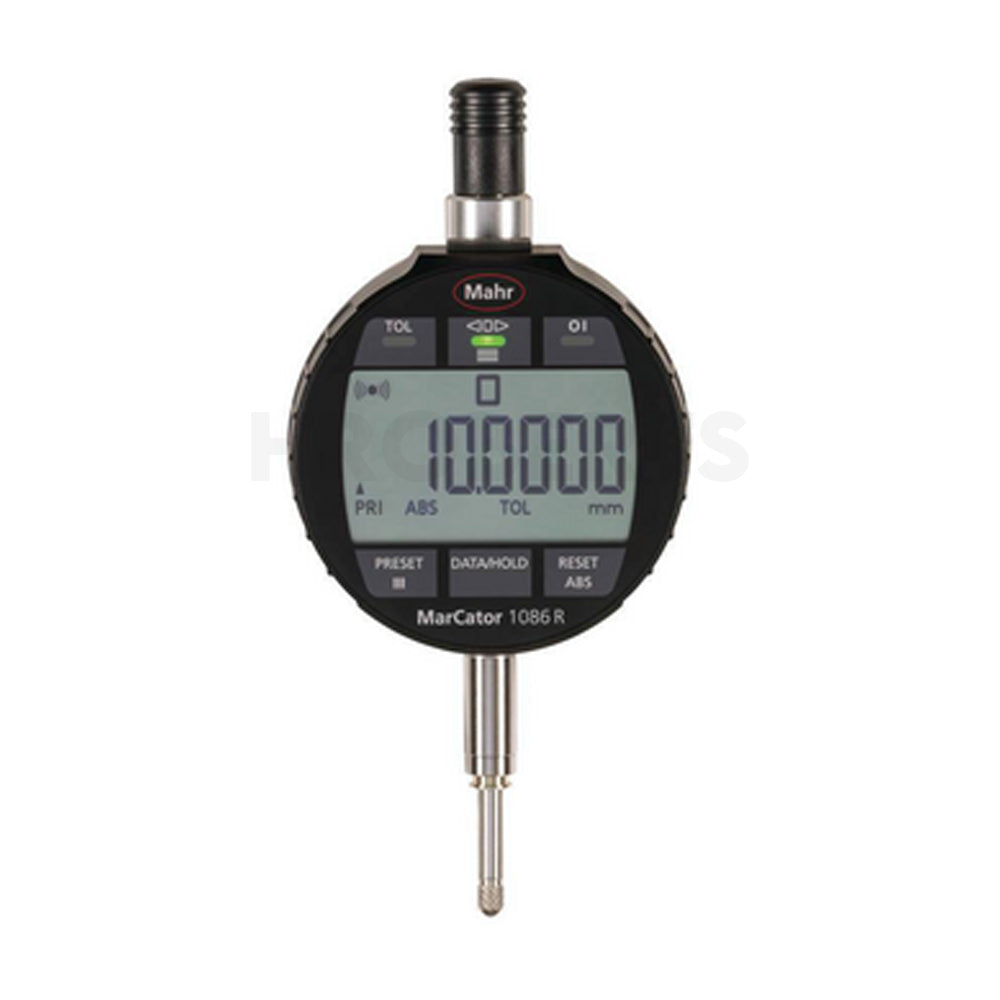

Digital indicator MarCator 1086 Ri
IP protection category: IP 42
Data interface: USB, Digimatic
Factory standard
Measuring span in mm: 12.5mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 0.5" / 12.5mm
- display type Digital
- resolution 0.001mm / 0.0005mm / 0.00005" / 0.00002"
- data output Yes
- ip rating IP42
- measuring units Imperial / Metric
- stem dia 8mm
- contact point thread M2.5
- brand Mahr
description
description
- Integrated wireless transmitter
- High-contrast LCD display
- Operating and display unit can be rotated 280deg
- Mounting shaft and measuring pin in hardened stainless steel
- Ready to measure immediately thanks to reference system
