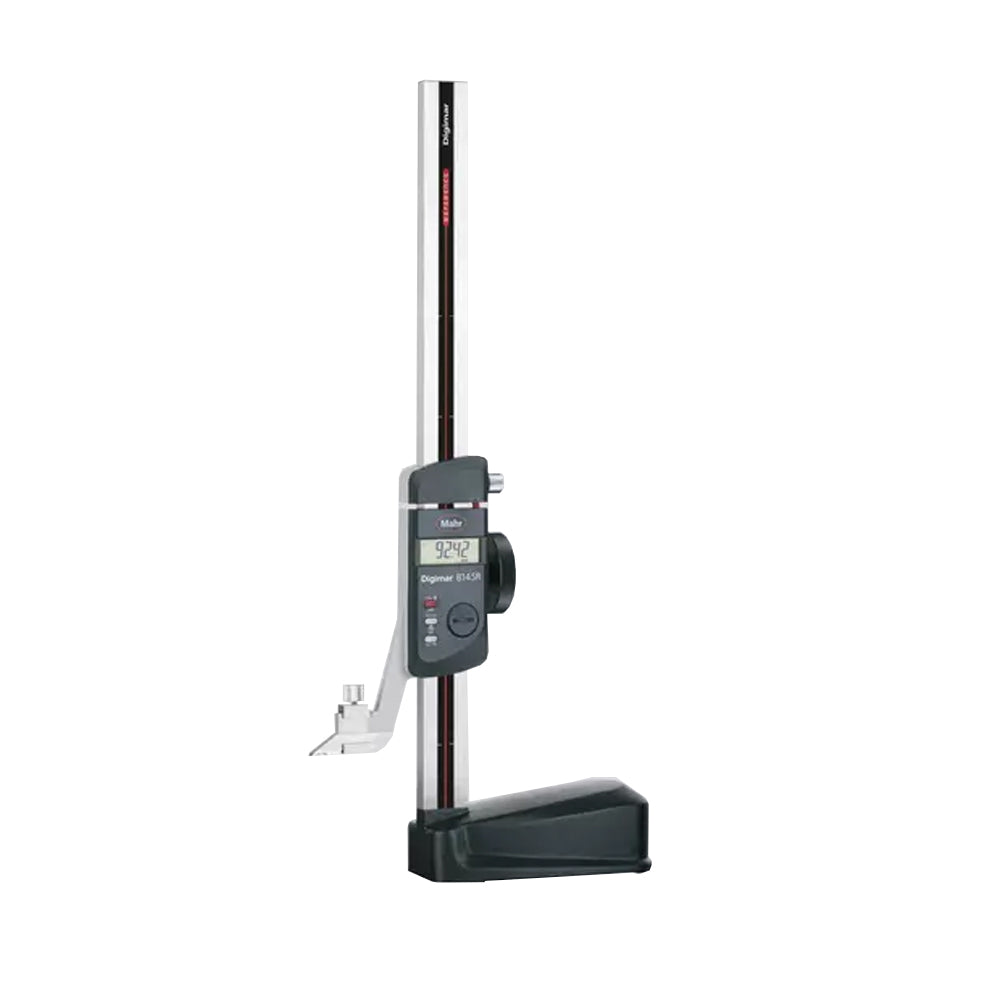

Mahr 4426100 Digimar 814 SR Digital Height Gauge, Range 0-350mm / 0-14", Resolution 0.01mm / 0.0005"
SKU:Code: 4426100
Sale
Sold out
Regular price
£557.50
Save: 20%
Sold out
Sale price
£557.50
Regular price
£698.00
Excl. VAT
Digital height gage Digimar 814 SR,
Measuring range mm: 0 - 350 mm,
0.01 mm / 0.0005 inch,
Error limit µm: 40 µm,
Data interface: Opto RS-232C, Digimatic, USB,
Package contains: scriber, battery, test certificate, instruction manual, Cardboard box
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Scribing
- range 0-350mm / 0-14"
- display type Digital
- resolution 0.01mm / 0.0005"
- data output Yes
- measuring units Metric / Imperial
description
description
- Up to 3 years’ battery life
- Travel speed 1.5 m/s (60”/s)
- MarConnect data output: optional
- USB
- OPTO RS232C
- Digimatic
- High contrast 12 mm high LCD display
- Sturdy, heavy-duty machine base
- Hardened and lapped contact surface which produces both a smooth and even movement
- Slide and rail are made of hardened stainless steel
- Handwheel for positioning and measuring
- Fine adjuster
- Locking screw
- Interchangeable measuring and scriber tips, carbide tipped
