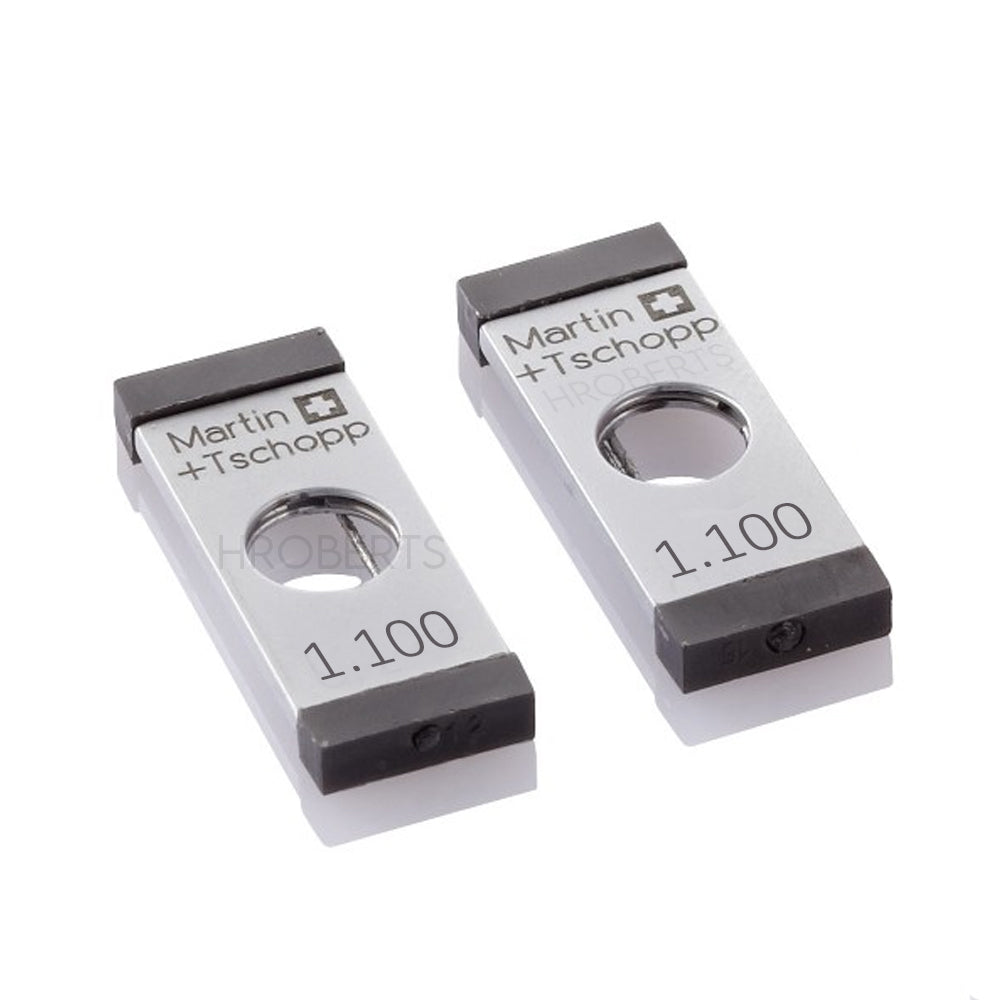

Martin + Tschopp 501-1.100 Three Wire Unit, 1.100mm Wire Dia, One Pair, Support Spindle Dia 6.35mm
SKU:Code: 501-1.100
Sale
Sold out
Regular price
£130.00
Sold out
Sale price
£130.00
Regular price
£130.00
Excl. VAT
The measuring wires are hardened and precision lapped. They are placed onto spindle and anvil of outside micrometer. The three-wire measuring process is applied to determine the pitch diameter of threads and considered as one of the most accurate measuring procedures.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Martin + Tschopp
- type Thread Wire
- spindle For micrometer spindle diameter 6.35 mm
- diameter 1.1mm
description
description
Thread Measuring Wires with Micrometer Holders – Diameter Series as per Zeiss
- Easy to handle holders including engraving of measuring wire diameter, pair of 3 measuring wires on 2 holders
- Tolerance 1 (± 1.0 μm)
- Made out of gauge steel
- The measuring wires are hardened and precision lapped. They are placed onto spindle and anvil of outside micrometer. The three-wire measuring process is applied to determine the pitch diameter of threads and considered as one of the most accurate measuring procedures.
