Images are for illustration purposes only - Products may differ.

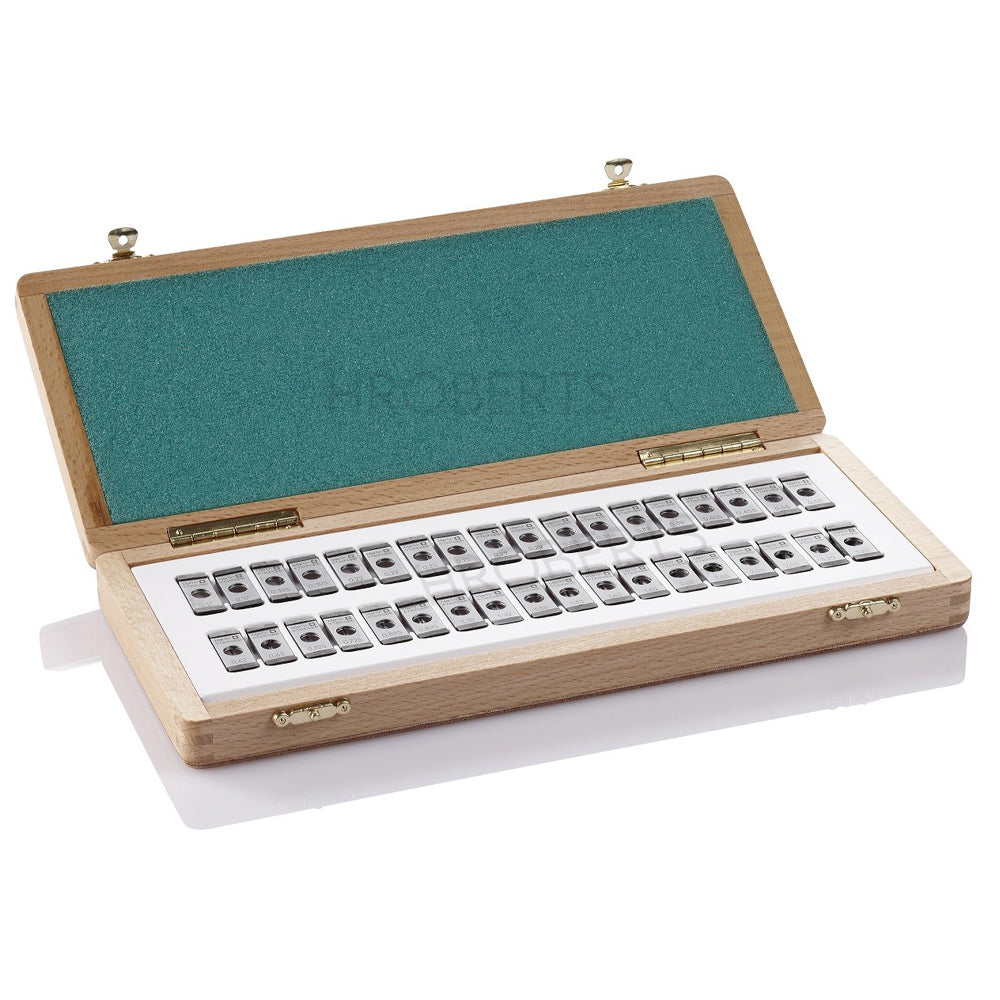

Martin + Tschopp Three Wire Unit Set, 0.17mm to 3.200mm Wire Dia, 18 Pairs, Support Spindle Dia 6.35mm
SKU:Code: 501-Set-0.170-3200
Sale
Sold out
Regular price
£2,300.00
Sold out
Sale price
£2,300.00
Regular price
£2,300.00
Excl. VAT
Thread Measuring Wires with Micrometer Holders – Diameter Series as per Zeiss
Easy to handle holders including engraving of measuring wire diameter, sets of 3 measuring wires on 2 holders.
Tolerance 1 (± 1.0 μm).
Made out of gauge steel
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Martin + Tschopp
- type Thread Wire
- range 0.170 - 3.200mm
- material Made out of gauge steel
- spindle For micrometer spindle diameter 6.35 mm
- remarks On request made to suit spindle diameter ; 6.50mm; 6.80mm; 7.50mm and 8.00mm - contact us
description
description
Thread Measuring Wires with Micrometer Holders – Diameter Series as per Zeiss
- Easy to handle holders including engraving of measuring wire diameter, sets of 3 measuring wires on 2 holders
- Tolerance 1 (± 1.0 μm)
- Made out of gauge steel
- The measuring wires are hardened and precision lapped. They are placed onto spindle and anvil of outside micrometer. The three-wire measuring process is applied to determine the pitch diameter of threads and considered as one of the most accurate measuring procedures.
