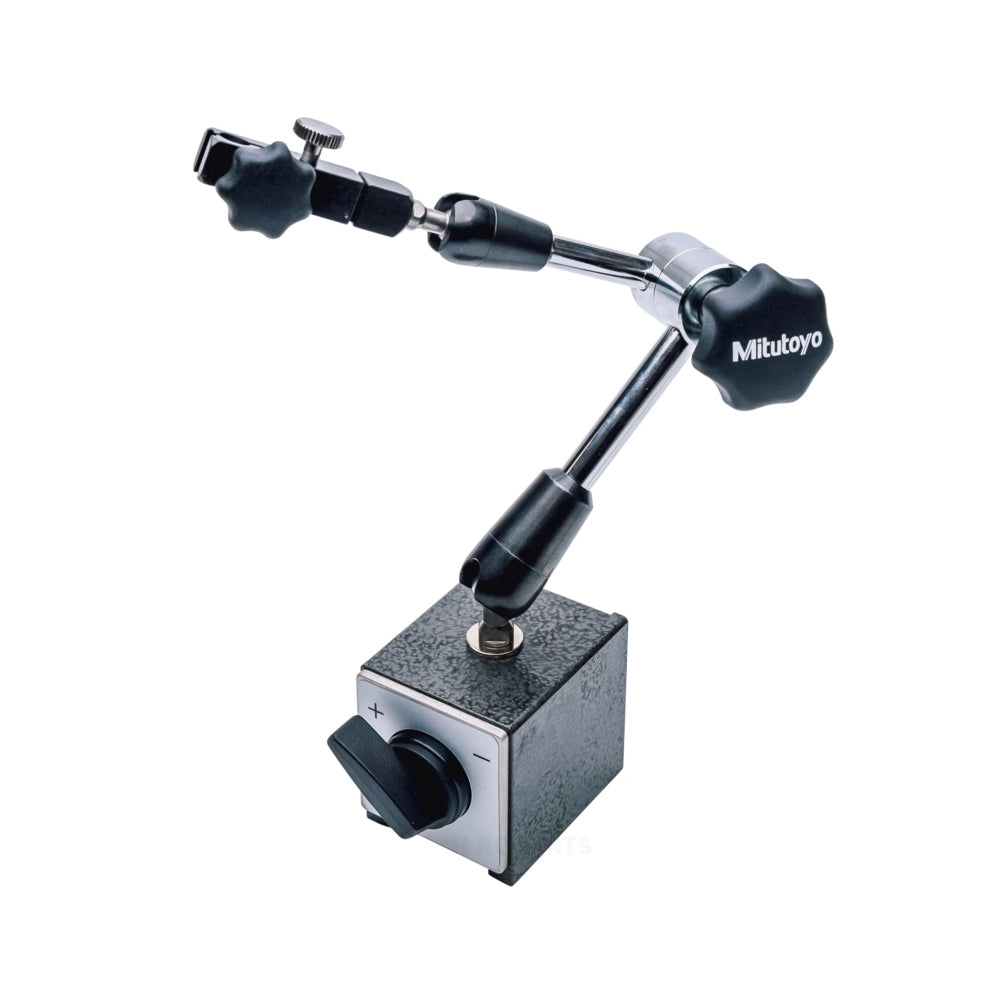

Mitutoyo 011358 Universal Magnetic Stand, 200mm Working Radius
SKU:Code: 011358
Sale
Sold out
Regular price
£232.50
Save: 25%
Sold out
Sale price
£232.50
Regular price
£310.00
Excl. VAT
This jointed magnetic stand offers you the following benefits: It comes with a mechanical locking system and allows fine adjustment. You can also fix a dial indicator in any position by mechanically clamping the articulated arm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- type Magnetic Stand
- mass 1.55kg
- remarks with fine feed wheel 1.3mm rotation
- base magnetic force Approx 750 N
- height Total Height 310mm
description
description
Mitutoyo’s magnetic stands clamp to iron or steel surfaces with a strong force and are indispensable for temporarily mounting a dial test indicator (or dial indicator) onto a machine tool or fixture for general alignment applications. A V-grooved base allows the stand to mount securely on cylindrical as well as flat surfaces. The magnetic clamping effect is conveniently switched on or off by a quarter turn of a lever

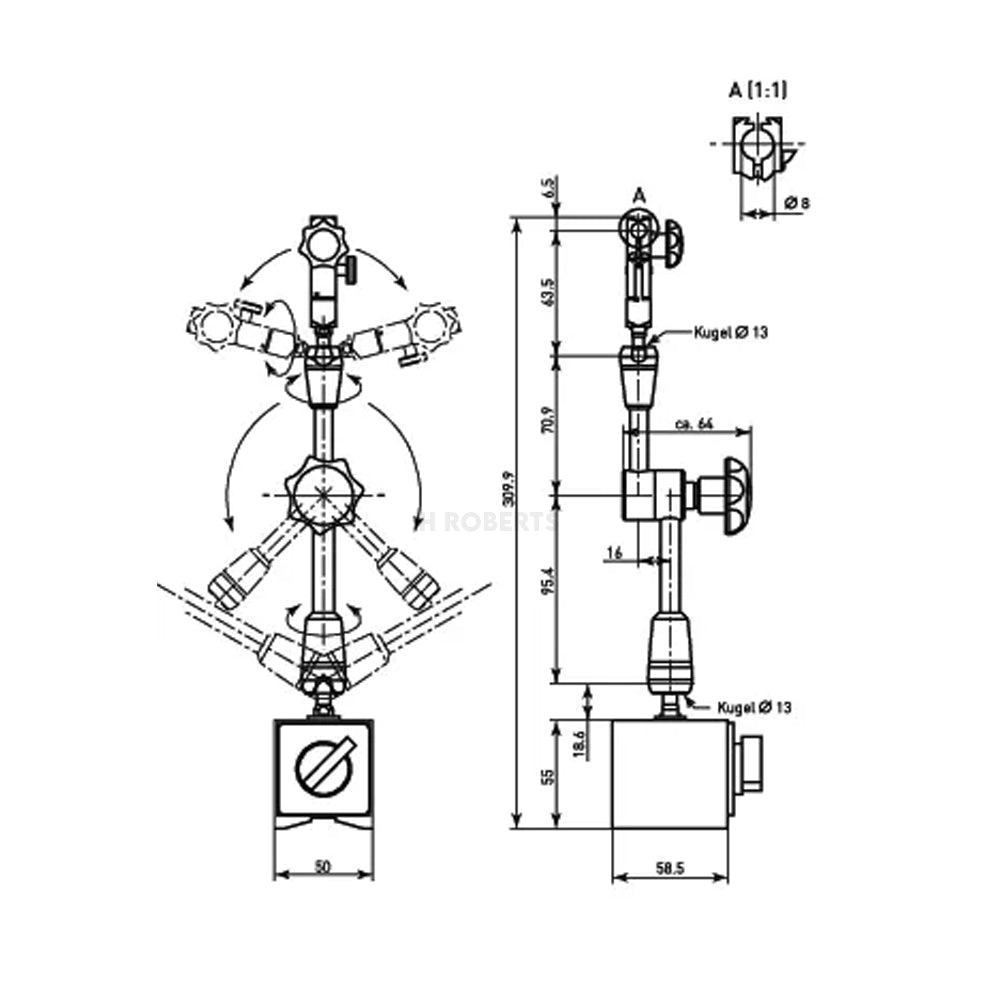

technical drawings
PDF downloads
accessories
