Images are for illustration purposes only - Products may differ.

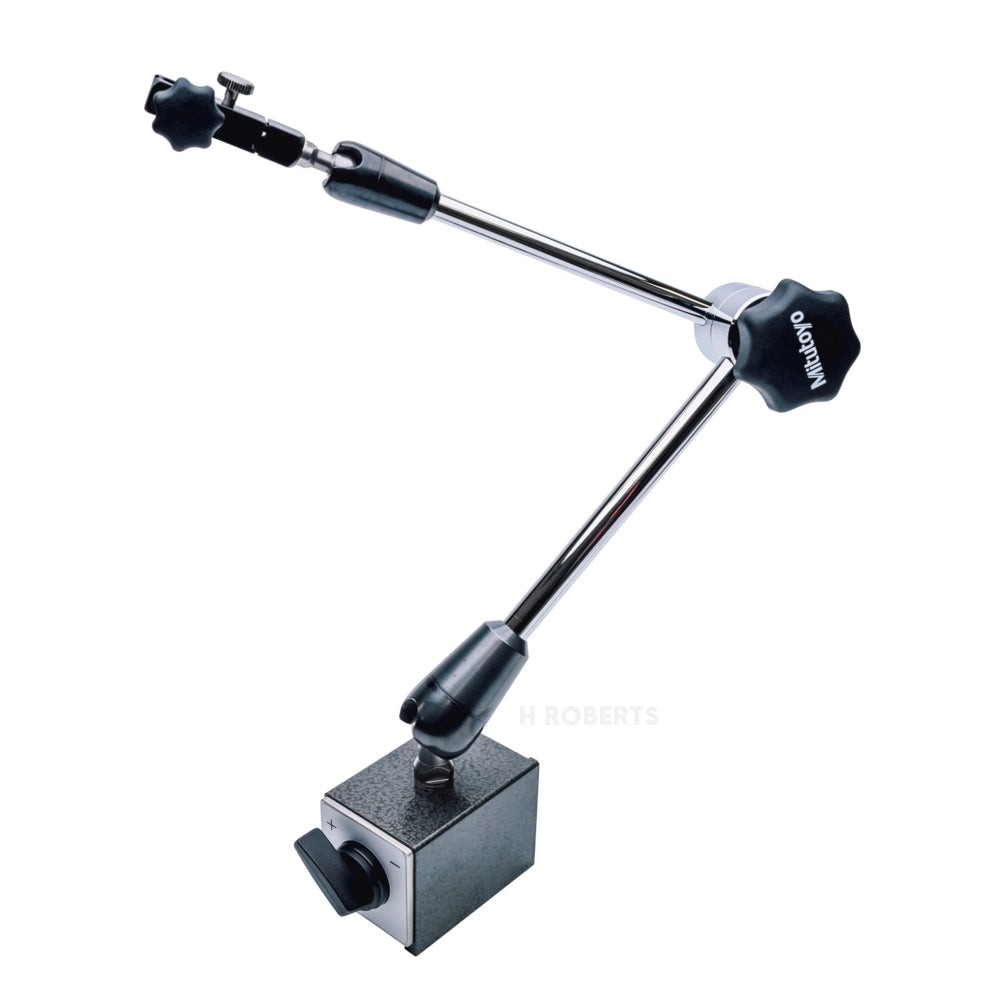

Mitutoyo 011360 Universal Magnetic Stand, 400mm Working Radius
SKU:Code: 011360
Sale
Sold out
Regular price
£306.75
Save: 25%
Sold out
Sale price
£306.75
Regular price
£409.00
Excl. VAT
This jointed magnetic stand offers you the following benefits: It comes with a mechanical locking system and allows fine adjustment. You can also fix a dial indicator in any position by mechanically clamping the articulated arm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- type Magnetic Stand
- mass 2.1kg
- remarks with fine feed wheel 1.3mm rotation
- base magnetic force Approx 900 N
- height Total Height 517mm
description
description
Mitutoyo’s magnetic stands clamp to iron or steel surfaces with a strong force and are indispensable for temporarily mounting a dial test indicator (or dial indicator) onto a machine tool or fixture for general alignment applications. A V-grooved base allows the stand to mount securely on cylindrical as well as flat surfaces. The magnetic clamping effect is conveniently switched on or off by a quarter turn of a lever

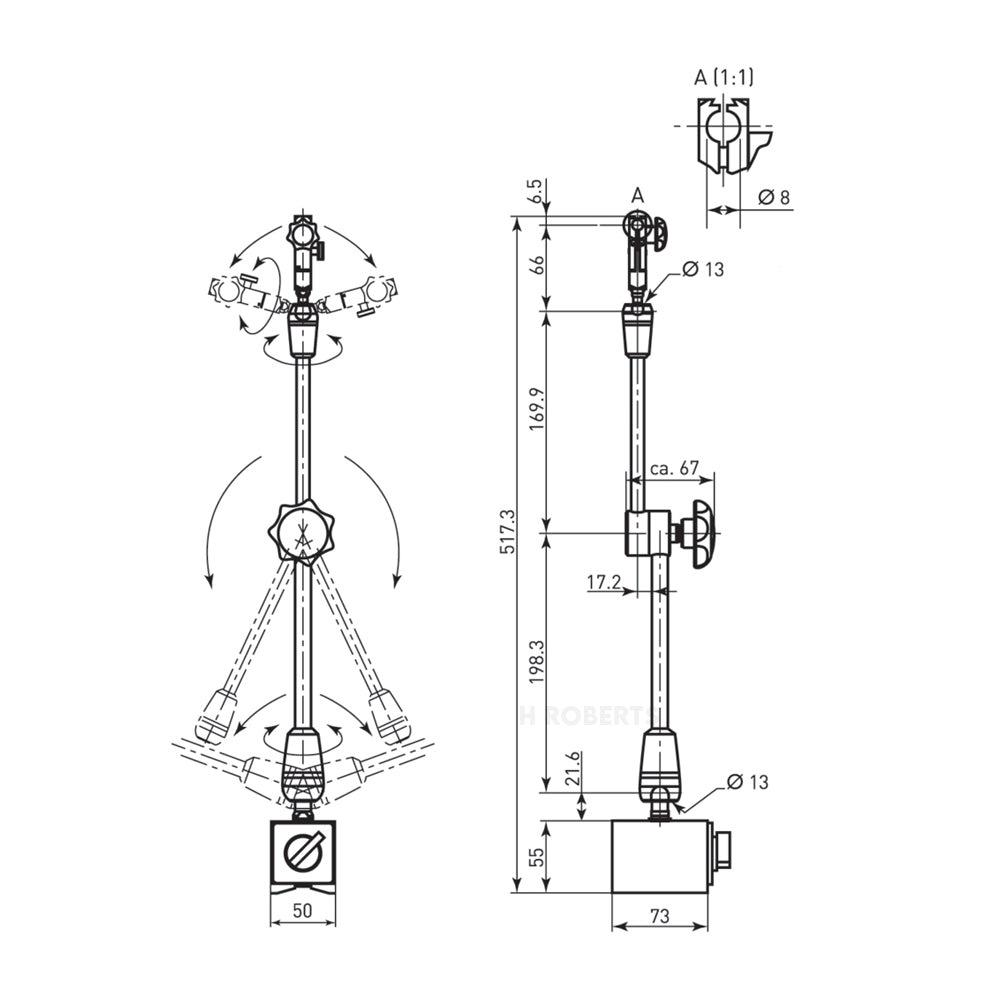

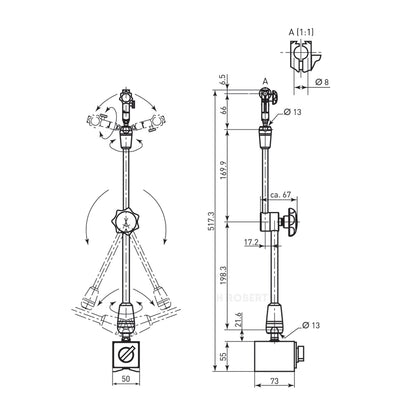

technical drawings
