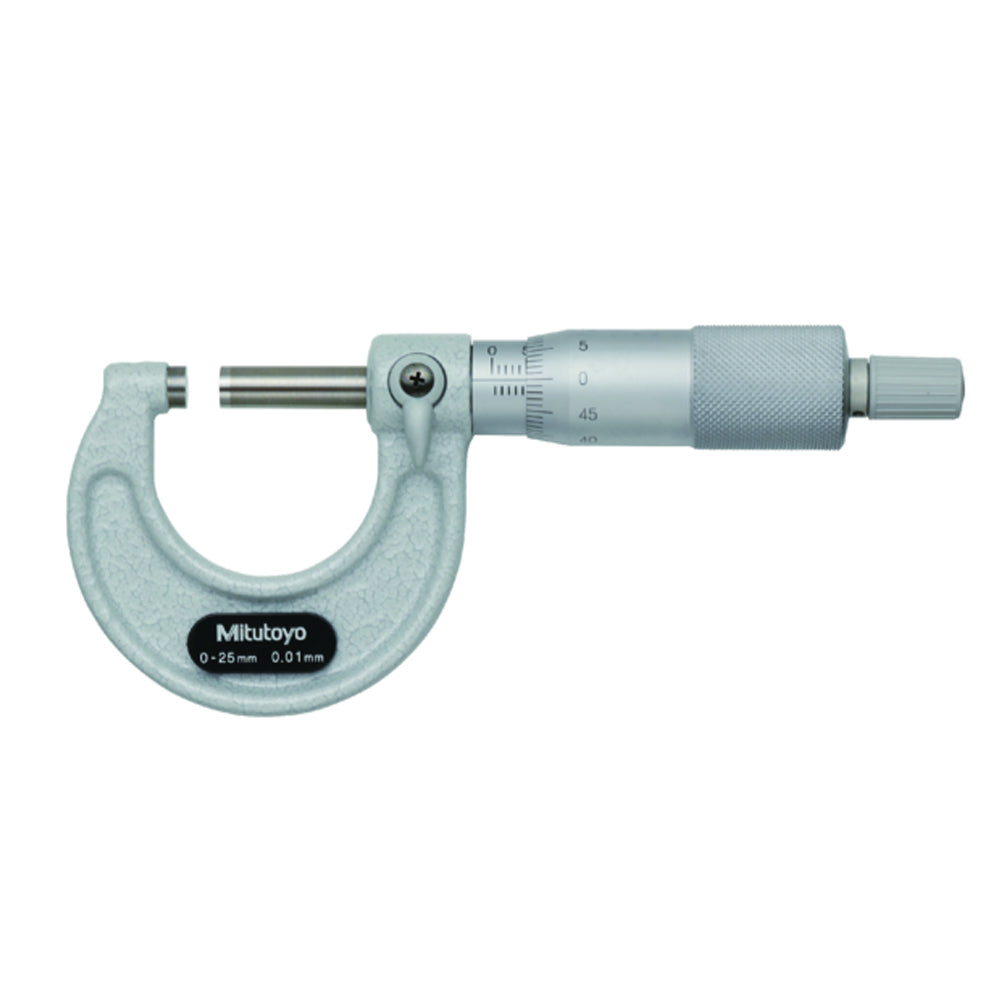

Mitutoyo 103-137 Micrometer, Range 0-25mm, Graduation 0.01mm
SKU:Code: 103-137
Sale
Sold out
Regular price
£40.00
Save: 30%
Sold out
Sale price
£40.00
Regular price
£56.90
Excl. VAT
A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-25mm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
- constant-force device Ratchet Stop
- measuring face Carbide Tipped
- brand Mitutoyo
description
description
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Range: |
0-25 mm
|
| Graduation: |
0,01 mm
|
| Max. Permissible Error J MPE: |
±2 µm
|
| Delivered: |
Including box, key, certificate of inspection
|
| Flatness: |
0,6 µm
|
| Parallelism: |
2 µm
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Measuring spindle: |
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5 - 10 N
|
| Mass: |
175 g
|
| L: |
30.3 mm
|
| a: |
2.8 mm
|
| b: |
9 mm
|
| c: |
28 mm
|
