Images are for illustration purposes only - Products may differ.

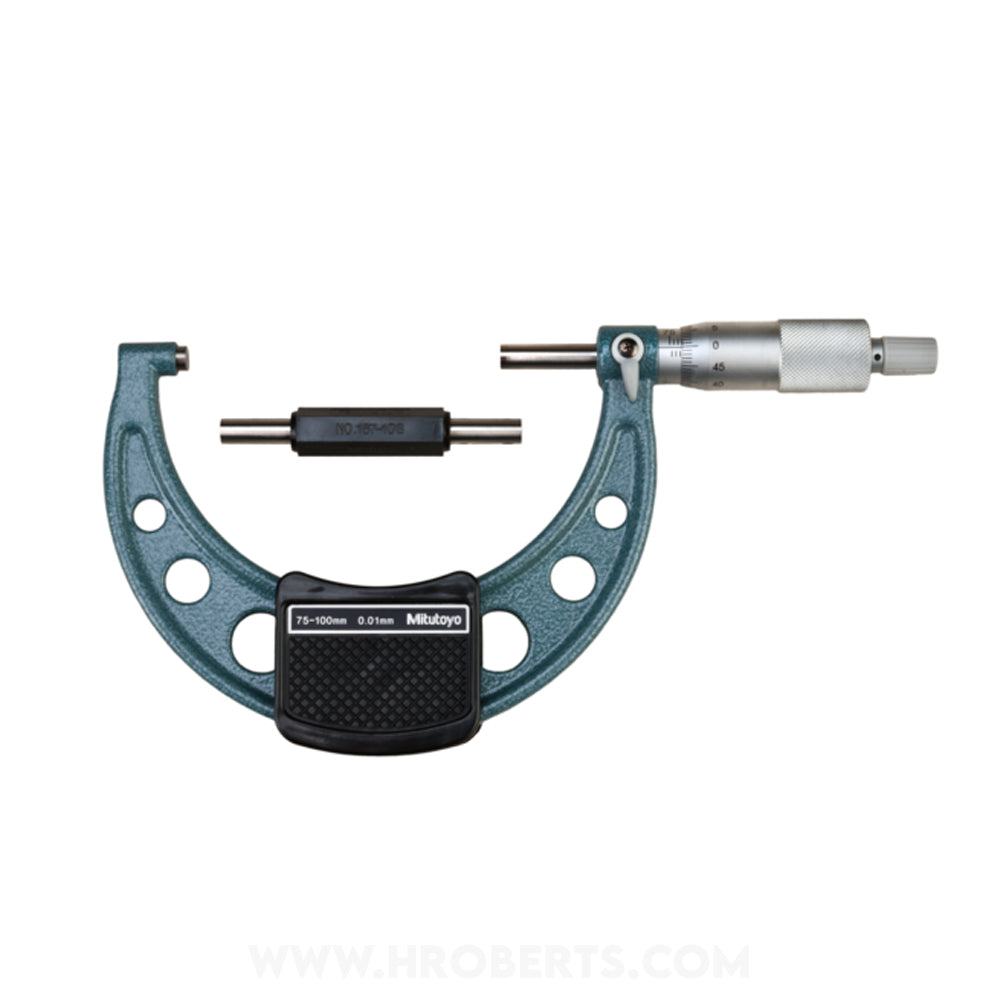

Mitutoyo 103-140-10 Micrometer, Range 75-100mm, Graduation 0.01mm
SKU:Code: 103-140-10
Sale
Sold out
Regular price
£89.25
Save: 25%
Sold out
Sale price
£89.25
Regular price
£119.00
Excl. VAT
A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
- type Standard
- range 75-100mm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
- constant-force device Ratchet Stop
- measuring face Carbide Tipped
description
description
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Range: |
75-100 mm
|
| Graduation: |
0,01 mm
|
| Max. Permissible Error J MPE: |
±3 µm
|
| Delivered: |
Including box, key, setting standard
|
| Flatness: |
0,6 µm
|
| Parallelism: |
3 µm
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Measuring spindle: |
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5 - 10 N
|
| Mass: |
375 g
|
