Images are for illustration purposes only - Products may differ.

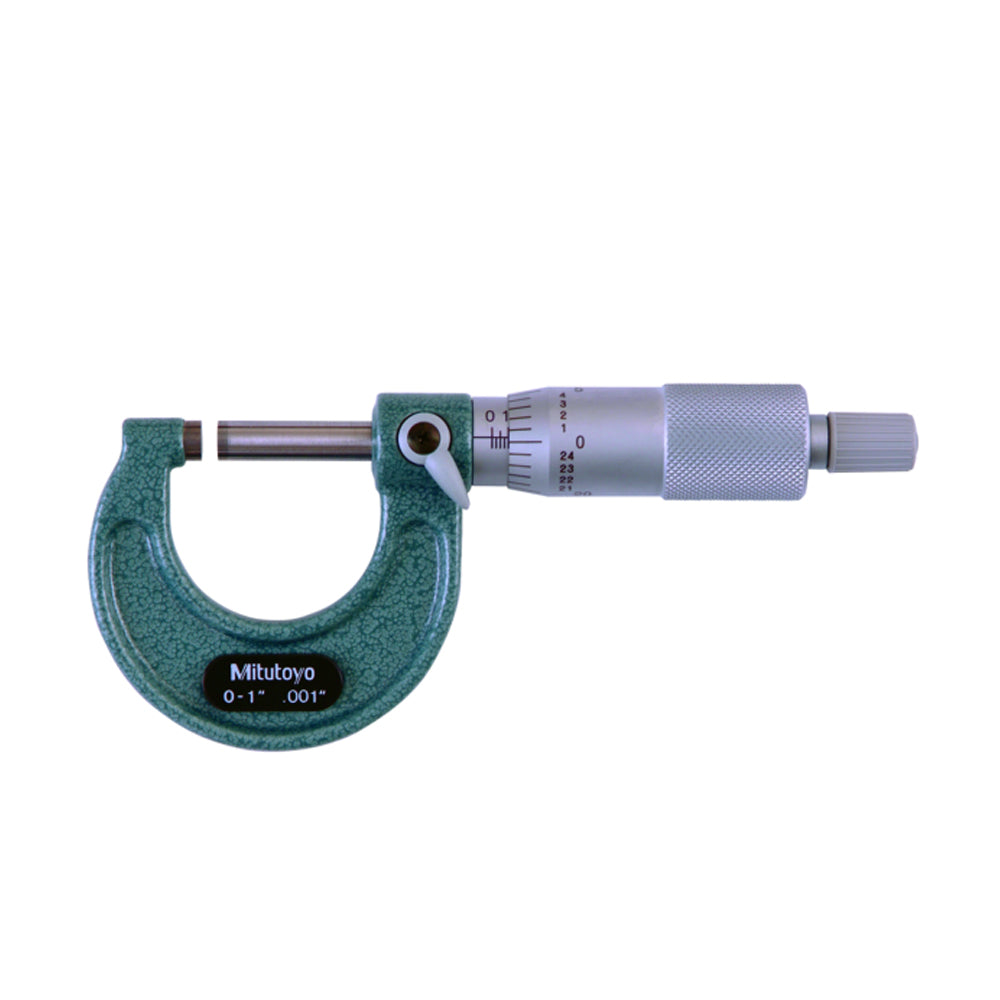

Mitutoyo 103-177 Micrometer, Range 0-1", Graduation 0.001"
SKU:Code: 103-177
Sale
Sold out
Regular price
£44.40
Save: 25%
Sold out
Sale price
£44.40
Regular price
£59.20
Excl. VAT
A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.
Possible alternatives
Micrometers
Mitutoyo 103-929 Micrometer Set, Range 0-3", Graduation 0.001" c/w Setting Standards
Regular price £225.75Sale price £225.75 Regular priceExcl. VAT£301.00
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
- type Standard
- range 0-1"
- display type Non-Digital
- graduations 0.001"
- measuring units Inch
- constant-force device Ratchet Stop
- measuring face Carbide Tipped
description
description
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Inch
|
| Range: |
0 - 1 "
|
| Graduation: |
0,001"
|
| Max. Permissible Error J MPE: |
±0.0001"
|
| Delivered: |
Including box, key, certificate of inspection
|
| Flatness: |
0,000024"
|
| Parallelism: |
0.00008"
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Measuring spindle: |
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5 - 10 N
|
| Mass: |
175 g
|
