Images are for illustration purposes only - Products may differ.

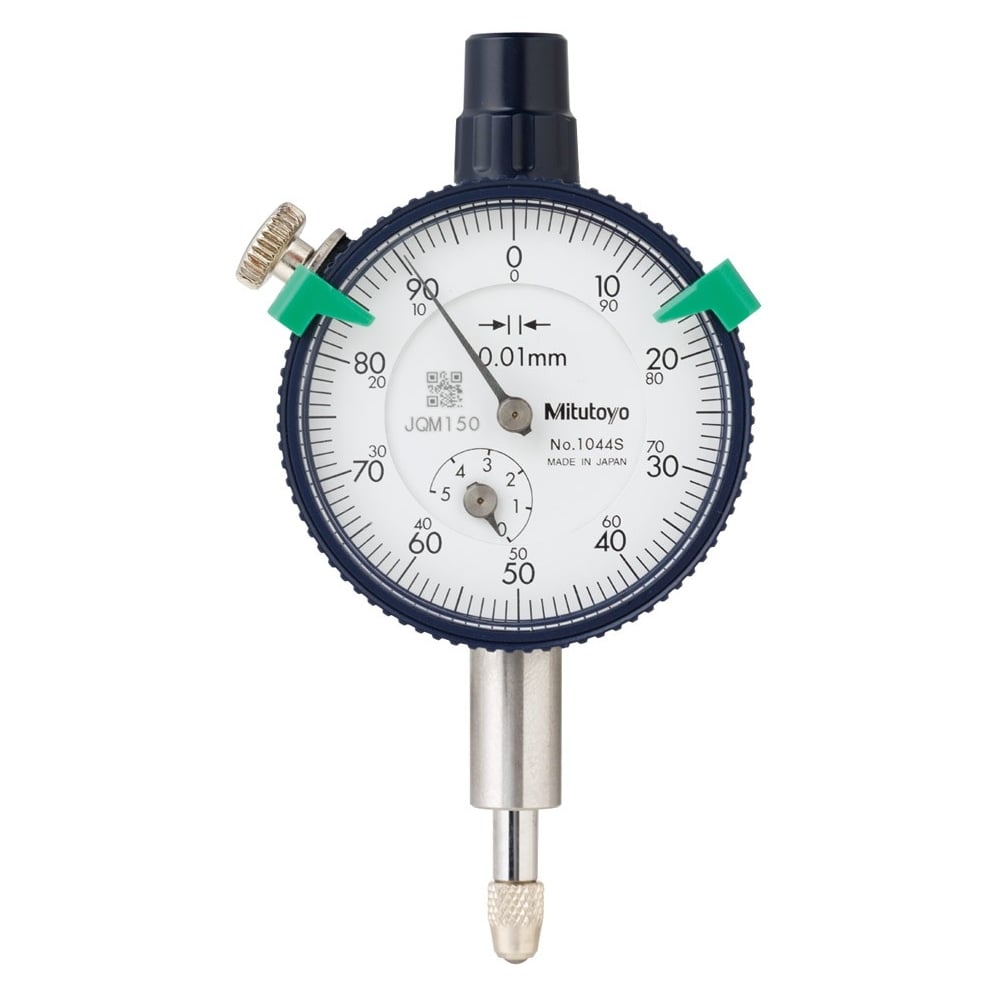

Mitutoyo 1044S Dial Indicator, Graduation 0.01mm, Range 5mm, Scale 0-100, Bezel Diameter 40mm

SKU:Code: 1044S

This item is no longer available or has been discontinued.

Series 1 Compact dial indicators ideal for restricted-space applications in gauging jigs. Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
View full details
Specification
  • type Dial Indicator
  • range 5mm
  • range rev 1mm
  • display type Non-Digital
  • graduations 0.01mm
  • bezel dia 40mm
  • measuring force 1.4 N or Less
  • measuring units Metric
  • stem dia 8mm
  • remarks Dial Gauge Series 1
  • scale 0-100
  • contact point thread M2.5 x 0.45
  • back Centre Lug
  • brand Mitutoyo
description

Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration. The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy duty use. A carbide contact point is used. Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.
