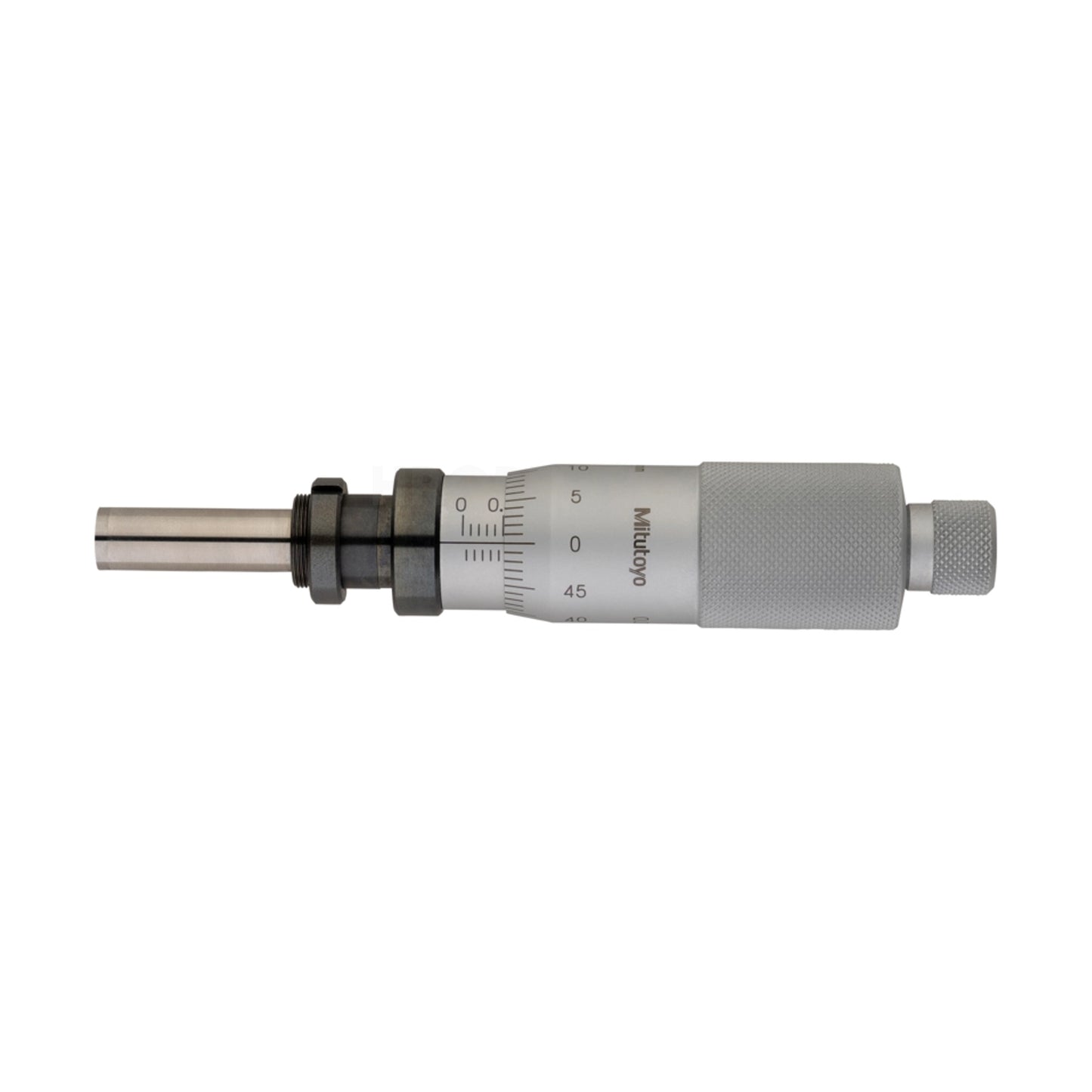

Mitutoyo 110-101 Differential Screw Micrometer Head, Range 0-2.5mm, Graduation 0.001mm
SKU:Code: 110-101
Sale
Sold out
Regular price
£231.75
Save: 25%
Sold out
Sale price
£231.75
Regular price
£309.00
Excl. VAT
The differential movement of spindle threads and nuts allows ultra-fine feed. Especially useful in precision translation type applications such as found in electronics component manufacture, optical alignment, etc.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Differential Screw
- range 0-2.5mm
- display type Non-Digital
- graduations 0.001mm
- measuring units Metric
- stem dia 12mm
- stem type Locknut
- remarks Standard
- max permissible errors ±5 μm / ±1.5 μm
- measuring face Carbide Tipped
- brand Mitutoyo
description
description
A high resolution, non-digital Mitutoyo micrometer head with M12 clamp-nut stem and heavy-duty Ø 8mm non-rotating spindle fitted with flat tungsten-carbide tip.
